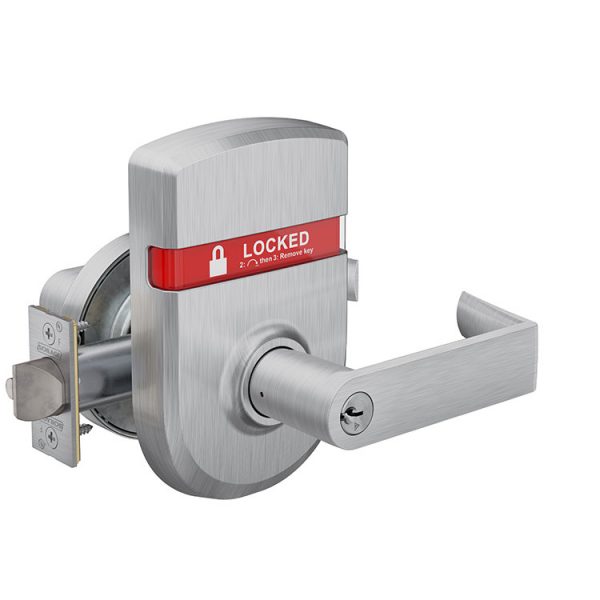

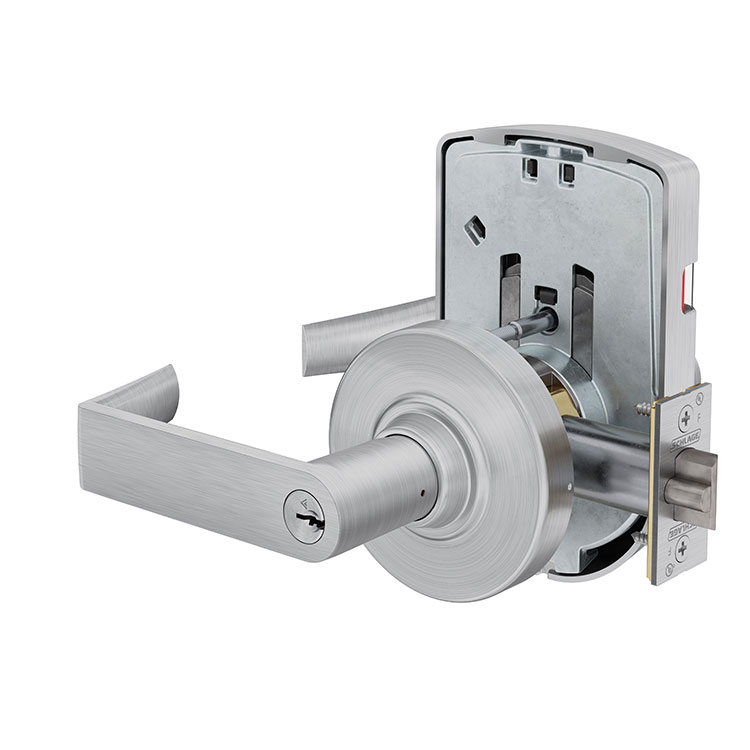

Schlage ND98PD RHO (Rhodes) Vandlgard Classroom Security Lever Lock (180 degree key rotation for lockdown) with IS-CRS (LOCKED/UNLOCKED) Inside Indicator Escutcheon Trim

Usually Ships: 20-30 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • Lock/unlock outside by key on either side – inside always unlocked

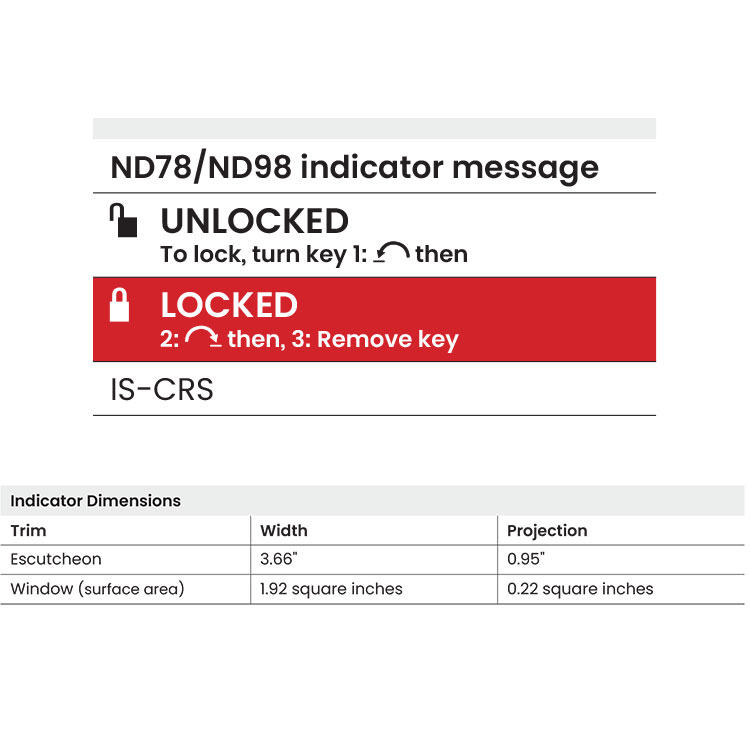

  • Includes inside indicator (LOCKED/UNLOCKED)

Available Options:

Product Overview

Schlage ND98PD RHO (Rhodes) Grade-1 Vandlgard Classroom Security Lever Lock (180 degree key rotation for lockdown) with IS-CRS (LOCKED/UNLOCKED) Inside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

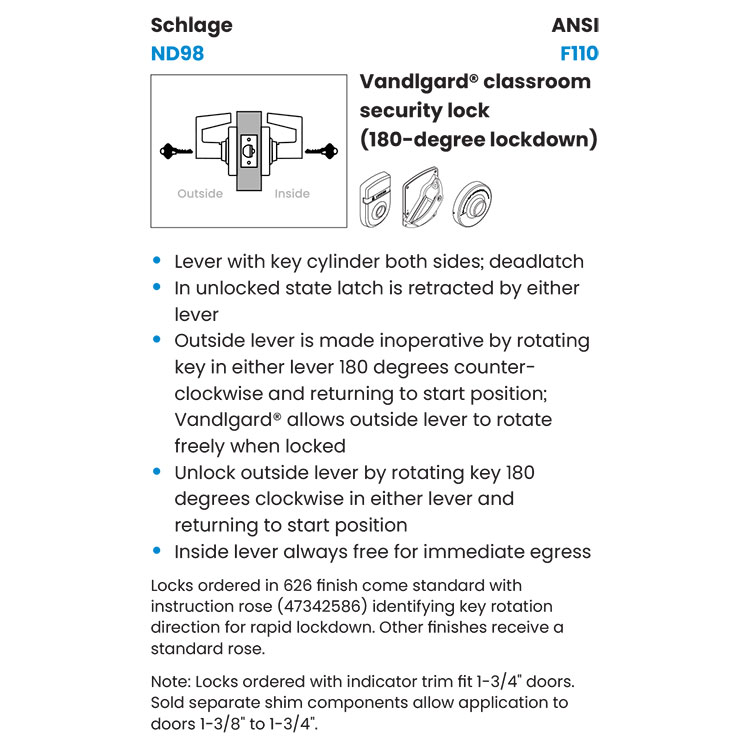

ANSI Function F110 – Lever with key cylinder both sides; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by rotating key in either lever 180 degrees counterclockwise and returning to start position; Vandlgard® allows outside lever to rotate freely when locked • Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position • Inside lever always free for immediate egress

Vandlgard locked lever protection. It allows the outside lever to rotate freely up and down when locked to limit the ability of vandals to apply excessive force to the chassis helping to prevent damage to internal components.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Classroom Security
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Handed – LH, RH
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Lever Design

RHO (Rhodes)
Clutch Lever

Yes
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions Schlage_ND_Series_Timing_Guide
