Securitech Trident TEL Multi-Point Exit Lock for Single Door Applications

Securitech Trident TEL Multi-Point Exit Lock for Single Door Applications, 4 Locking Points, Exit Only Model

Maximum Break-In Protection

Trident^™ Multi-Point Locks provide multi-point deadbolt locking with maximum, time-proven resistance to break-ins. Code-compliant, single-motion exiting retracts all moving bolts simultaneously, as opposed to the use of slide bolts, drop bars, padlocks, etc., which violate building and fire safety codes.

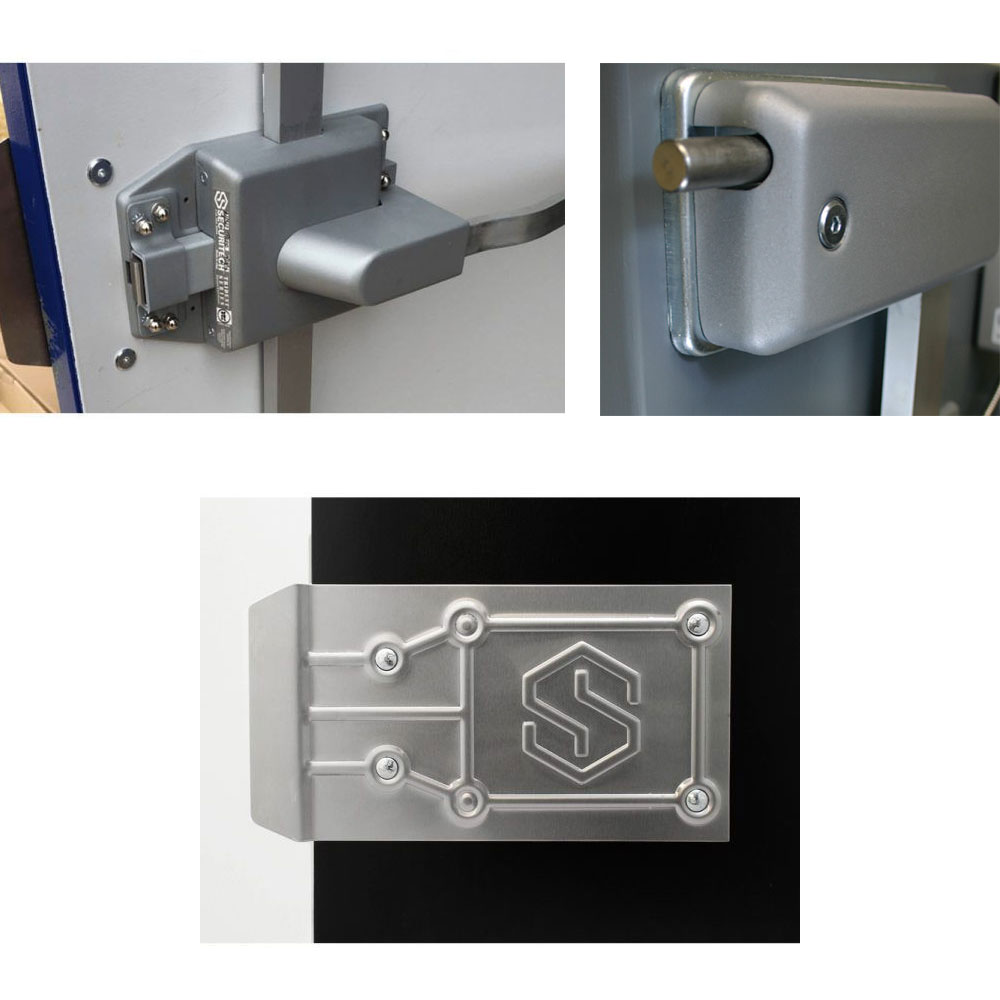

Offering maximum protection at the lock edge, the stainless steel deadbolts project one full inch into the frame. Also included is a hinge-side bolt that protects the door against hinge-side attacks. It is important to note that the Trident^™Multi-Point Lock’s bottom locking module bolts into the frame instead of into the floor. History has shown that bolting into the floor causes malfunctioning which results in numerous service calls. This is due to dirt, salt, or moisture accumulation clogging the floor bolt hole. The Trident^™ Multi-Point Lock overcomes weakness indoors with a large stainless steel anti-pry plate. All locking modules are all thru-bolted, including the stainless steel anti-pry plate.

Forced Entry Protection ■ Easy Installation ■ Maintenance-Free

• Superior protection against prying: Locking bolts located at pry points
• Bolts project into the frame: 3 horizontal locking points on lock side & standard one locking bolt on hinge side
• Comes standard with 4 locking points: Add more hinge bolts as needed
• Stainless steel, 1-1/4” tall main locking bolt: 5/8” Dia. 7” long auxiliary bolts
• 1” bolt projection – all bolts: Auxiliary bolts are free-spinning to prevent from cutting
• Stainless steel anti-pry plate: Thru-bolted at 6 locations
• Installation in under 2 hours

Locking Styles

• Manual Locking: Lock by pulling the paddle when the door is in the closed position
• Self-ReLocking: The door locks itself each time it closes (door closer required, sold separately)

Alarm Options (mortise cylinder required, sold separately)

• 9 Volt Battery Alarm (mortise cylinder required, sold separately)
• 110v Direct Power Alarm (mortise cylinder required, sold separately)

Certifications

• Fire Rated Models are Warnock Hersey (WH-ETL) Listed as Fire Exit Hardware for up to 3 hrs per UL10C, UBC 7-2
• Warnock Hersey Verified Exit Lock and Exit Device
• Miami-Dade Component Approval rated +/-100 PSF Design Pressure and Large Missile Impact
• FBC Statewide Approval FL14075 for High-Velocity Hurricane Zones, Includes Large Missile Impact (doors 4’ x 8’)

Models: TEL-100, TEL-110, TEL-120, TEL-200, TEL-210, TEL-220, TEL-200F, TEL-210F, TEL-220F
