Securitron M38 Magnalock Electromagnetic Lock, 600lb Holding Force

Usually Ships: 2-3 Business Days
  • For single interior doors
  • Surface mounts easily with mounting bracket
  • 600 lbs. holding force

Available Options:

Clear

Securitron M38 Maglock, 600lb Holding Force, Bracket Mount, 12/24VDC – US28/628 (Satin Aluminum Clear Anodized)

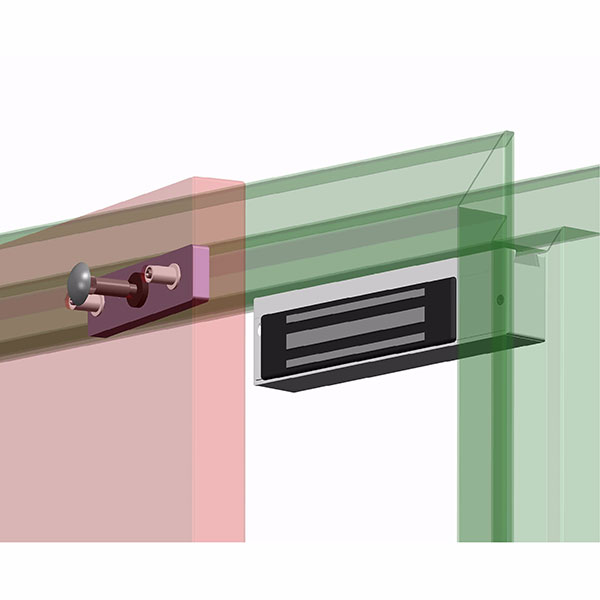

Easily installed, bracket mounted Magnalock for interior applications

The Securitron M38 is a 600 lbs. holding force Magnetic lock with automatic dual voltage. This model offers a built-in wire access chamber and bracket mount design for a unique and simplified method of installation. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.

Features

  • Patented instant release circuit – no residual magnetism
  • Surface mounts easily with mounting bracket using minimal tools
  • Internal wire access chamber
  • Mounted using steel machine screws into blind finishing nuts
  • Brushed aluminum finish
  • All ferrous metal surfaces plated to MIL specification
  • Automatic dual voltage – no field adjustment required
  • Lock options include door position switch
  • UL Listed

Models: M38, M38D

Brand

Finishes

US28 (628) Anodized Aluminum

Electrical

Current 12v DC (mA) : 325, Current 24v DC (mA) : 175, Voltage : 12/24

Holding Force

Up to 600 lbs.

Monitoring

Optional: D Integrated DoorPosition Switch (DPS)

Fire Rating

ANSI/UL 10C Listed, 3 hour rated
