Select SL14 HD600 Heavy Duty Concealed Geared Continuous Hinge with Narrow Frame Leaf

Usually Ships: 2-3 Business Days

Flush mounted (no door inset)
UL listed, fire-rated
Narrow frame leaf allows for weatherstrip or smoke seal

Available Options:

Finish

Length

Clear

Quantity:

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

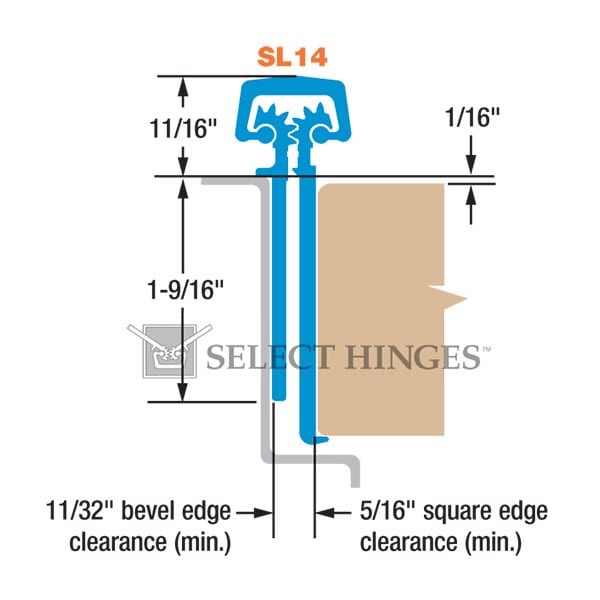

Narrow frame leaf allows for weatherstripping or smoke seal. Door edge protector. 1/16″ door inset. For 1-3/4″ doors.

SL14 HD600 geared continuous hinges are BHMA Grade 1 certified.

Lifetime lubrication
Anodized after machining
Consistent templating

Brand	Select
Finishes	Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum
Length	83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Material	Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
Load / Frequency	For 1-3/4" doors, 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Heavy Duty 600 — For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
Usage	Heavy Duty
ANSI/BHMA Standard	ANSI/BHMA A156.26-2006 Grade 1
Fire Rating	All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost
Continuous Hinge Type	Full Mortise (Concealed)
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
