Select SL200 Heavy Duty Pin & Barrel Concealed Continuous Hinge

Usually Ships: 2-3 Business Days

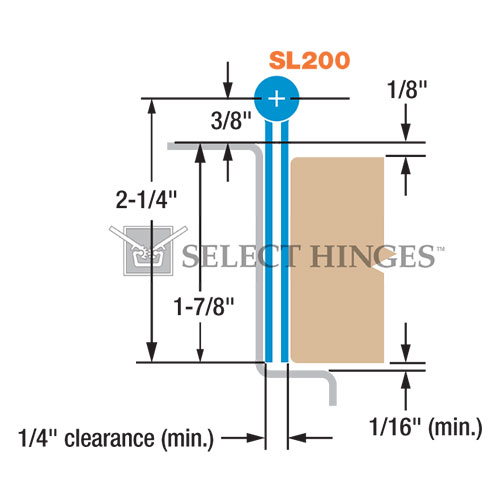

  • 1/8″ door inset, for 1-3/4″ thick doors
  • Zinc-plated carbon steel
  • Supports weights up to 600lbs

Available Options:

Clear

Product Overview

CONCEALED EDGE MOUNT on 1-3/4″ doors up to 600 lb. (max. 48″ door width). No mortise required. For new construction or renovation/retrofit.

  • Zinc-plated carbon steel
  • 1/8″ door inset
  • For 1-3/4″ doors weighing up to 600 lb., 48″ max. door width.
  • SL200 pin & barrel continuous hinges are BHMA Grade 1 certified.
  • Templated hole pattern
  • 3-hour fire-rated

Brand

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Finish

Zinc Plated
Material

Zinc plated carbon steel
Load / Frequency

For 1-3/4" doors, 48" wide (max.), weighing up to 400 pounds (medium-frequency) without frame or door reinforcement; up to 600 pounds (lowfrequency) without frame or door reinforcement.
ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1
Fire Rating

3 Hour Fire-rated
Continuous Hinge Type

Full Mortise (Concealed)
Usage

Heavy Duty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
