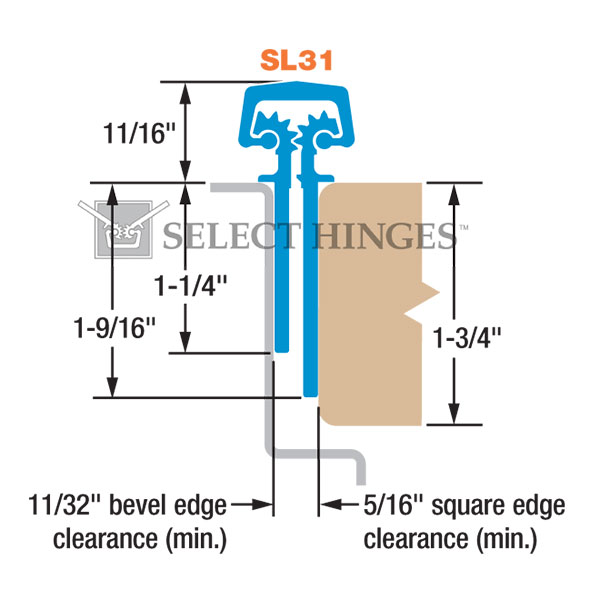

Select SL31 HD600 Heavy Duty Concealed Geared Continuous Hinge

Usually Ships: 2-3 Business Days
  • Flush mounted (no door inset)
  • Short frame leaf allows for removable stop applications
  • Supports weights up to 600lbs

Available Options:

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

  • Flush mounted (no door inset)
  • For 1-3/4″ doors
  • SL31 HD600 geared continuous hinges are BHMA Grade 1 certified
  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

Load / Frequency

For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Tested per BHMA standards. Heavy Duty 600 — For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.

ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1

Fire Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost

Continuous Hinge Type

Full Mortise (Concealed)

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
