Select SL38 SD Standard Duty Concealed Geared Continuous Hinge for 1″ to 1-3/8″ Thick Doors

Usually Ships: 2-3 Business Days
  • Flush mounted (no door inset)
  • For 1″ to 1-3/8″ thick doors
  • Supports weights up to 200lbs

Available Options:
Clear

Product Overview

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

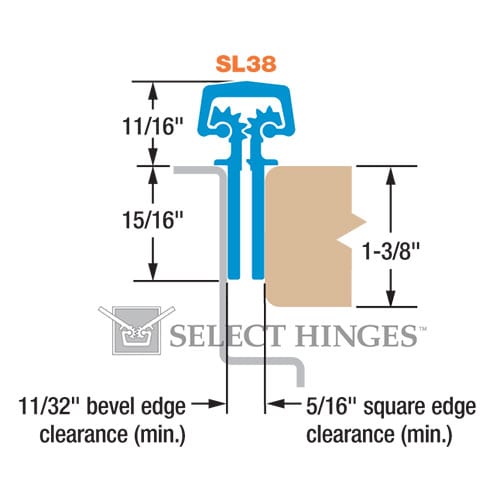

For 1″ to 1-3/8″ doors. Flush mounted (no door inset).

  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Clear Anodized Aluminum, Dark Bronze Anodized Aluminum
Length

83" (for 7'0" door), 95" (for 8'0" door)
Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
Load / Frequency

For 1" to 1-3/8" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Standard Duty – Tested per BHMA standards for medium-frequency doors up to 200 lb. without frame or door reinforcement.
Usage

Standard Duty
Continuous Hinge Type

Full Mortise (Concealed)
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
