Trine 002 Light Commercial Electric Strike

Usually Ships: 1-2 Business Days

For use with cylindrical locks with up to a 5/8″ throw
Fail secure standard (unlocks with power)
For use in metal or wood frames

Available Options:

Finish

Voltage

Clear

Quantity:

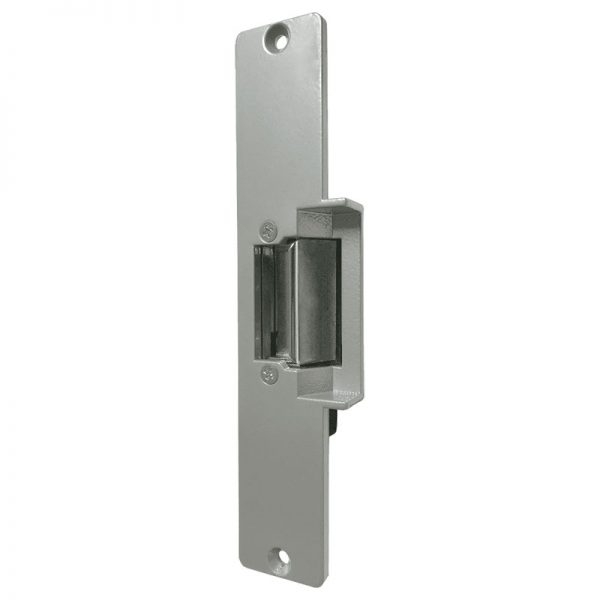

Trine 002/001DB Electric Strike, Fail Secure, 7-15/16″ x 1-7/16″ Faceplate

For use in new or replacement installations in wood and metal jambs Auxiliary lever ramps, or use with locksets which contain dead locking levers. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Durability – 500,000 Life Cycles
Holding Force – 1000 lbs
Only 1 Moving Part Locking Mechanism
Non-Handed Operation
Heavy Duty Latch Spring
Fail Secure Standard (Unlocks with Power)
Available Finishes: 002 (Aluminum Powder Coated) — 002DB (Dark Bronze Powder Coated)

Face Plate 7-15/16” x 1-7/16” — Auxiliary Ramp 2-7/8” — Mortise Backset 1-9/16” — Cavity Depth 1/2” — Cavity Width 9/16” — Cavity Height 1-1/2”

Models: 002-8-16VAC, 002-12DC, 002-24AC, 002-24DC, 002DB-8-16VAC, 002DB-12DC, 002DB-24AC, 002DB-24DC

Brand	Trine
Finishes	DKBZ Dark Bronze Powder Coat, AL Aluminum Powder Coat
Usage	Light Duty
Lock Type Compatibility	Cylindrical Lock
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
