Trine 234FX-375 – 3000 Series Electric Strike Faceplate, 2-3/4″ x 1-1/8″, 3/8″ Extended Lip

Trine 234FX-375 – 3000 Series Electric Strike Faceplate, 2-3/4″ x 1-1/8″, 3/8″ Extended Lip, For Timely Frames (or similar) Application

Standard ANSI prep features an extended ramp to accomodate additional frame face of Timely or RediFrame. Ramp is extended 3/8″. For new or replacement installations. Use with cylindrical locksets and deadlatches having up to 5/8″ throw, based on 1/8″ door gap.

• Match with any 3000 Mechanism: 3012, 3024, 30LC, 30RS

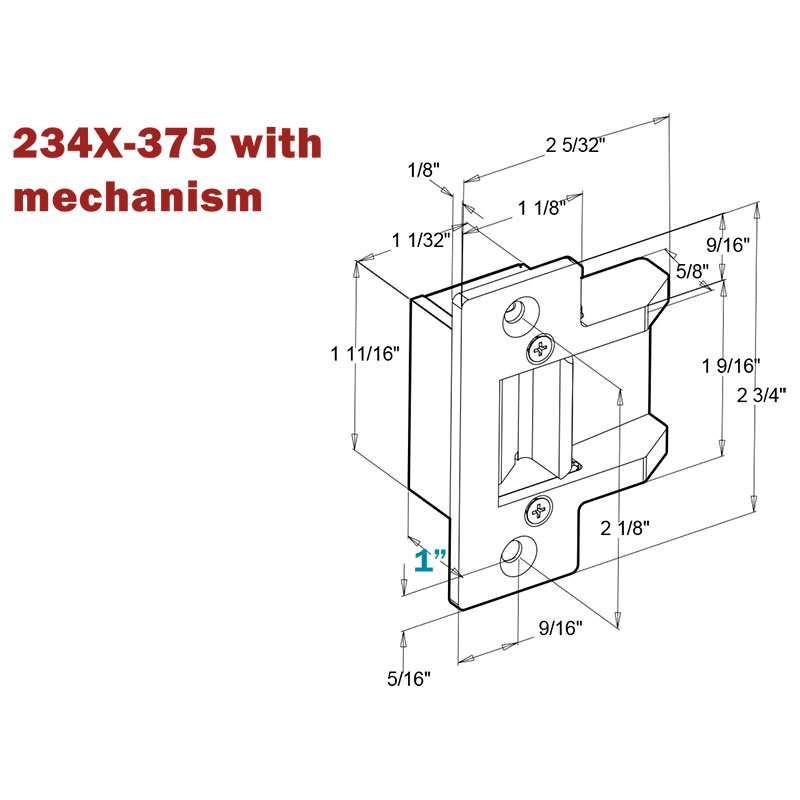

• ANSI 2 3/4″ Standard • Face Plate 2-3/4″ x 1-1/8″ • Mortise Backset 1″ • Cavity Depth 1/2″ • Cavity Width 5/8″ • Cavity Height 1 1/8″
• Ramp is extended 3/8”
• Smallest faceplate for your Timely Frames installation
• Grade 1 Faceplate
• 80% less cutting of the frame
• Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any 3012, 3024, 30LC or 30RS mechanism
