Trine 30RS – 3000 Series Electric Strike Body, 12/24VAC/DC, Fail Safe

$133.56

Usually Ships: 1-2 Business Days
  • Electric strike body only (faceplates sold separately)
  • For use with cylindrical locksets, up to 5/8″ latchbolt
  • Installs in metal, aluminum, or wood frames

Trine 30RS 3000 Series Electric Strike Mechanism, 12/24VAC/DC, Fail Safe

The small 3000 series strikes pack a powerful punch. A Grade 1 Mechanism with up to 1,500 lbs of holding force. This is the most powerful strike you can get, a Grade 1 electric strike with just a 1″ total backset installation could not be easier. Consider installing the smallest electric strike series in the world in any tight installation. Any doorfront glass and aluminum situation, or when frame material is extremely difficult to cut, such as concrete filled steel.

  • Grade 1
  • 500,000 + life cycles
  • 1,500 + lbs. holding force (1,200 lbs. for 334)
  • Dynamic Force 70 ft/lb.
  • Solid stainless steel latch and in the device body
  • Accepts a bolt with a up to 5/8″ throw
  • Non-handed Unit (except 458, 478 LO/RO)
  • Fail safe – “RS” (locks with power)
  • Mechanism spacers increase cavity depth up to 1/8″
  • Line Condition (LC100) allows 11 thru 29 AC/DC Voltage input — with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) – must use LC100

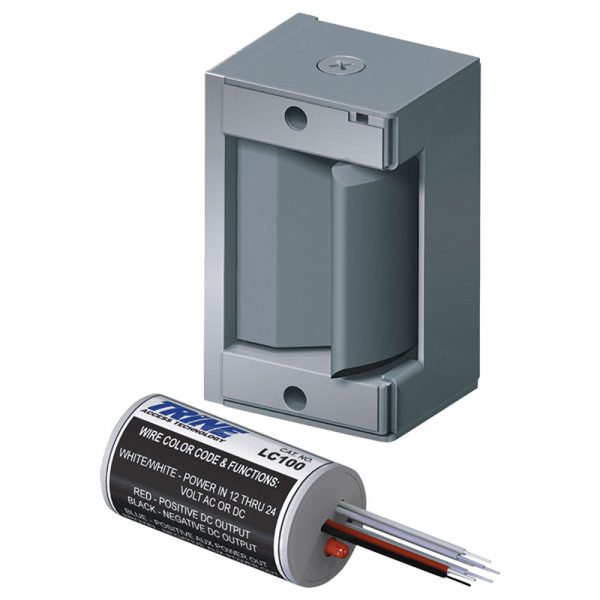

LC100 – (Round unit; Updated in 2010):

This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-29 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used and installed within 15′ of the mechanism.

NOTE: the ‘square’ LC100’s are older units, are all prior to the 2010 upgrade. They do not contain the new features

Brand

Finishes

ALUM Aluminum

ANSI/BHMA Standard

ANSI/BHMA A156.31, Grade 1

Usage

Standard Duty

Voltage

12/24VAC/DC

Lock Type Compatibility

Cylindrical Lock, Deadlatch

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
