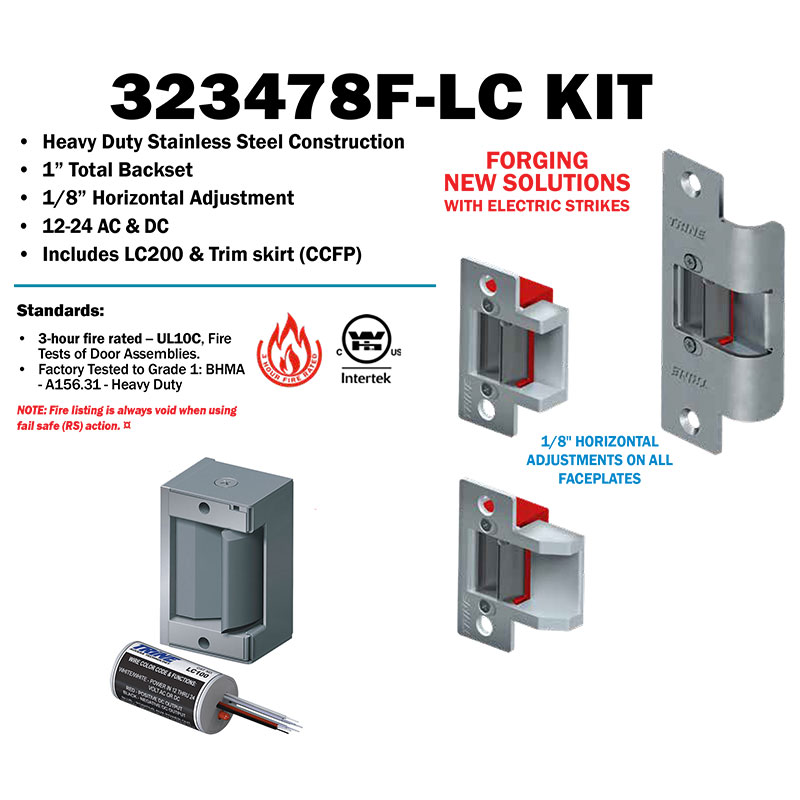

Trine 323478F-LC Fire-Rated Electric Strike Kit For Cylindrical Locks

Trine 323478F-LC 3000 Series Electric Strike Kit For Cylindrical Locks, Fire-Rated, Fail Secure

THE SMALLEST FIRE-RATED ELECTRIC STRIKE IN THE WORLD

The fire-rated cylindrical and deadlatch electric strike solution.

The smallest fire-rated electric strike solution that goes where other electric strikes cannot. Features the patented horizontal adjustment feature — Guaranteed not to move — to both the small and tall faceplates. This is the “do more” and “cut less” electric strike you’ve been looking for.

This electric strike contains the standard 478 faceplate with a 1-7/8″ ramp – for the kit with the Extended 478X with a 2-1/4″ ramp go to: 323478FX-LC Electric strike

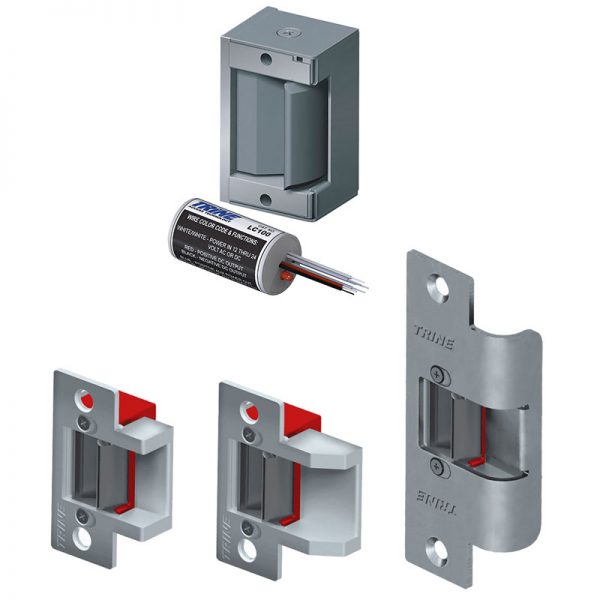

• Includes:
  • One (1) 234-234X Adjustable Faceplate
  • One (1) 478-32D Faceplate
  • One (1) 30LC Fire Rated Mechanism
  • One (1) LC100 Line Conditioner
  • One (1) 478-CCFP (Competitor Filler Plate)
• Grade 1 Electric Strike — heavy duty construction, 500,000 + life cycles
• 3-hour fire rated — UL10C, Fire Tests of Door Assemblies
• 1/8″ Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.
• 12-24 AC and DC – Surge and Kickback protection included.
• All solid stainless construction.
• Solid stainless steel latch and locking mechanism
• Installs in metal, aluminum, or wood frames
• Fail secure – standard action (unlocks with power)
• Accepts up to 5/8” latch throw

LC100:

This electric strike utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15′ of the mechanism.
