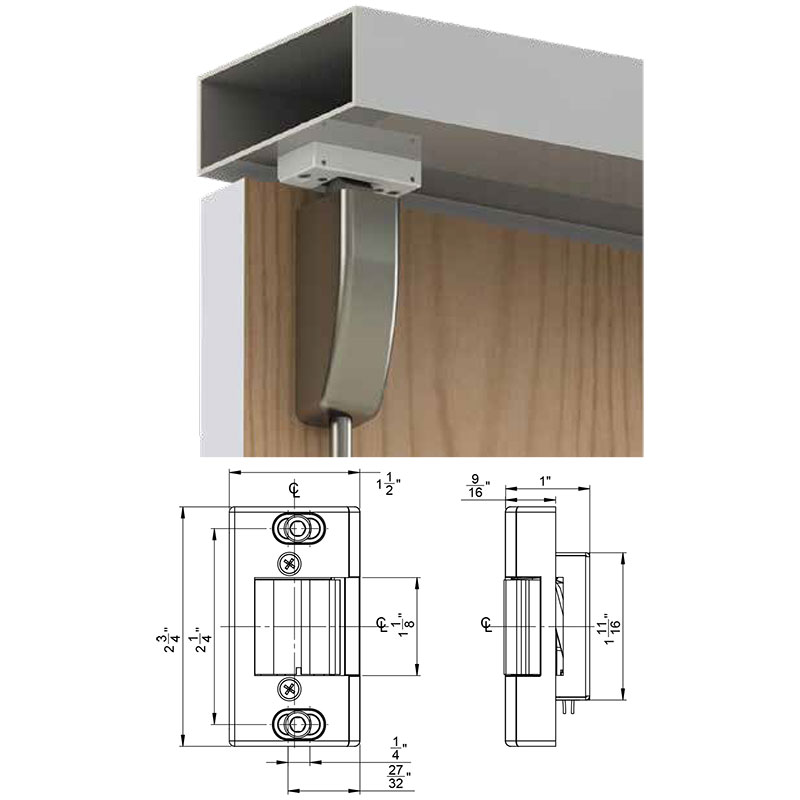

Trine 3275VRP-LC Electric Strike for Vertical Rod Exit Devices

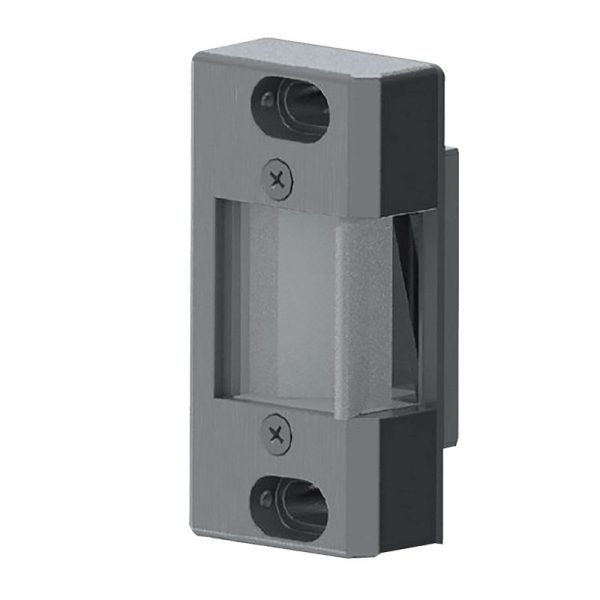

Trine 3275VRP-LC 3000 Series Electric Strike for Vertical Rod Latches, Fail-Secure

THE VERTICAL ROD SOLUTION

The Vertical Rod solution utilizes the reliable 3000 series mechanism to offer the smallest solution on the market for vertical rods.

• Includes Trine’s 4-pin patented anchoring pin system
• Metal installation template included for faster more accurate installation
• 1/16″ spacer plate provided
• 1/8″ Horizontal Adjustment
• Tested to Grade 1 Specification for Electric Strikes – Heavy Duty
  – 500,000 + life cycles
  – Solid stainless steel latch and locking mechanism

Works with these vertical rod devices:

• Sargent 97/68
• Arrow 3700/S1150/600
• Cal-Royal 9860V/F9860V
• Town Steel ED1200F
• Von Duprin 33/35
• Von Duprin 98/99 (Without the Deadlocking option – Von Duprin Latches without the deadlock are available and easy to replace on the door)

LC100:

This electric strike utilizes an external line conditioner (LC100) module to regulate input voltages, 11-28 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection. LC100 must be used within 15′ of the mechanism.
