Trine 478 – 3000 Series Electric Strike Faceplate, 4-7/8″ x 1-1/4″

Usually Ships: 1-2 Business Days
  • Faceplate only, for use with 3000 Series strike body
  • For use with cylindrical locksets up to 5/8″ throw
  • For new or replacement installations in wood, metal or aluminum frames

Available Options:

Trine 478 – 3000 Series Faceplate, 4-7/8″ x 1-1/4″

For new or replacement installation in wood, metal, or aluminum frames. Use with cylindrical locksets having up to 5/8” throw, based on 1/8” door gap. 60% LESS CUTTING of Frame Face for ANSI 4 7/8” pre-prep frames.

  • Match with any 3000 Mechanism: 3012, 3024, 30LC, 30RS
  • ANSI A115.1 slight frame modification

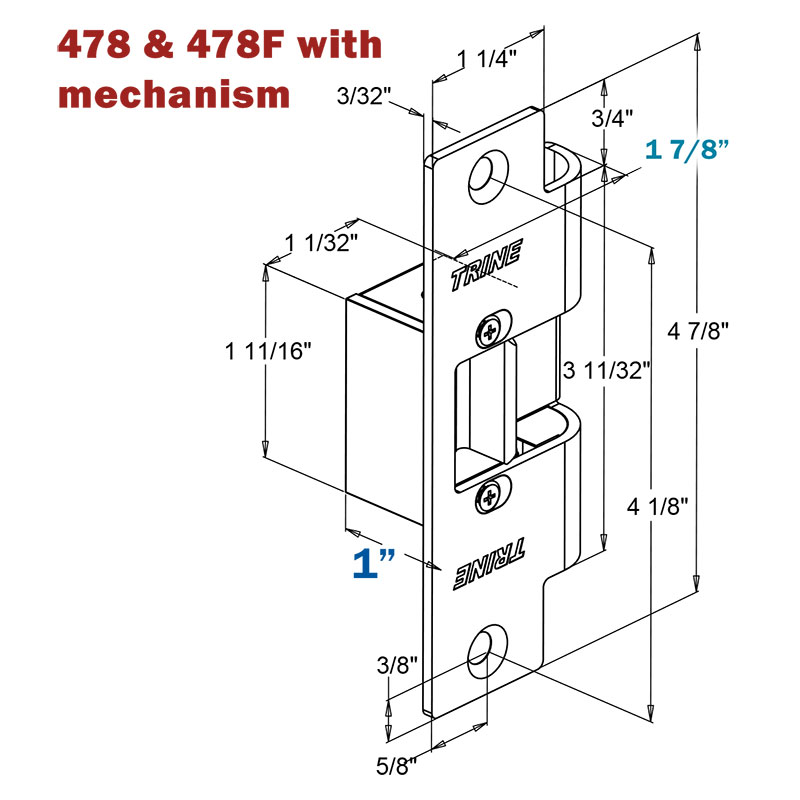

  • Face Plate 4-7/8″ x 1-1/4″
  • Mortise Backset 1″ • Cavity Depth 1/2″ • Cavity Width 5/8″ • Cavity Height 1 1/8″
  • No ugly black ramps!
  • This faceplate as been upgraded with a 1/8” Horizontal adjustment feature
  • 60% less cutting of the frame.
  • Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any 3012, 3024, 30LC or 30RS mechanism
Brand

Finishes

Dark Bronze Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US26D (626) Satin Chrome, US32 (629) Bright Stainless Steel

Faceplate

4-7/8" x 1-1/4"

Lock Type Compatibility

Cylindrical Lock

Part Type

Electric Strike Faceplate

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
