Trine 4800F Fire-Rated Surface Mounted Electric Strike For Rim Exit Devices

Trine 4800F Fire-Rated Surface Mounted Electric Strike for Rim Exit Devices, 12-24VAC/DC

The fire-rated electric strike solution for rim panic exit devices

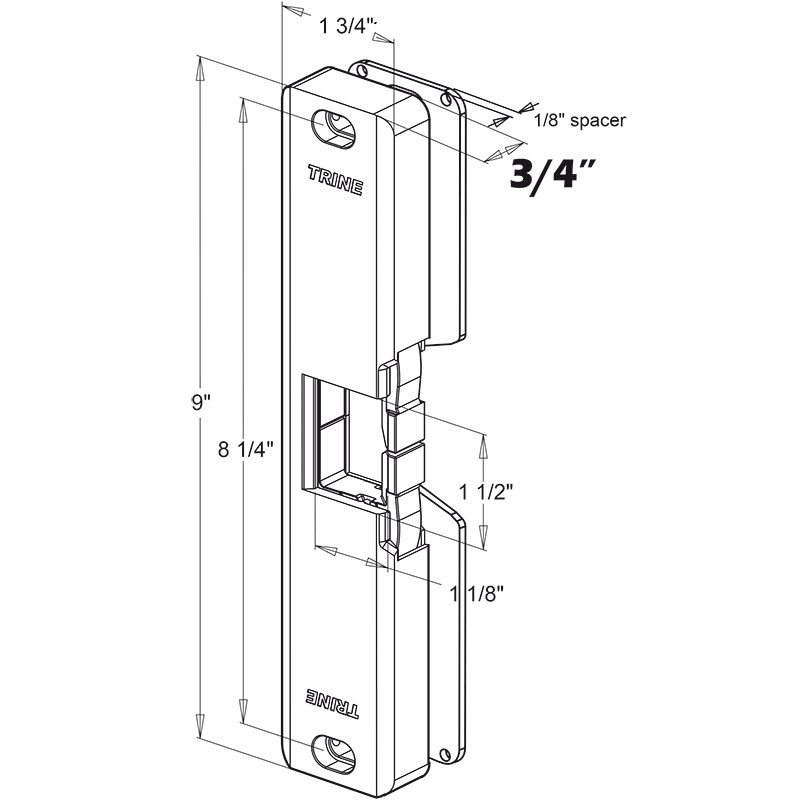

3 Hour fire rated electric strike for use with surface-mounted rim exit devices with 3/4″ (or greater) throw. For use in new or replacement installations in wood or metal single door frames.

• Fire-rated standard, 3/4″ strike – NO UPCHARGE FOR FIRE RATING. (like the competition)

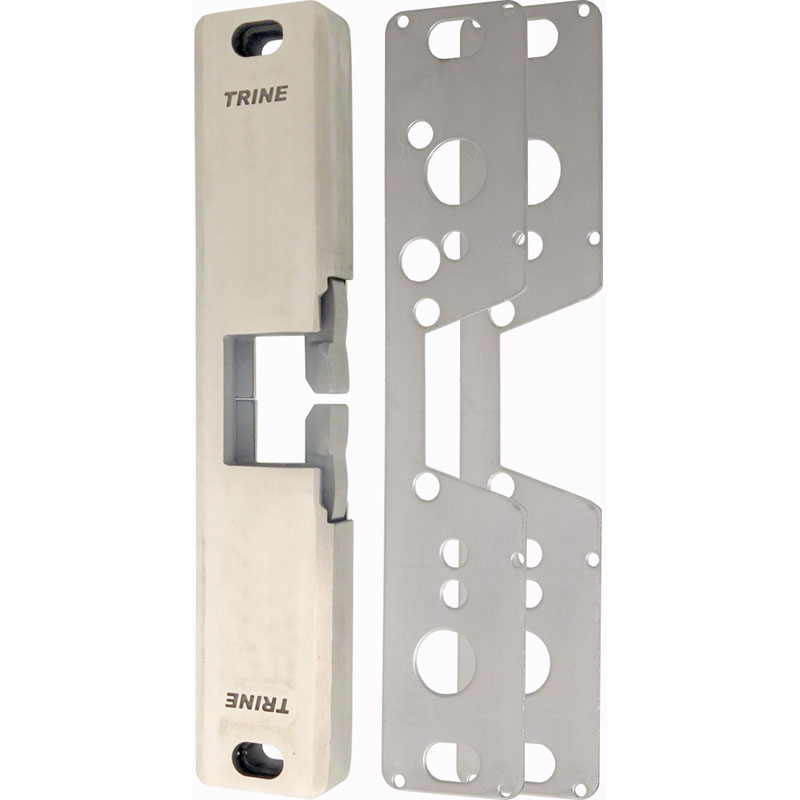

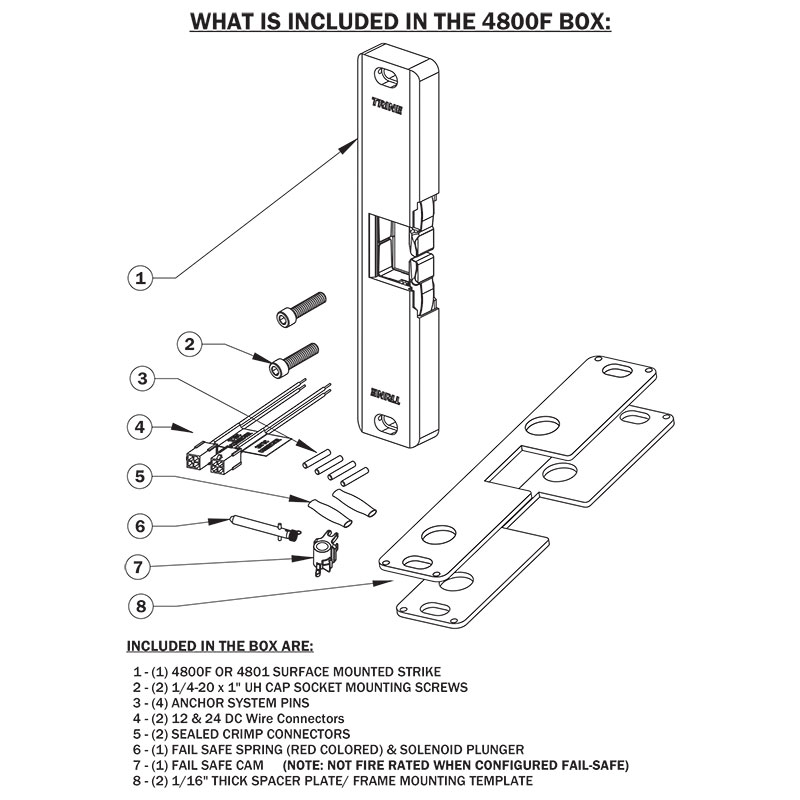

• The cavity is completely open — which means the 4800F allows for a full 3/4″ depth and upto a 1″ throw with the included two (2) 1/16″ spacer plates — competitor backplates do not allow for this versatility.
• Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input — with surge and kickback protection
• Comes with Trines Patented 4-Pin Anchoring System
• Contains a one-piece locking mechanism with one Solenoid — less parts mean less problems
• Fail-safe/Fail-secure – field selectable (Like all electric strikes, it is not fire rated in Fail-safe mode)
• Grade 1 Electric Strike — 1,500,000+ Life cycles — 3,000+ lbs. Holding Force
• No cutting or worrying about voltage means you are always prepared

Standards

• Class A, 3 Hour Single door / frame configuration
• UL10C, Fire Tests of Door Assemblies
• UBC 7-2, Uniform building Code
• CAN4 S104, Standard Method for Fire Tests of Door Assemblies NFPA 252
• Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
• NOTE: WH fire listing is void when using fail safe action
• Grade 1 Electric Strike — 1,500,000+ Life cycles — 3,000+ lbs. Holding Force
