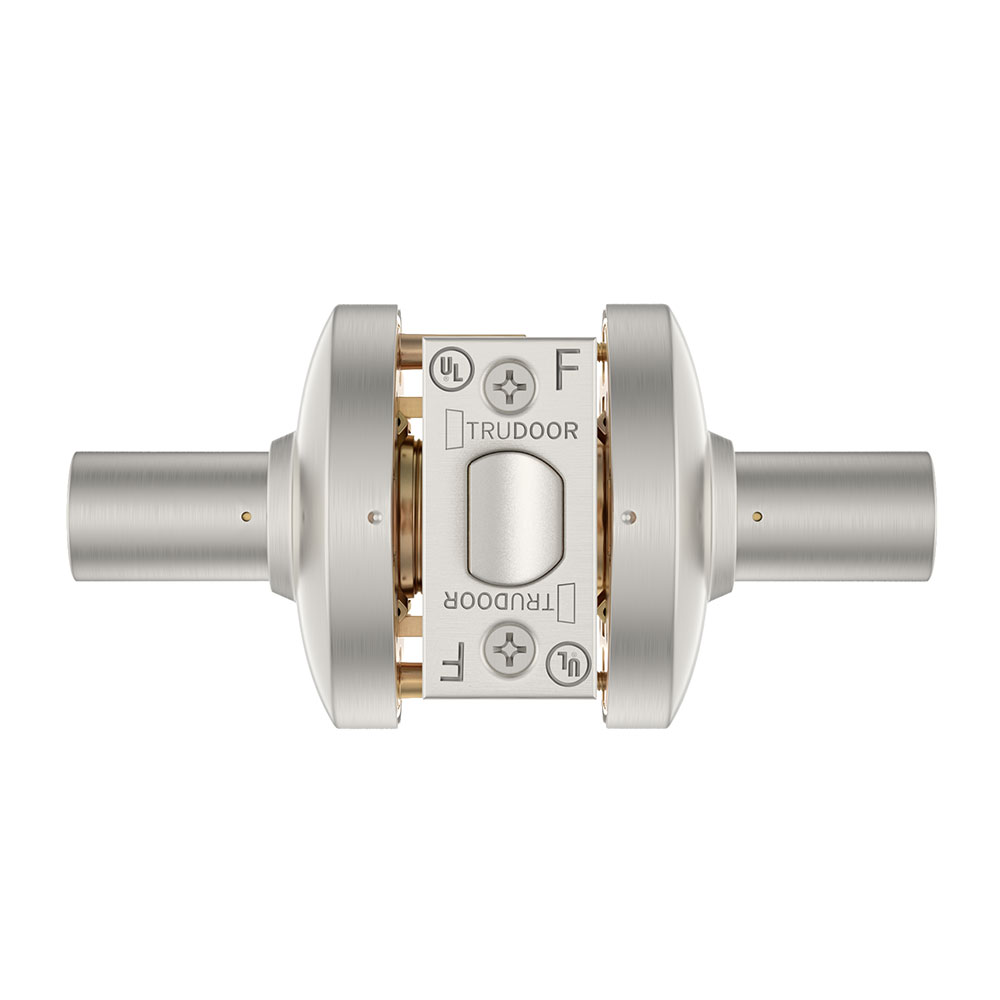

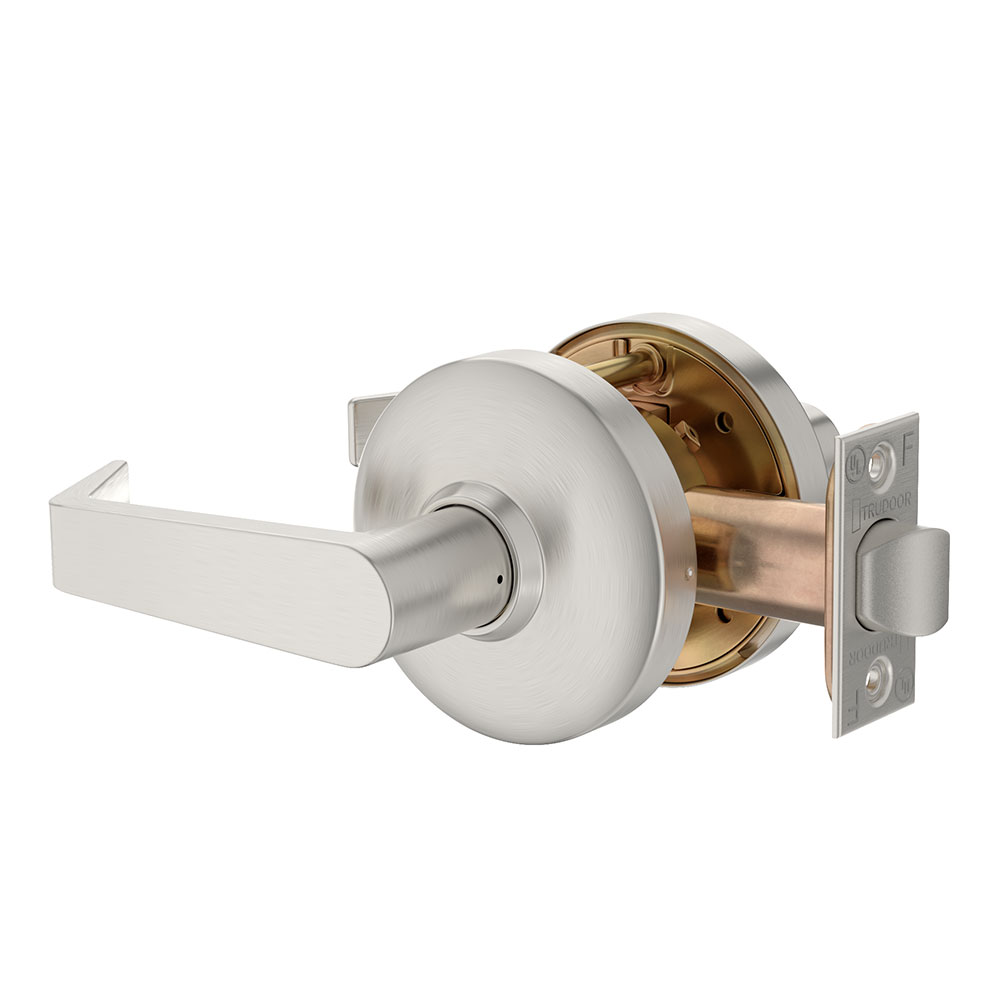

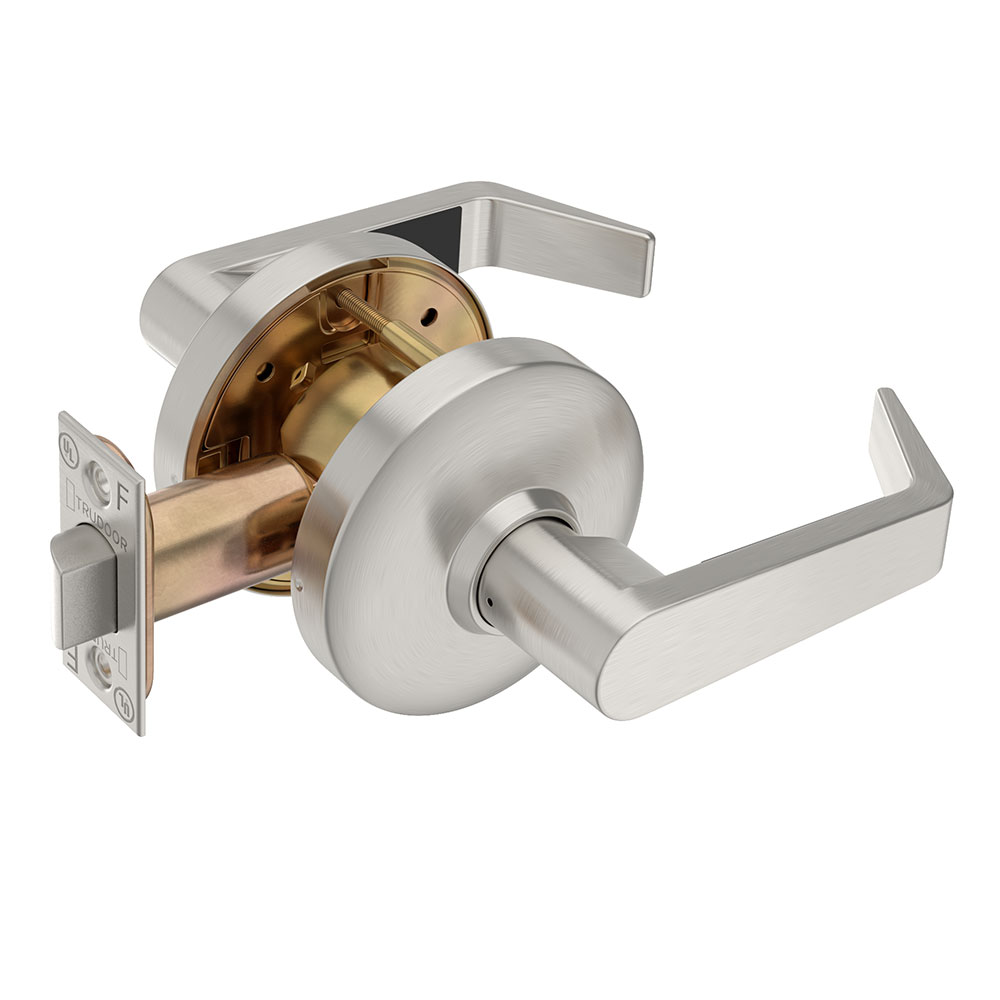

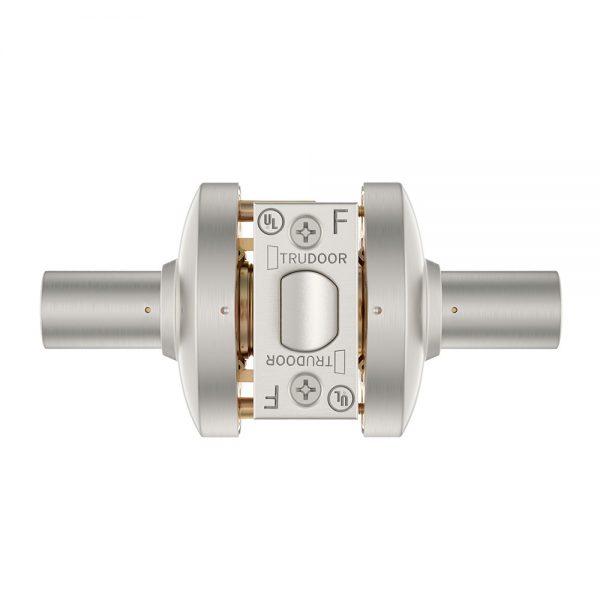

Trudoor CL1-75 Heavy-Duty Passage Lever Set

Usually Ships: Same Day

Meets ANSI Grade 1 standards
Both levers always unlocked and free
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Strike

Clear

Quantity:

Trudoor CL1-75, CL1 Series Grade-1 Cylindrical Lever Lock, Passage Function, Heavy-Duty

Trudoor® CL1 Series cylindrical locks are an ideal choice for a wide variety of heavy-duty applications where consistent reliability and easy installation are required at an economical price. CL1 locks are for use on exterior or interior doors in office buildings, schools, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial, institutional, or industrial buildings.

Quality construction and reliability at an affordable price
Steel, zinc dichromated chassis for corrosion resistance with precision cast steel retractor
Non-handed and reversible for easy installation
Fixed thru-bolts for added strength
2-3/4″ backset latch and ASA strike standard (t-strike and full lip strike available in lock parts and accessories)

Passage Function, ANSI F75 – Both levers always unlocked and always free for immediate egress.

Code Compliance

Meets ANSI/BHMA A156.2, Series 4000, Grade 1 standards, exceeds 1,000,000 cycles
UL listed for “A” label 3 hour fire-rated doors
Meets ADA and ANSI A117.1 accessibility codes
Meets California code for 1/2″ lever return to door face

Cross Reference

The CL1-75 can be specified as a substitute for: Accentra/Yale 5401LN / 4701LN, Arrow QL01 / GL01, Cal-Royal CGN30 / CAL30, Corbin Russwin CL3310, Design Hardware Z-75-F, Dorma C110 / C810, Falcon K101 / T101, Hager 3410, Marks 195N, PDQ GT126, Sargent 10U15 / 10XU15, Schlage ND10, Stanley QCL130

Brand	Trudoor
Finishes	622 Matte Black, US26D (626) Satin Chrome
Lock Function	Passage
ANSI Grade	Meets ANSI/BHMA A156.2, Series 4000, Grade 1 standards, exceeds 1,000,000 cycles
Usage	Heavy Duty
Backset	2-3/4"
Latch	1/2" throw – 1-1/8" x 2-1/4" face
Strike	Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike
Handing	Non Handed – Completely Reversible
Chassis	Steel, zinc dichromated for corrosion resistance with precision cast steel retractor
Trim	4-3/4” zinc die-cast levers, 3-1/2” wrought brass roses
Fasteners	Combination screws for wood or metal doors & frames
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL Listed for “A” Label 3 Hour Fire Doors
Door Thickness	1-3/8" to 1-3/4"
Door Applications	Interior or Exterior Hollow Metal Doors and Wood Doors
Warranty	Limited Lifetime Warranty
