Trudoor CL1-82 Heavy-Duty Entry/Office Lever Lock

Usually Ships: Same Day

Meets ANSI Grade 1 standards
For interior or exterior entry doors
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Strike

Clear

Quantity:

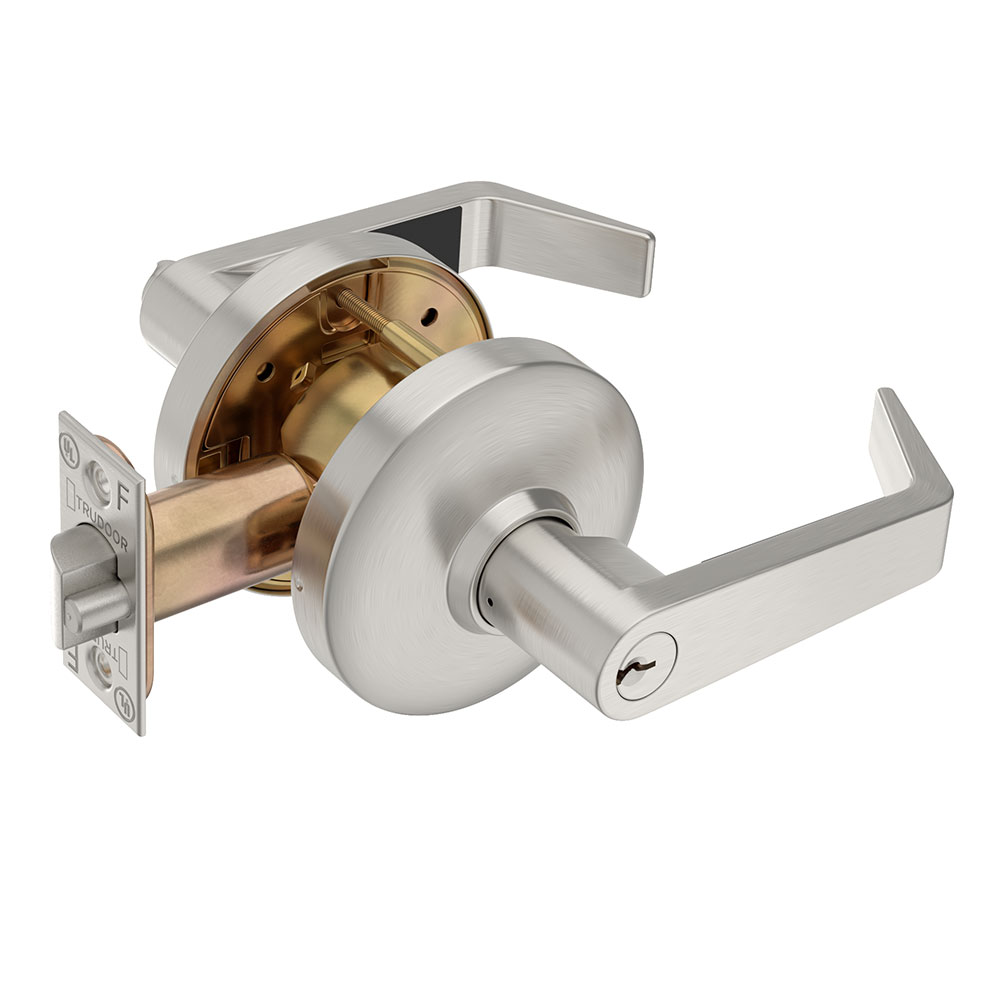

Trudoor CL1-82, CL1 Series Grade-1 Cylindrical Lever Lock, Entrance/Office Function, Heavy-Duty

Trudoor® CL1 Series cylindrical locks are an ideal choice for a wide variety of heavy-duty applications where consistent reliability and easy installation are required at an economical price. CL1 locks are for use on exterior or interior doors in office buildings, schools, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial, institutional, or industrial buildings.

Quality construction and reliability at an affordable price
Steel, zinc dichromated chassis for corrosion resistance with precision cast steel retractor
Clutch mechanism on locking functions, free turning lever in locked position without retracting latch for vandal resistance
Non-handed and reversible for easy installation
Fixed thru-bolts for added strength
2-3/4″ backset latch and ASA strike standard (t-strike and full lip strike available in lock parts and accessories)

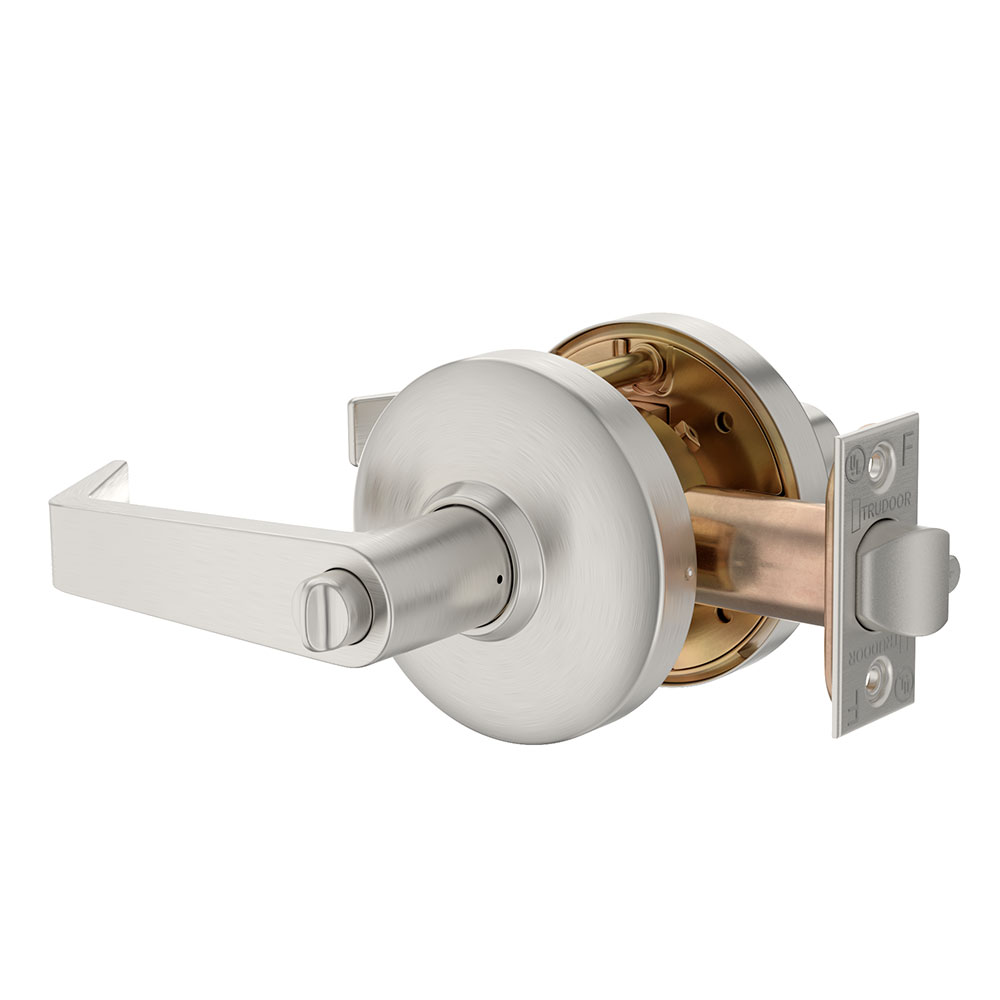

Entry Function, ANSI F109 – Turn / push button locking: Pushing and turning inside button locks outside lever, requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Inside lever always free for immediate egress.

Code Compliance

Meets ANSI/BHMA A156.2, Series 4000, Grade 1 standards, exceeds 1,000,000 cycles
UL listed for “A” label 3 hour fire-rated doors
Meets ADA and ANSI A117.1 accessibility codes
Meets California code for 1/2″ lever return to door face

Cross Reference

The CL1-75 can be specified as a substitute for: Accentra/Yale 5407LN / 4707LN, Arrow QL11 / GL11 Cal-Royal CGN00 / CAL00, Corbin Russwin CL3351, Design Hardware Z-82-F, Dorma C153 / C853, Falcon K511 / T511, Hager 3453, Marks 195AB, PDQ GT116, Sargent 10G05 / 10XG05, Schlage ND53, Stanley QCL153

Brand	Trudoor
Finishes	622 Matte Black, US26D (626) Satin Chrome
Lock Function	Entry (Entrance), Office
ANSI Grade	Meets ANSI/BHMA A156.2, Series 4000, Grade 1 standards, exceeds 1,000,000 cycles
Usage	Heavy Duty
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Backset	2-3/4"

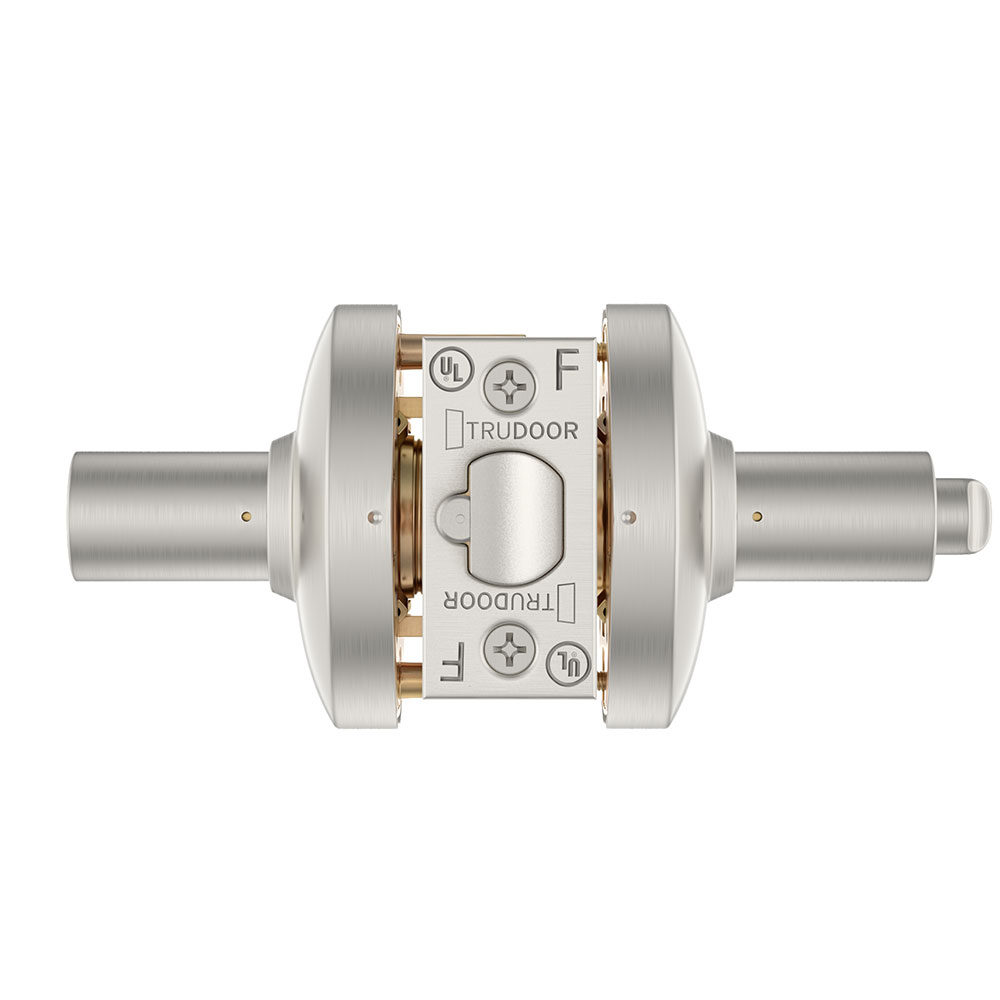

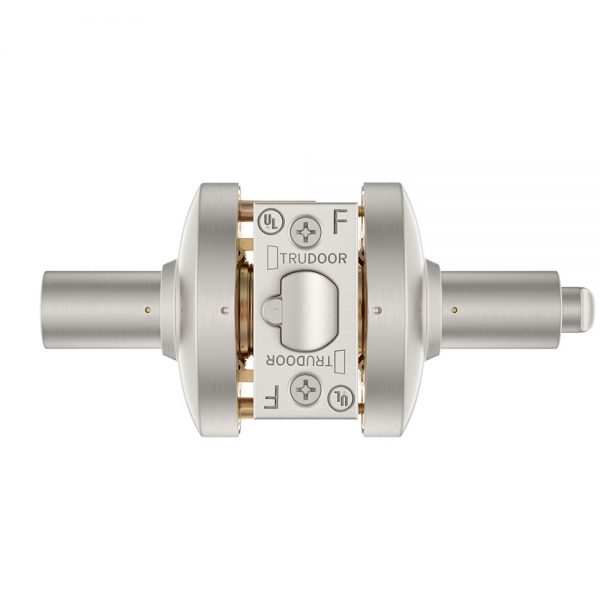

Latch	1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike	Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike
Handing	Non Handed – Completely Reversible
Chassis	Steel, zinc dichromated for corrosion resistance with precision cast steel retractor
Trim	4-3/4” zinc die-cast levers, 3-1/2” wrought brass roses
Clutch Lever	Yes
Fasteners	Combination screws for wood or metal doors & frames
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL Listed for “A” Label 3 Hour Fire Doors
Door Thickness	1-3/8" to 1-3/4"
Door Applications	Interior or Exterior Hollow Metal Doors and Wood Doors
Warranty	Limited Lifetime Warranty
