Product Overview

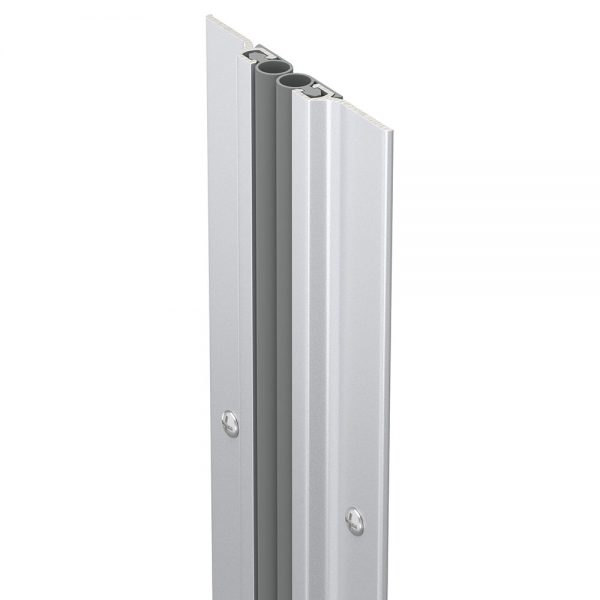

Trudoor TD-AST Meeting Stile Split Astragal Set (2 Pieces) with Vinyl Insert
Meeting stile astragals are used to seal the gap between pairs of doors (screwed onto the surface of each door).
Our door weather seal products are engineered and tested for durability and reliable performance to ensure that they meet or exceed industry standards.
- Available Sizes: 84″ Set and *96″ Set″
- Full-Length; Field-Cut to Size
*excessive length shipping fee applies for 96″ sets

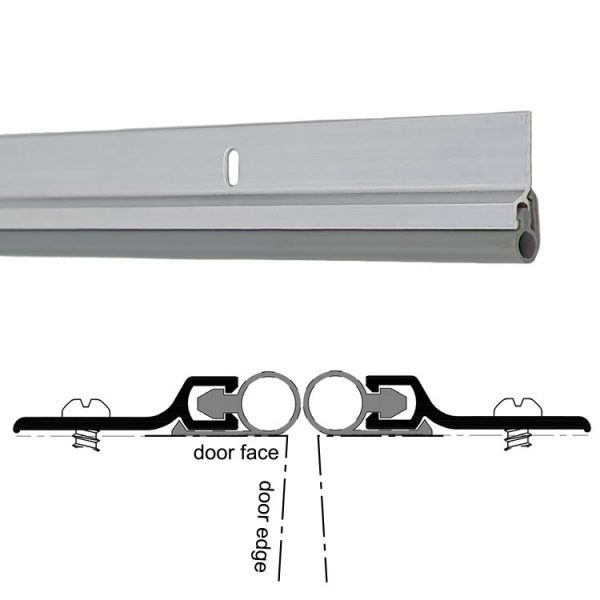

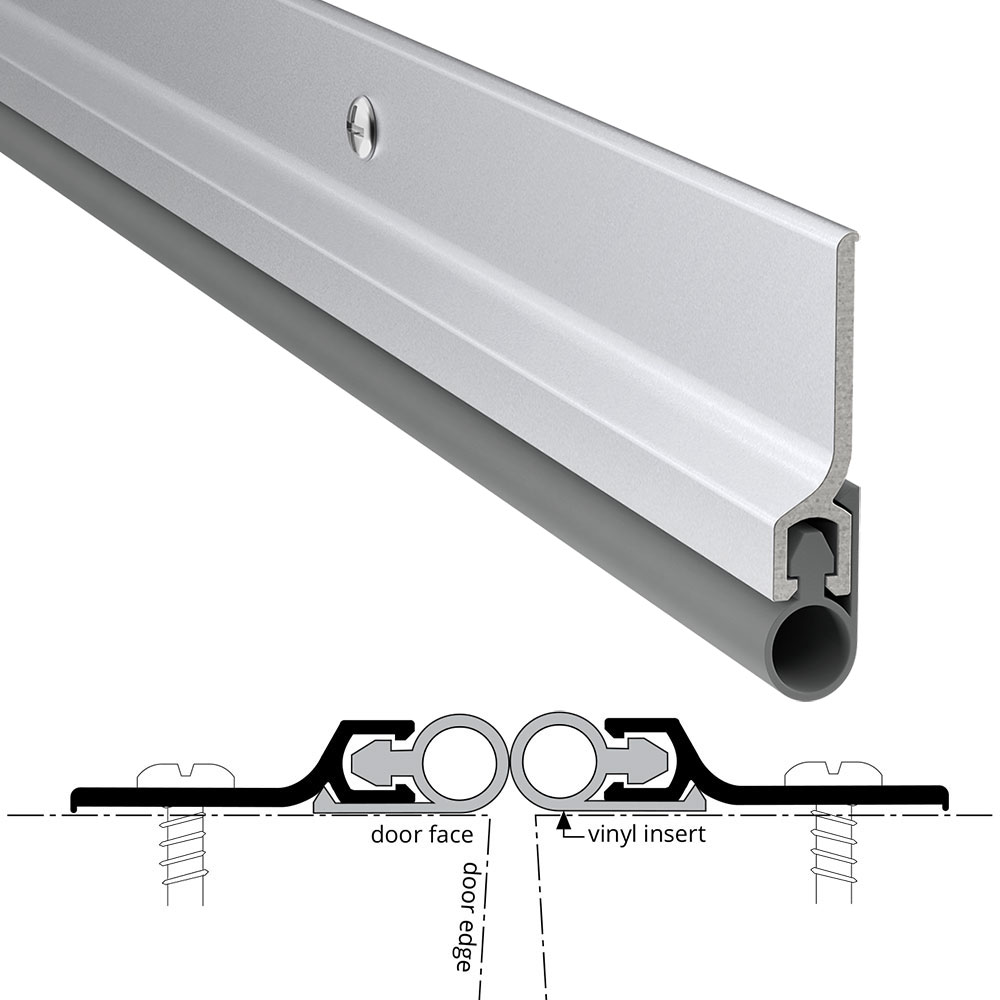

- Consists of an aluminum channel with a vinyl rubber seal
- Designed to seal the gaps between pairs of doors
- Can be installed on either wood or metal doors
- Channels are punched with slotted holes for easy adjustment
- #6 x 5/8″ self-tapping pan head sheet metal screws furnished
- Width: 1/4″ (6.4mm) (x2)
- Profile Height: 7/8″ (22.2mm) (x2)
- Total Height: 1-1/8″ (28.6mm) (x2)
- UL listed, fire-rated
- Sound tested
- Smoke tested
- Air infilration tested
| Brand | |
|---|---|
| Length | 84", 96" |
| Finishes | Mill Finish Aluminum |
| Insert/Seal Type | Vinyl |
| Fire Rating | UL/cUL listed up to 3 Hours |
| Fasteners | PHSMS #6 x 5/8" |
