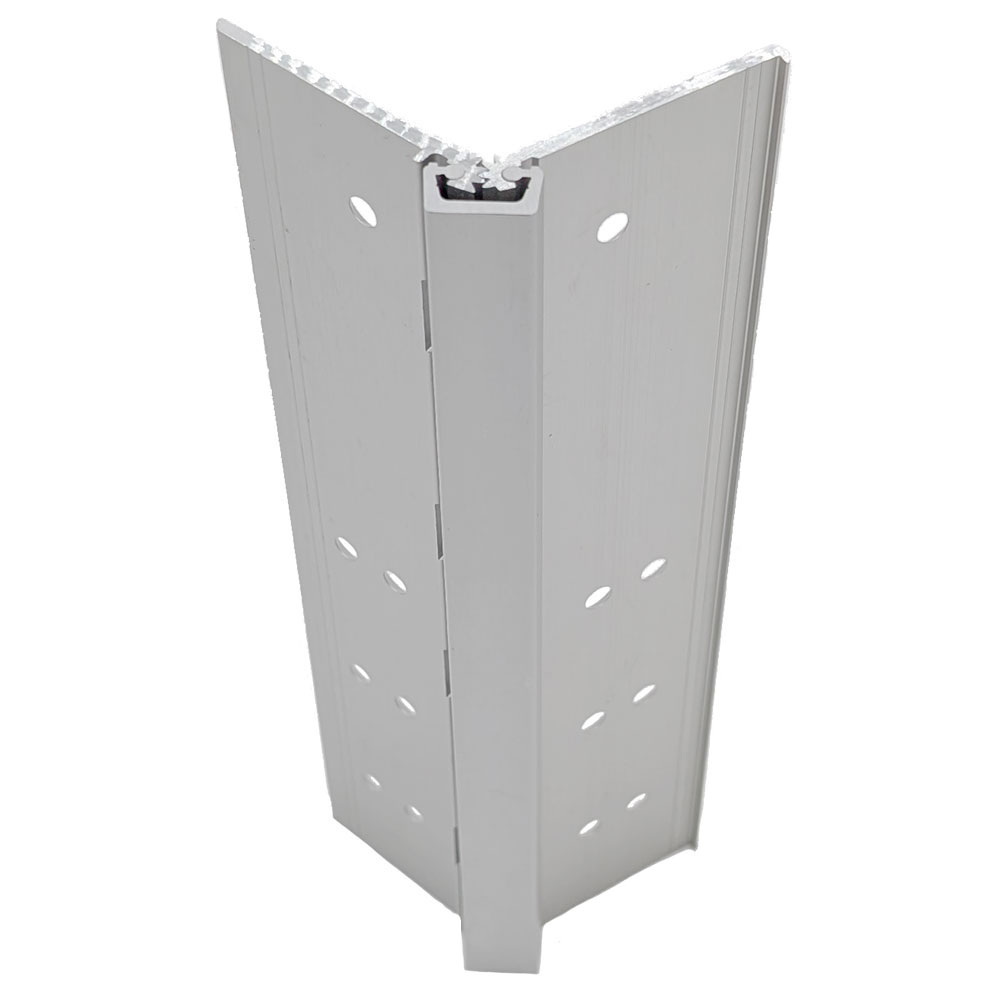

Trudoor TD-CHFM Heavy-Duty Full Mortise Concealed Continuous Gear Hinge

Usually Ships: Same Day

Typically used for new door applications
Fire-rated up to 90-minutes
Supports weights up to 450lbs

Available Options:

Finish

Length

Clear

Quantity:

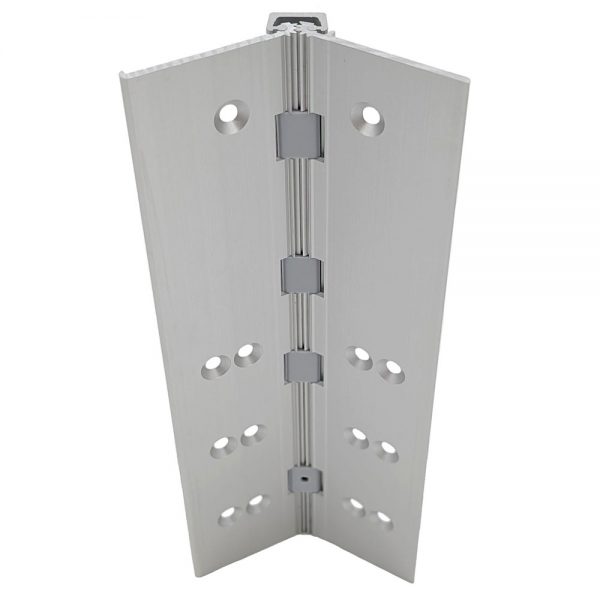

Trudoor TD-CHFM Heavy-Duty Full Mortise (Concealed Leaf) Continuous Gear Hinge, Grade-1, Fire-Rated

Heavy-duty aluminum continuous geared hinge – designed mainly for new door applications

Full concealed, heavy-duty grade-1

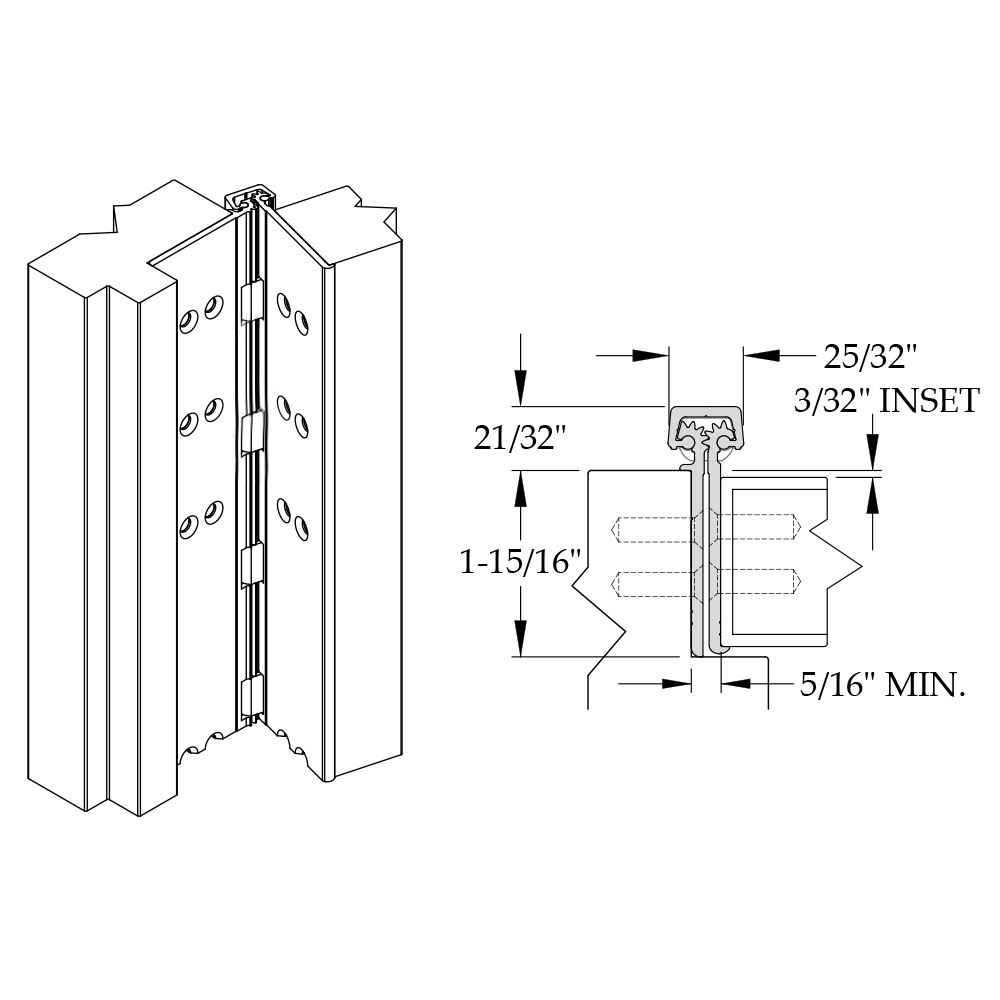

3/32″ door inset
Door edge protection lip
Eliminates door sag and binding
48″ door width maximum
450 lbs. door weight maximum
Standard Lengths: 79″, 83″, *95″

*Oversize handling fee applies (added at checkout)

Cross Reference

TD-CHFS hinges can be specified as a substitute or direct replacement for: ABH A240HD, Best/Stanley 662HD, Cal-Royal CRHD782240, Design Hardware FMHD, Hager 780-224HD, Ives 224, NGP HD2400, PBB CG31L, Pemko _FM_-HD1, Select SL24

Brand	Trudoor
Length	79" (for 6'8" door), 83" (for 7'0" door), 95" (for 8'0" door)
Finishes	Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum
Continuous Hinge Type	Full Mortise (Concealed)
ANSI/BHMA Standard	ANSI/BHMA A156.26-2017
Usage	Heavy Duty
Material	Aluminum
Fasteners	12-24 x 3/4″ undercut self drilling, thread forming tek machine screws
Door Applications	1-3/4″ Thick Doors
Door Weight	up to 450 lbs.
Door Width	up to 48"
Fire Rating	Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
Warranty	Limited Lifetime Warranty
