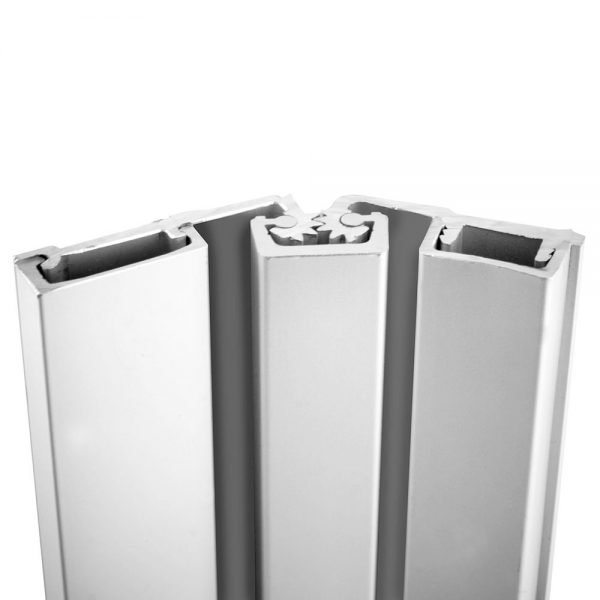

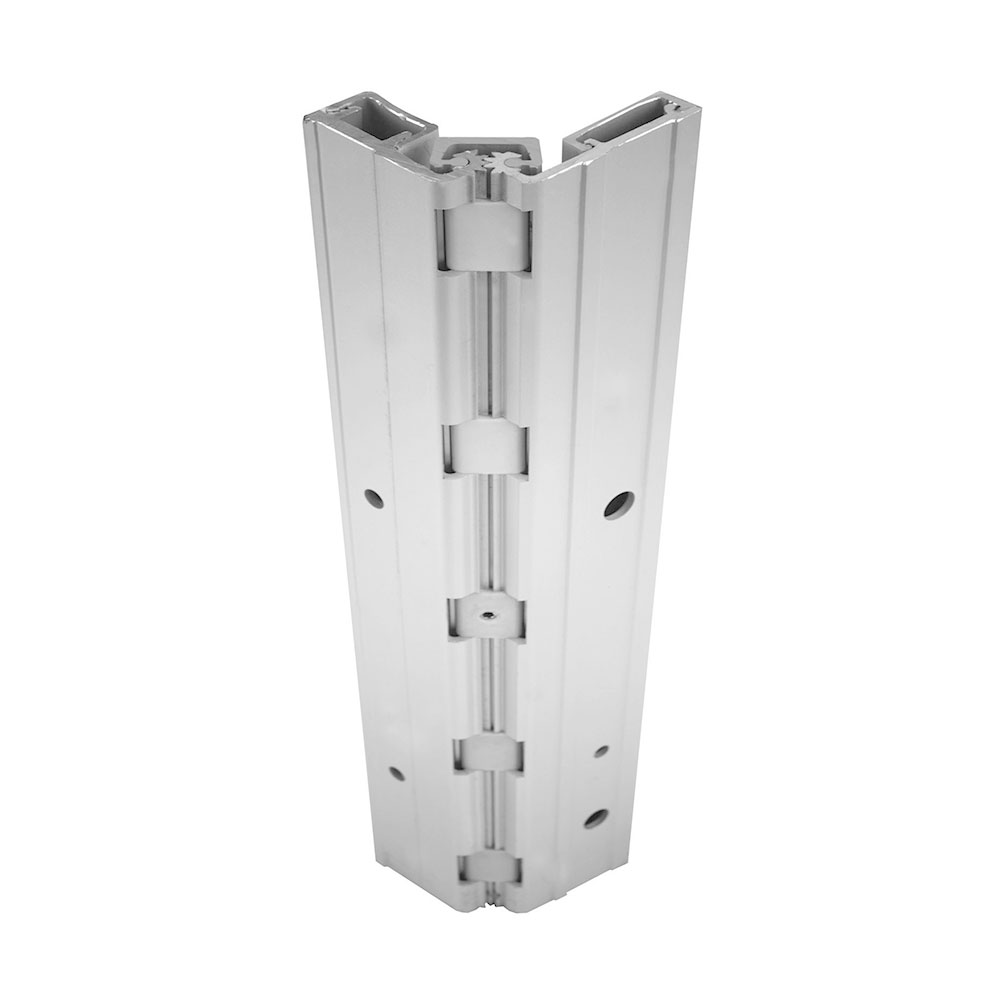

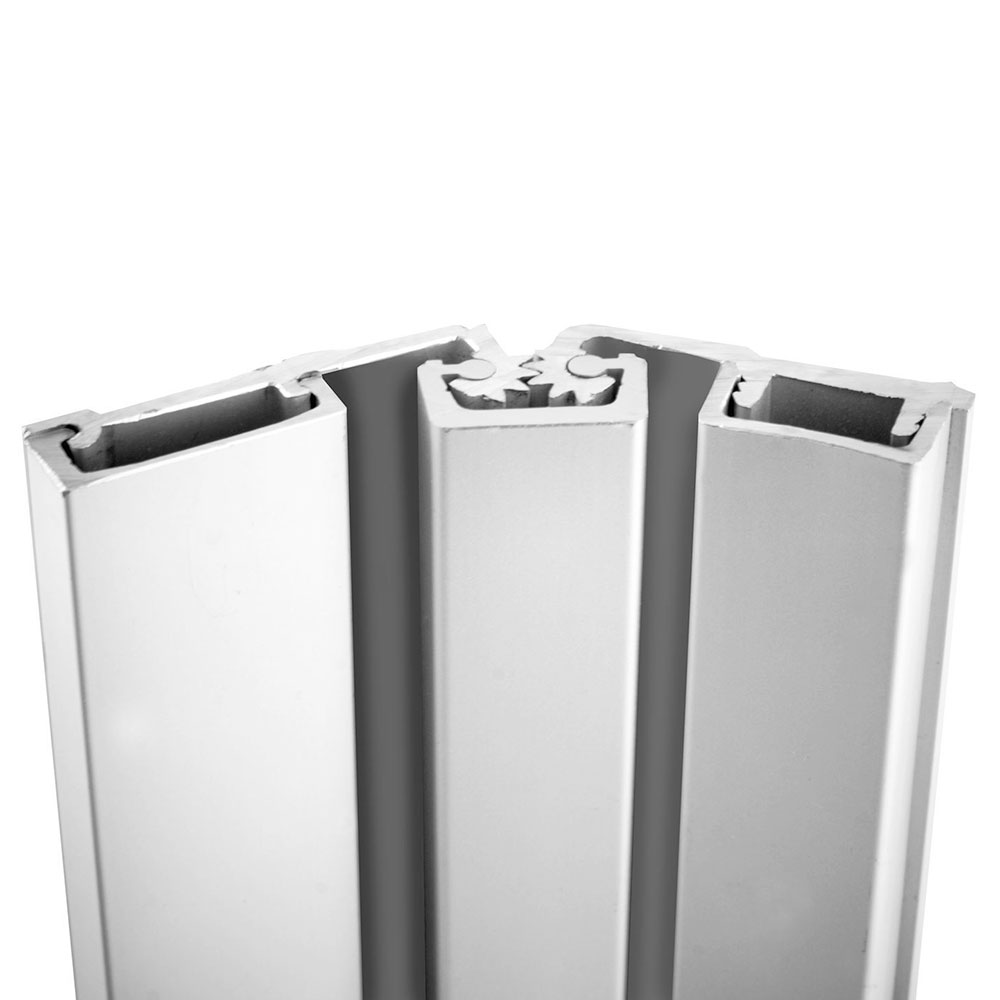

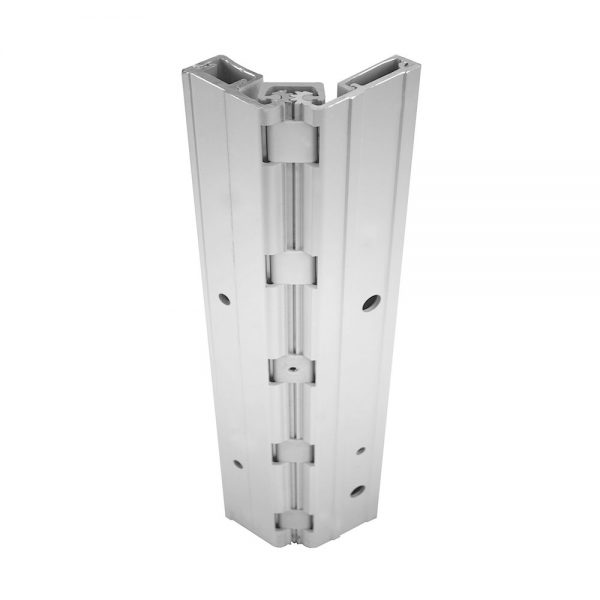

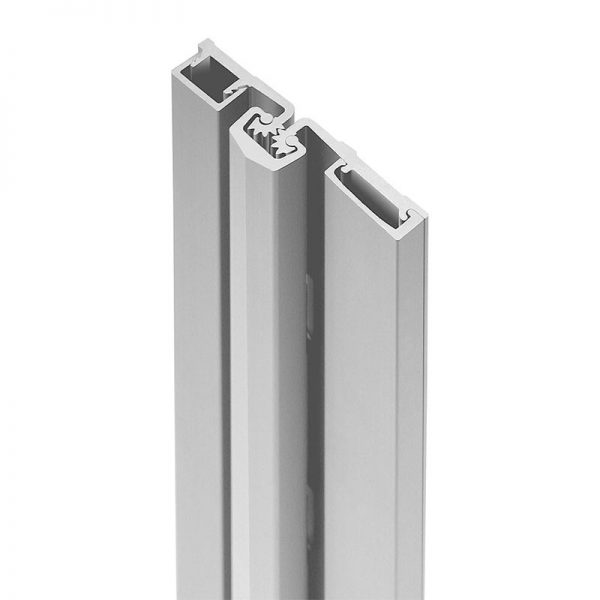

Trudoor TD-CHFS Heavy-Duty Full Surface Continuous Gear Hinge

Usually Ships: Same Day
  • Typically used for retrofit applications
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Trudoor TD-CHFS Heavy-Duty Full Surface Continuous Gear Hinge, Grade-1, Fire-Rated, Clear Aluminum Anodized

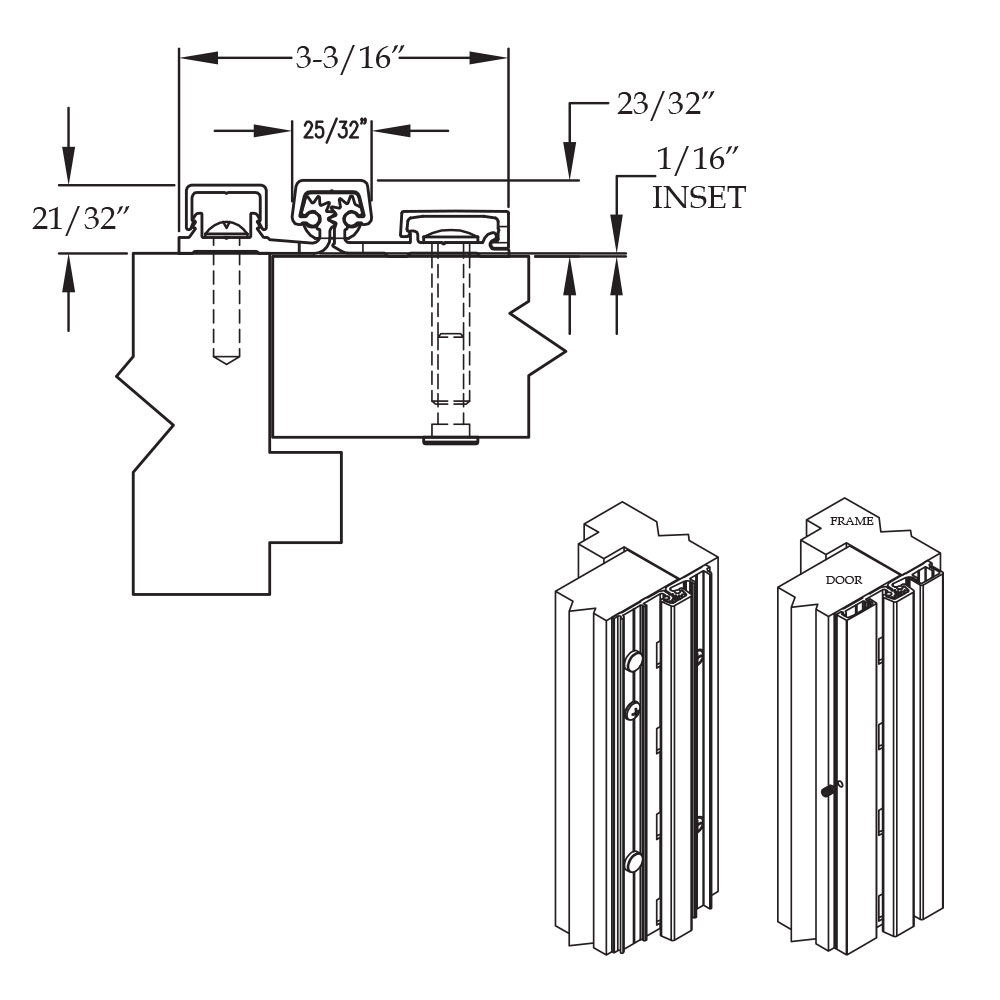

Typically used for retrofit applications, and is applied to the exposed surfaces of the door and frame

  • Full surface, heavy-duty grade-1
  • 1/16″ door inset
  • Can be used with narrow face frames (as narrow as 7/8″)
  • Eliminates door sag and binding
  • 48″ door width maximum
  • 450 lbs. door weight maximum
  • Clear anodized aluminum finish
  • Standard Lengths: 83″, *95″

*Oversize handling fee applies (added at checkout)

Cross Reference

TD-CHFS hinges can be specified as a substitute or direct replacement for: ABH A570HD, Best/Stanley 664HD, Cal-Royal CRHD781570, Design Hardware FSHD, Hager 780-157HD, Ives 157XY, NGP HD5700, PBB CG33N, Pemko _FS_CP-HD1, Select SL57

made-in-usa

Brand

Length

83" (for 7'0" door), 95" (for 8'0" door)

Finishes

Clear Anodized Aluminum

Continuous Hinge Type

Full Surface

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017

Usage

Heavy Duty

Material

Aluminum

Fasteners

12-24 X 1" Phillips Pan Head, Self Drilling, Thread Forming Tek Machine Screw 1/4-20 x 1-1/4" x 3/8 Dia. Sex Bolts and 1/4-20 x 1-1/4" PH. Head Shoulder Bolts for Door

Door Applications

1-3/4″ Thick Doors

Door Weight

up to 450 lbs.

Door Width

up to 48"

Fire Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Warranty

Limited Lifetime Warranty
