Product Overview

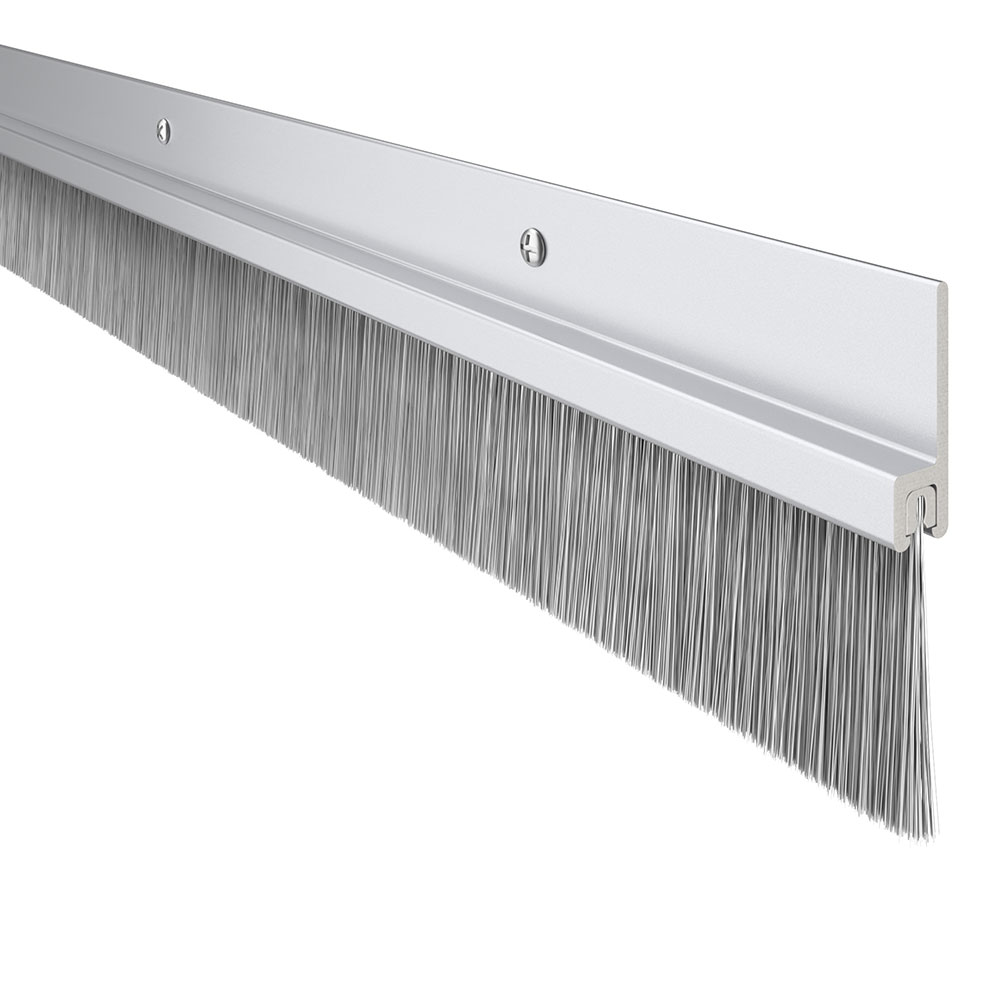

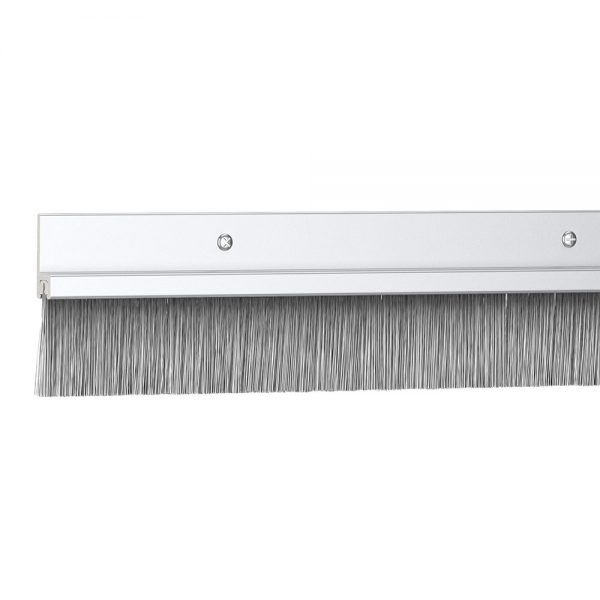

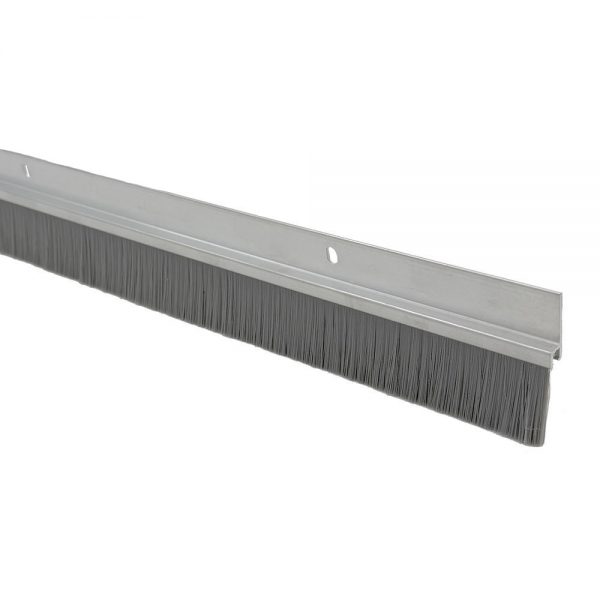

Trudoor TD-SWB Door Bottom Sweep with Extruded Aluminum Retainer and Nylon Brush Insert
The TD-SWB Door Sweep is designed with an aluminum casing and a nylon brush insert. This door sweep includes fasteners and is easy to install.
- Used to seal the gap at the bottom of the door to prevent infiltration of air, sound, light, drafts, insects, moisture, wind, water, snow, smoke, and fire
- Surface mounts to the face of the door
- Commonly used on the exterior outswing doors
- Made of extruded aluminum retainer with nylon brush insert
- Use on either wood or hollow metal doors
- Slotted holes for easy adjustment
- Includes #6 x 5/8 PPHSMS fasteners

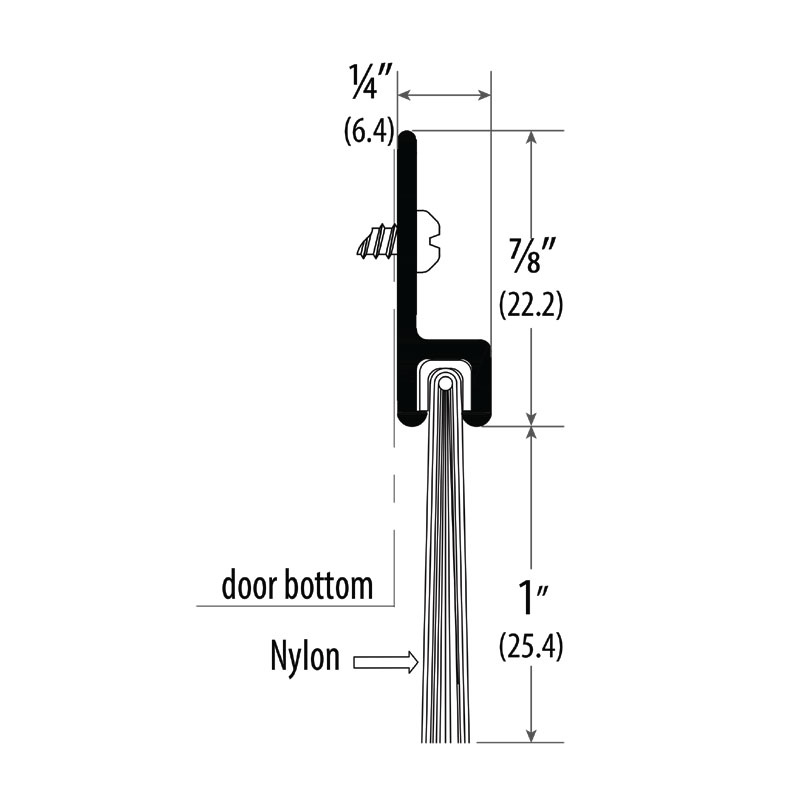

- Width: 1/4″
- Profile Height: 7/8″
- Total Height with Insert: 1-7/8″
- Length: 36″ or 48″
Cross-reference: Cal-Royal BW-305, Design Hardware SW-BR, Hager 801S, NGP 601, Pemko 18100, Reese 967
| Brand | |
|---|---|
| Finishes | Black Anodized Aluminum, Mill Finish Aluminum |
| Length | 36", 48" |
| Insert/Seal Type | Nylon Brush |
| Fasteners | PHSMS #6 x 5/8" |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
