Product Overview

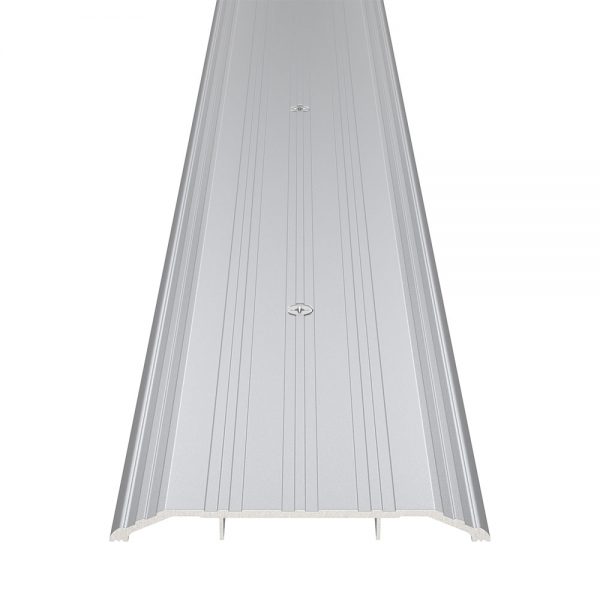

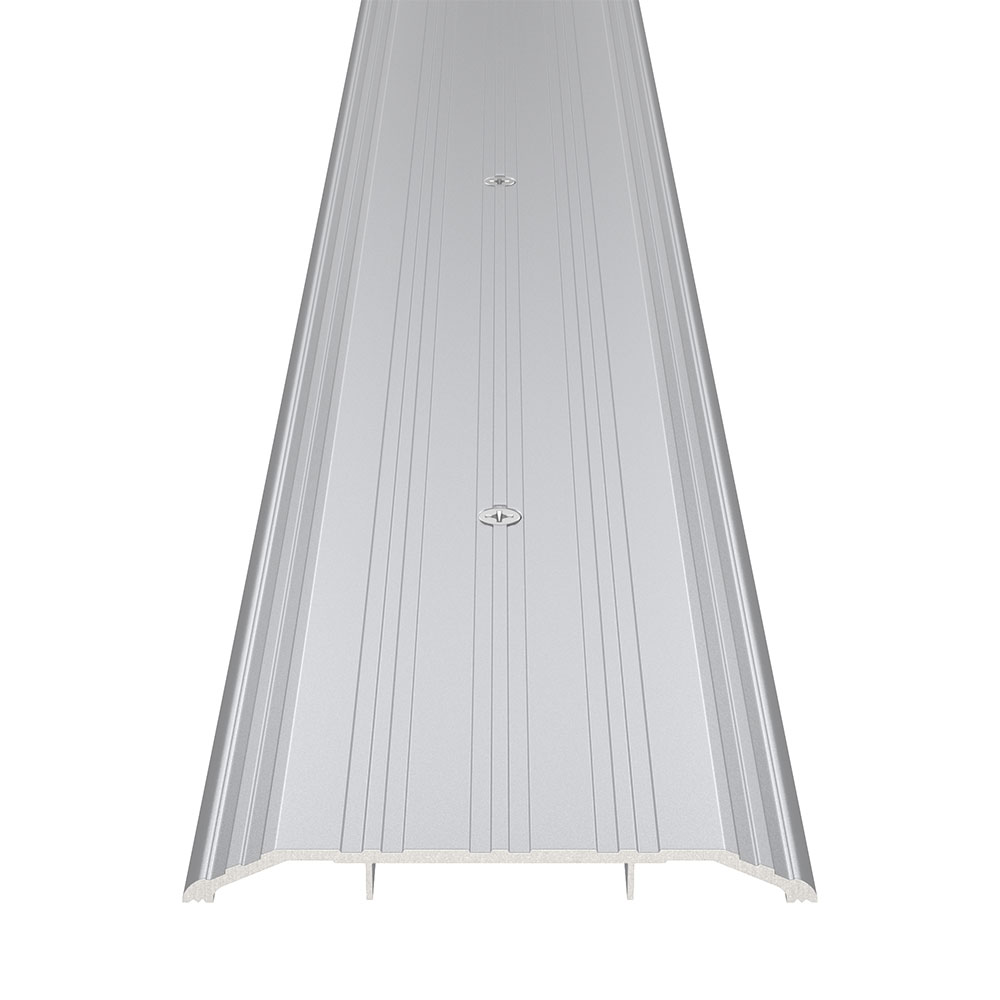

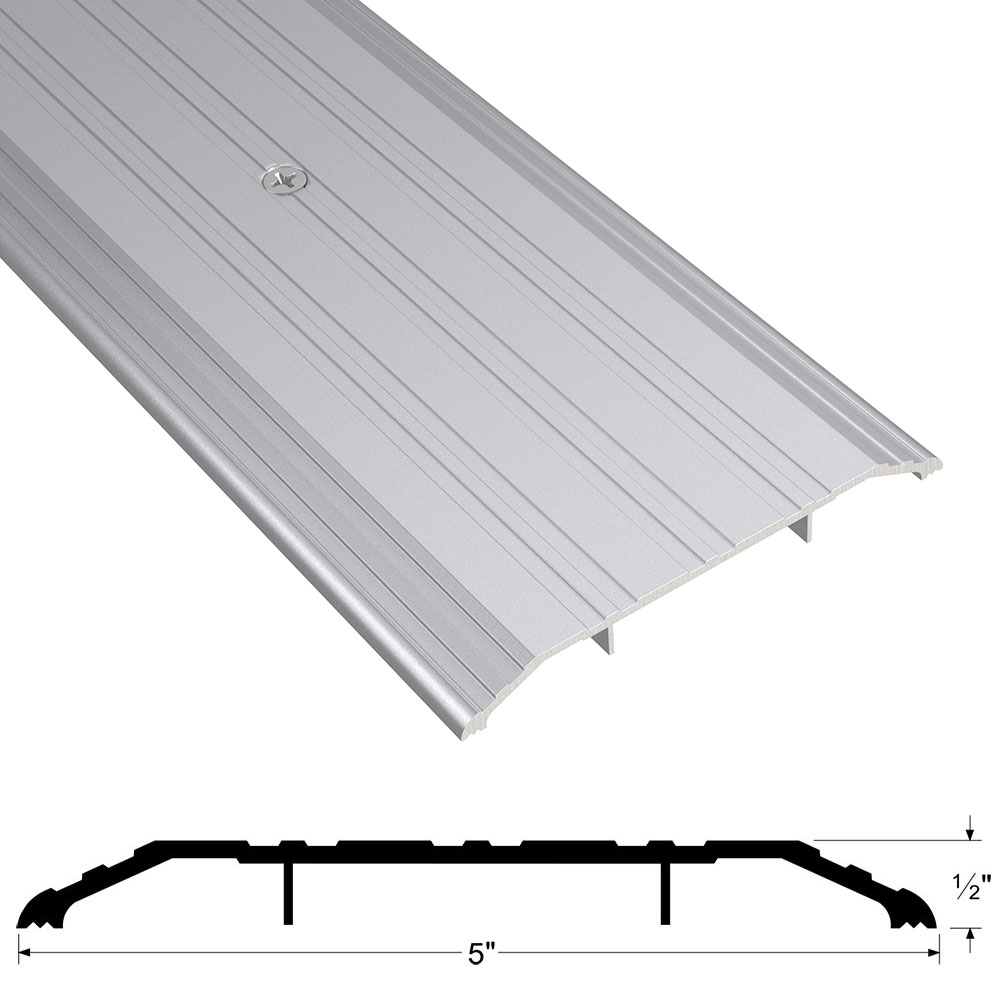

Trudoor TD-TH5 Commercial Fluted Saddle Threshold, 5″ W x 1/2″H
Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.
- ADA accessible
- Made from thick, durable metal
- Width: 5″ (127.0 mm)
- Height: 1/2″ (12.7 mm)
- Lengths: 36″, 48″, 72″ and *96″
*excessive length shipping fee applies
Ratings
- Barrier-Free (ADA): Meets the requirements of ADAAG-2010 and ANSI A117.1-2009 – Overall height is no greater than 1/2″
- Fire Rated: Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
Cross-reference: Cal-Royal CR2715, Design Hardware TH5, Hager 412S, NGP 425E, Pemko 171, Reese S425, Zero 8655
| Brand | |
|---|---|
| Finishes | Mill Finish Aluminum |
| Length | 36", 48", 72", 96" |
| Width | 5" |
| Height | 1/2" |
| Fire Rating | Up to 3 Hours with metal doors; 90 minutes with wood doors |
