Trudoor TDC-400-EDA-SS Grade-1 Door Closer with Extra Heavy-Duty Parallel Mount Arm with Removable Dead Stop and Spring Stop

$245.49

This item ships FREE! Usually Ships: Same Day
  • Heavy to Extra-Heavy-Duty, ANSI Grade 1
  • Cast iron body, for high use and abuse doors
  • Includes extra heavy-duty arm with removable auxiliary stop and spring stop

Product Overview

Trudoor TDC-400-EDA-SS Heavy-Duty Grade-1 Commercial Door Closer, Cast Iron Body, Extra Heavy-Duty Parallel Mount Arm with Removable Dead Stop and Spring Stop, Full Cover, 689 Aluminum Finish

Trudoor® TDC-400 surface mount hydraulic door closers are built to withstand high frequency, highly abusive traffic areas. An ideal choice for demanding interior or exterior commercial, industrial, and institutional applications where grade-1 strength, durability, and reliability are required at a great value.

  • Quality heavy-duty construction and grade-1 reliability at an unbeatable value
  • Heavy-duty cast iron body and spring for doors up to 250lbs
  • Adjustable spring power from Size 1 to 6 – Preset at size 3
  • Parts and accessories such as drop plates are available
  • 2-1/4″ projection with the cover installed
  • AL/689 Aluminum finish

Extra Duty Arm with Removable Dead Stop and Spring Stop

  • Includes Removable Auxiliary Stop AND Spring Stop (integrated attachment screw uses hex wrench for installation of spring stop)
  • Parallel Arm (Push Side) Mounting Only
  • Forged Solid Steel
  • Painted Aluminum Finish
  • Non-handed design

Typical Applications

Assisted Living, Church, Education, Government, Healthcare, Hospitality, Industrial, Institutional, Multi-Family, Office, Retail

Code Compliance

  • Meets ANSI A156.4 – Grade 1 Standards
  • UL Listed for “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
  • Meets ADA and ANSI A117.1 Accessibility Codes

Brand

Finishes

689 Aluminum (Powder Coated)

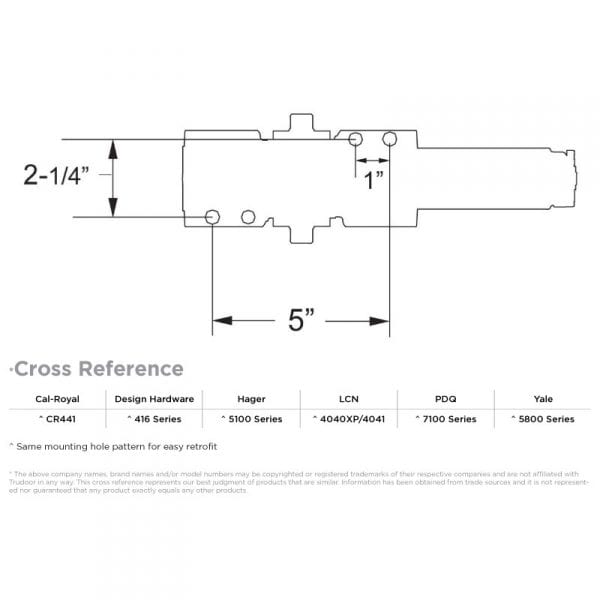

Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
Mounting Options

Parallel Arm (Push Side)
Body Construction

Cast Iron Body
Spring Size

Adjustable Spring Size 1-6
Handing

Non Handed – Completely Reversible
Speed Control

Independent latch & sweep speed controls
Backcheck

Back check intensity control standard
Valves

Staked valves to prevent backing valves out too far
Springs

Heat treated heavy-duty tempered spring for doors up to 250lbs
Cover

Full Cover
Min. Top Rail

Regular: 3-3/4” – Top Jamb: 1-1/4” – Parallel Arm: 5-3/8”
Fasteners

Thru bolts with machine screws, wood screws & Self tapping machine screws
ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL Listed for “A” Label 3 hour fire doors, UL10C positive pressure rated
Warranty

Limited Lifetime Warranty
