Trudoor TDC-400-HP Door Closer w/ Heavy Duty Hold Open Arm with Deadstop

$195.05

Usually Ships: Same Day
  • Heavy to Extra-Heavy-Duty, ANSI Grade 1
  • Includes hold open arm with deadstop
  • Non-handed, parallel arm mount only

Trudoor TDC-400-HP Heavy-Duty Grade-1 Commercial Door Closer, Cast Iron Body, Heavy Duty Deadstop Hold Open Parallel Arm, Full Cover

Trudoor® TDC-400 surface mount hydraulic door closers are built to withstand high frequency, highly abusive traffic areas. An ideal choice for demanding interior or exterior commercial, industrial, and institutional applications where grade-1 strength, durability, and reliability are required at a great value.

  • Includes regular arm and heavy-duty hold open arm (hold open arm packed in a separate box)
  • Quality heavy-duty construction and grade-1 reliability at an unbeatable value
  • Heavy-duty cast iron body and spring for doors up to 250lbs
  • Adjustable spring power from Size 1 to 6 – Preset at size 3

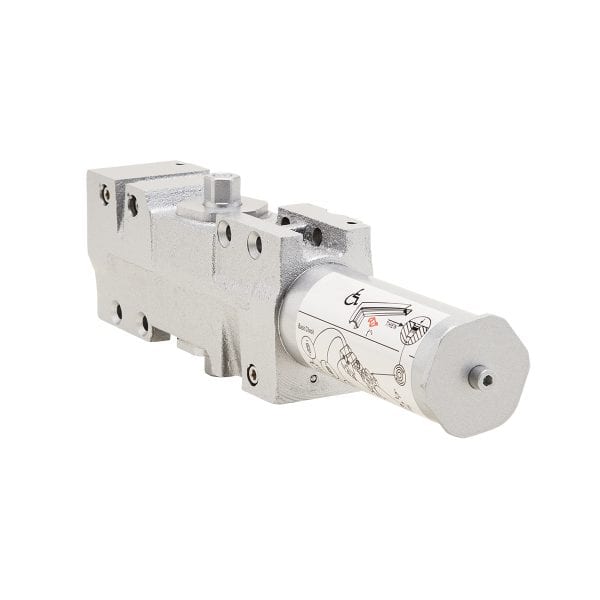

  • Heavy-duty cast iron closer body with precision rack & pinion construction
  • 2-1/4“ projection with the cover installed
  • AL/689 Aluminum Finish

Hold Open Arm

Used to hold door open in non-fire-rated applications. Heavy-duty construction designed for high use and abuse applications.

  • T-Turn Controls Hold Open Function
  • Removable Auxiliary Stop
  • Parallel Arm (Push Side) Mounting Only
  • Non-handed Design

Code Compliance

  • Meets ANSI A156.4 – Grade 1 Standards
  • Meets ADA and ANSI A117.1 Accessibility Codes
Brand

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side)

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non Handed – Completely Reversible

Speed Control

Independent latch & sweep speed controls

Backcheck

Back check intensity control standard

Valves

Staked valves to prevent backing valves out too far

Springs

Heat treated heavy-duty tempered spring for doors up to 250lbs

Cover

Full Cover

Fasteners

Thru bolts with machine screws, wood screws & Self tapping machine screws

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Non-Rated with Hold Open Arm

Warranty

Limited Lifetime Warranty

Finishes

689 Aluminum (Powder Coated)
