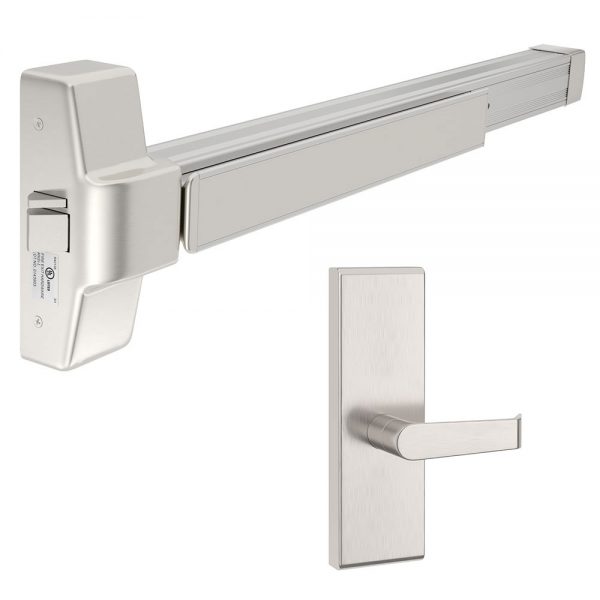

Trudoor TDE-1000R-L-BE Rim Exit Device with Blank Escutcheon Lever

Usually Ships: Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-14 blank escutcheon passage lever trim
  • ANSI Function 14, lever always free and open

Available Options:

Trudoor TDE-1000R-L-BE Heavy-Duty Grade-1 Rim Exit Device with Blank Escutcheon Lever Trim

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 14 (Passage) – lever always operable
  • UL Listing: UL Listed for panic exit hardware
  • (Optional) Fire-rating: UL Listed for “A” Label 3 hour fire doors (no dogging on fire-rated devices)
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

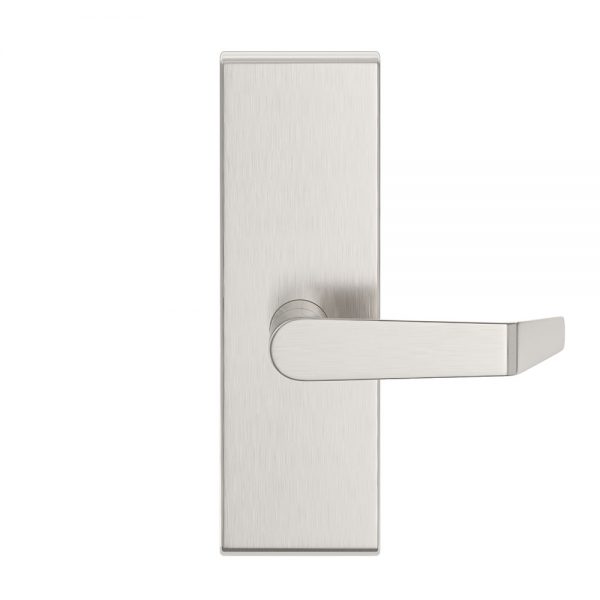

TDE-14 Blank Escutcheon Lever Trim, Keyless

  • Passage function, lever always free and open
  • Blank escutcheon, no cylinder hole
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Meets ADA requirements – A117.1 Accessibility code

codes

Brand

Finishes

BLK – Matte Black, US32D (630) Satin Stainless Steel

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

Trim

TDE-14 Blank Escutcheon Passage Lever

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards

Usage

Heavy Duty

Fire Rating

TDE-1000R: Non-Fire-Rated – TDE-F1000R: 3 Hour Fire-Rated

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Handing

Non-Handed, Field selected at the time of installation

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

Warranty

Limited Lifetime Warranty
