Trudoor TDE-1000R-NL-OP Rim Exit Device with Night Latch Cylinder Kit

Usually Ships: Same Day

Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
Includes TD-RC rim cylinder with collar, screws, and back plate
ANSI Function 03, key retracts latchbolt (optional pull sold separately)

Available Options:

Finish

Length

Fire-Rated

Clear

Quantity:

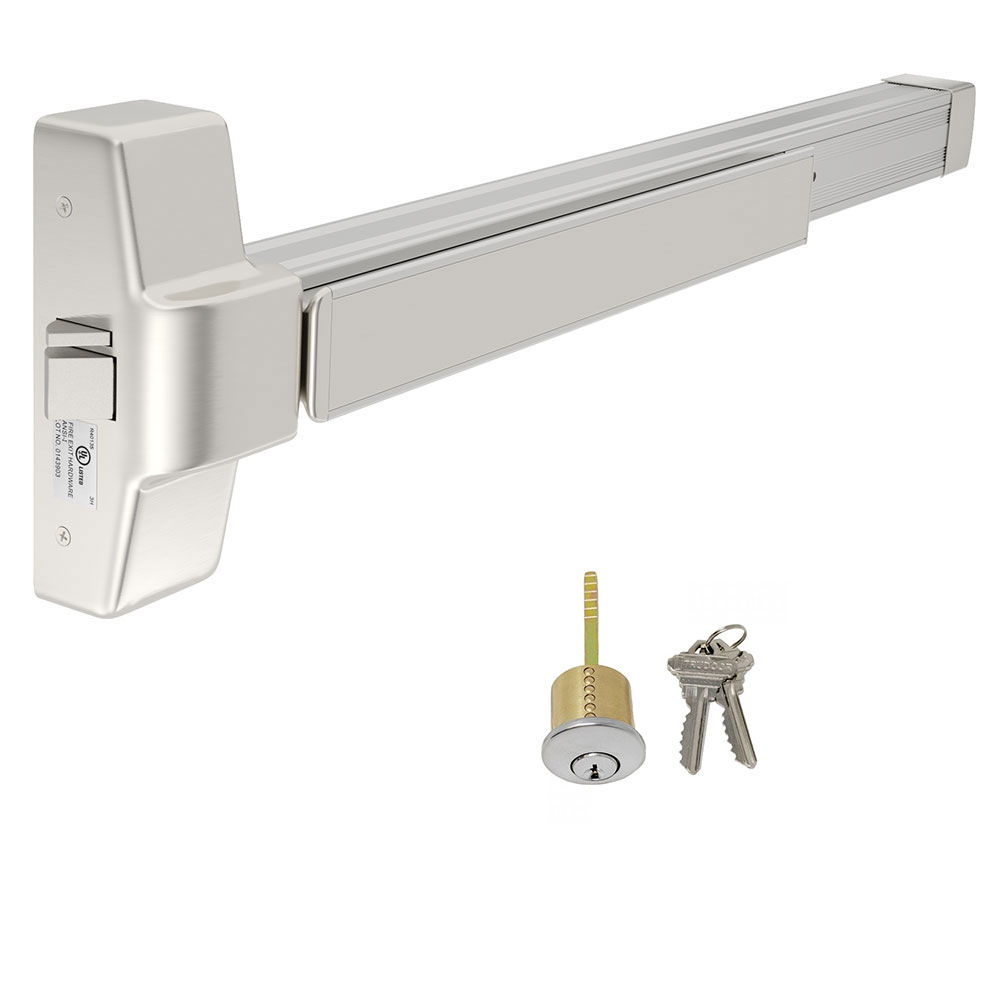

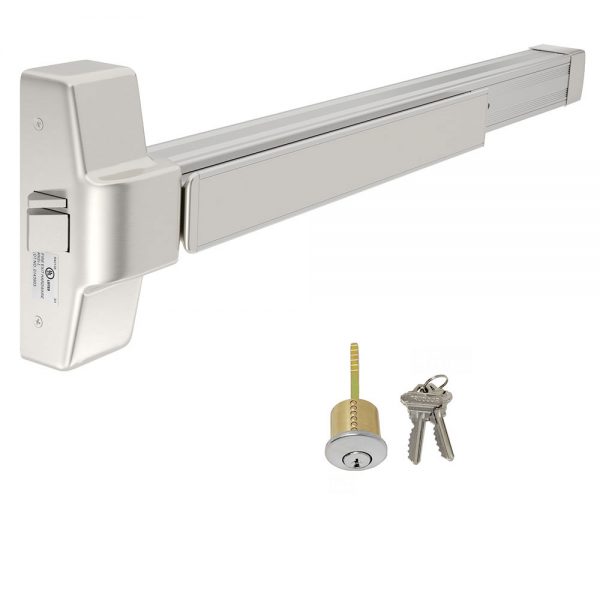

Trudoor TDE-1000R-NL-OP Heavy-Duty Grade-1 Rim Exit Device with Rim Cylinder

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

ANSI Function: 03 (Entrance by pull when latch bolt is retracted by key – key is removable only when it’s locked – optional pull sold separately)
UL Listing: UL Listed for panic exit hardware
(Optional) Fire-rating: UL Listed for “A” Label 3-hour fire doors (no dogging on fire-rated devices)
Designed for medium to heavy use
Heavy-duty extruded anodized aluminum mechanism case and cover plate
Steel chassis, center case cover, push pad, and end cap
Hex key dogging standard on panic exit device
Deadlocking latchbolt with 5/8” projection
Non-handed for easy installation
Includes ASA strike (frame) filler plate and 161 door edge filler plate

Trudoor TD-RC Rim Cylinder

6-pin, Schlage C keyway, keyed different, two keys
Installs outside – requires a hole in the door
Optional pull required (not included)
Includes collar, “break-off” mounting screws, and backplate

Brand	Trudoor
Finishes	BLK – Matte Black, US32D (630) Satin Stainless Steel
Length	3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
Cylinder	Rim Cylinder (included)
Keyway	Schlage C Keyway
Pull	Optional (not included – sold separately)
ANSI/BHMA Standard	Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage	Heavy Duty
Fire Rating	TDE-1000R: Non-Fire-Rated – TDE-F1000R: 3 Hour Fire-Rated
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
Handing	Non-Handed, Field selected at the time of installation
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners	Wood, Machine & Self Tapping Machine Screws
Stile Type	Wide (Standard)
Center Case	8” Height x 2-7/8” Wide x 2-13/16” Thick
Mechanism Case	2-3/16″ Height x 2-3/16″ Wide
Projections	3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Warranty	Limited Lifetime Warranty
