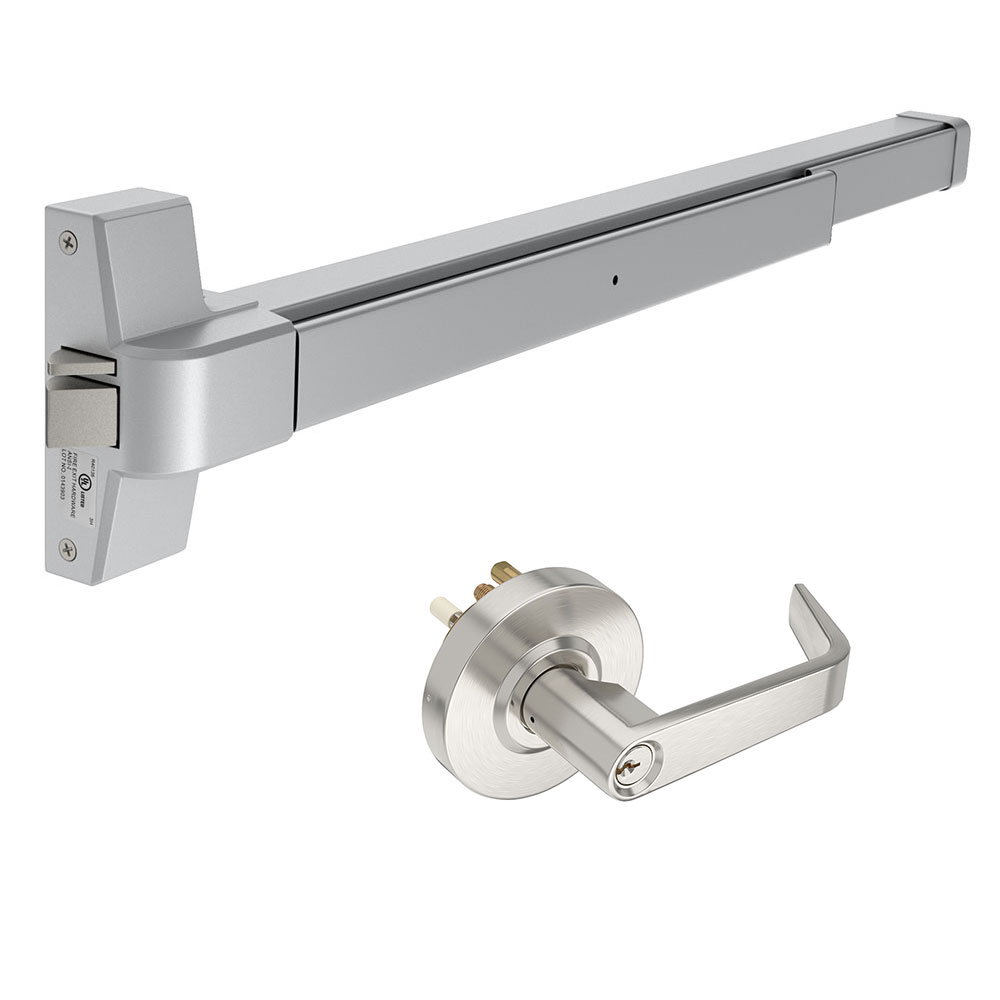

Trudoor TDE-2000R-KIL-NL Rim Exit Device with Keyed Storeroom/Night Latch Lever Trim

Usually Ships: Same Day

TDE-2000R with KIL-STOREROOM Lever (key retracts latch bolt)
Non-handed and reversible for easy installation
Lever installs in standard 2-1/8″ 161 door prep

Available Options:

Finish

Model

Length

Clear

Quantity:

Trudoor TDE-2000R-KIL-NL Rim Exit Device with Key-in-Lever Trim, Storeroom/Night Latch Function

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

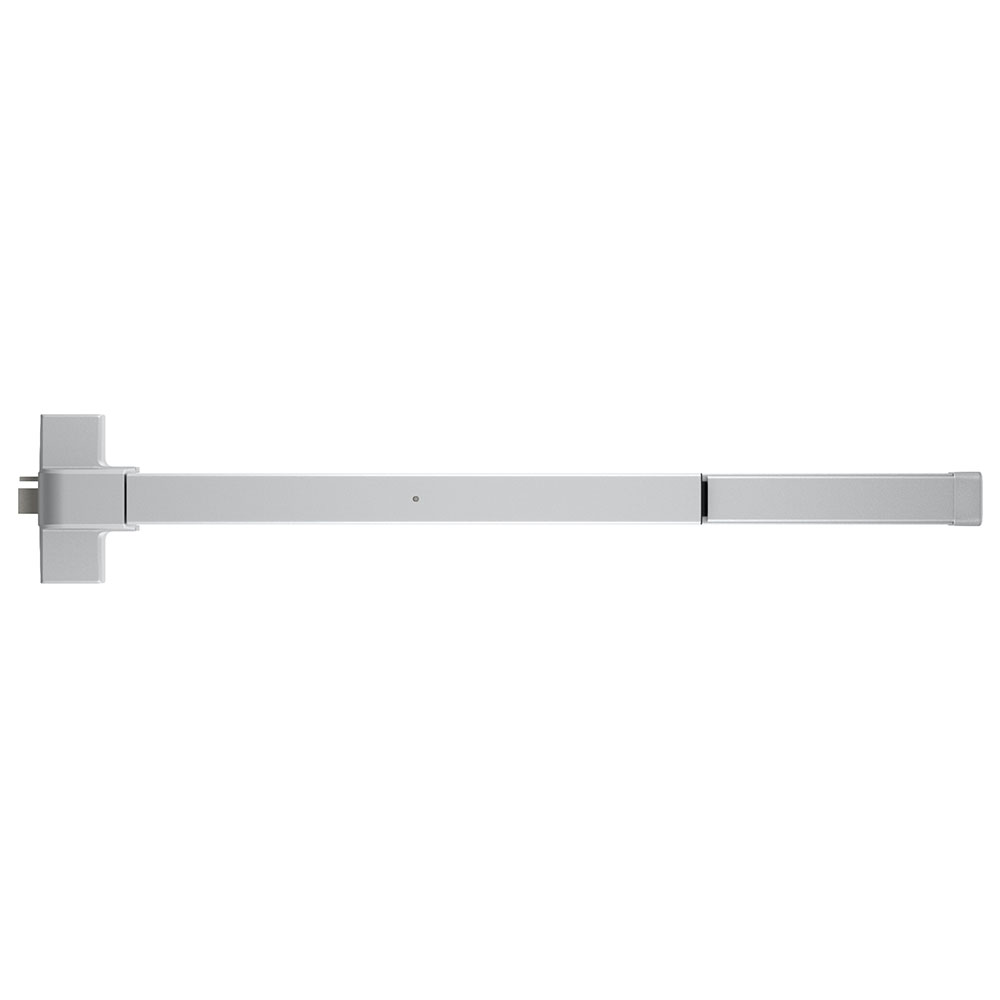

TDE-2000R: UL Listed for Panic Exit Hardware
TDE-F2000R: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)

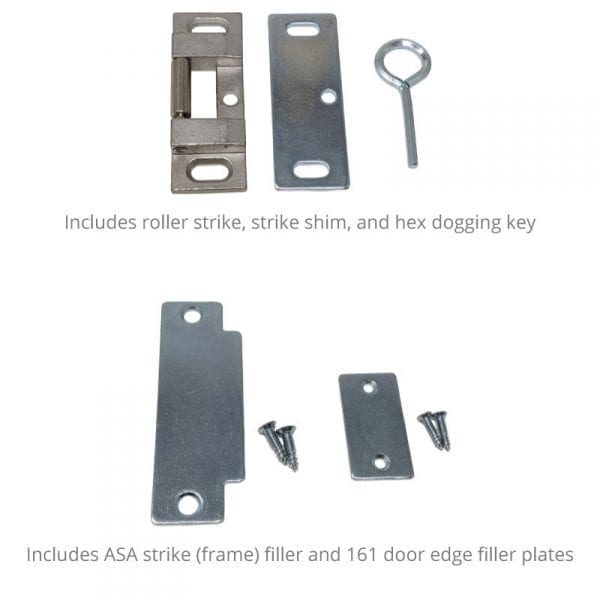

Includes ASA strike (frame) filler plate and 161 door edge filler plate
ADA compliant lever trim and meets California code for 1/2″ lever return to door face

Cross Reference

The TDE-2000R can be specified as a substitute for: Cal-Royal 5000 x 8000S / 2200 x STR05L, Design Hardware 2000R x KIL-Storeroom, Falcon 19R-KIL-NL / 20R x 214-KIL-NL, PDQ 4200 x 4S-09, Von Duprin 22L-NL, Yale 1800 / 2100 x 441F

Brand	Trudoor
Finishes	SP28/AL Aluminum Device – US26D/626 Satin Chrome Lever
Model	TDE-2000R Panic Device (w/ Dogging Feature), TDE-F2000R Fire-Rated Device (No Dogging)
Length	3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
ANSI Grade	Meets ANSI A156.3 – Grade 1 Standards
Usage	Medium Duty
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
UL Listings	TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors
Fire Rating	TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed

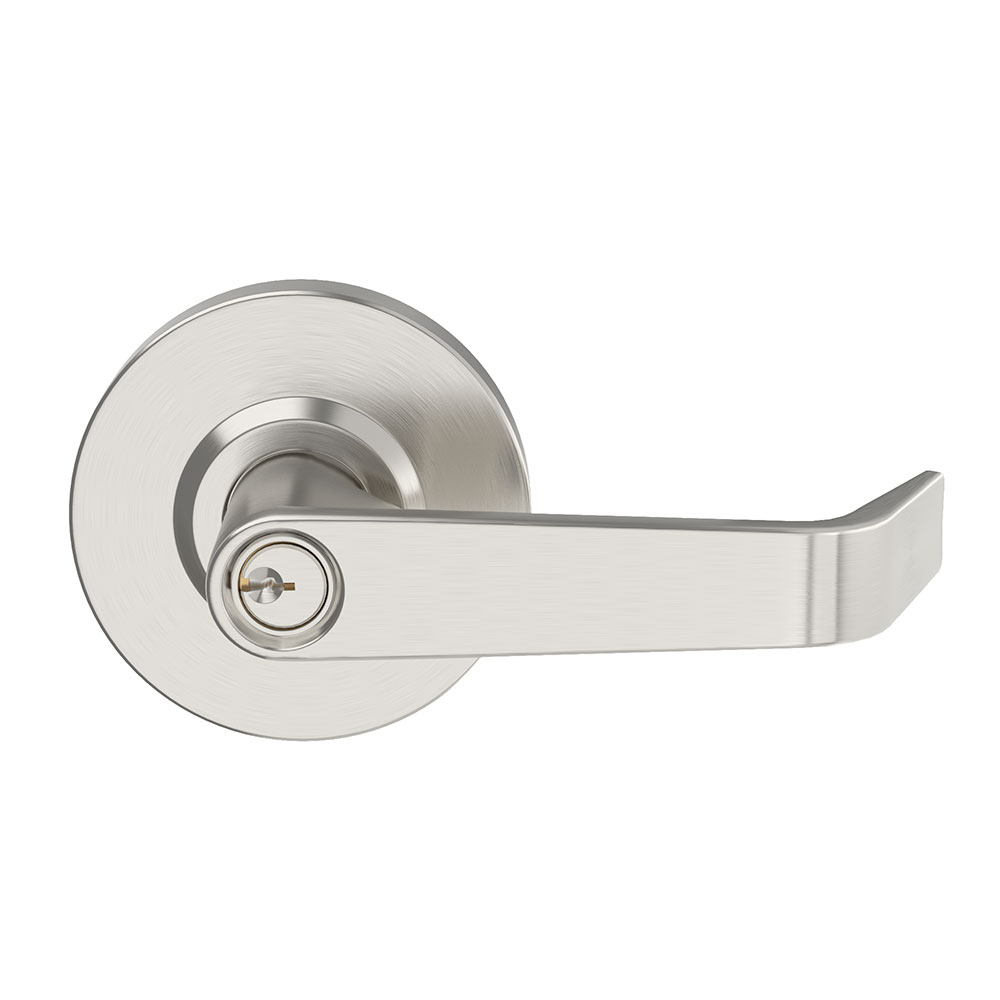

Trim	KIL-STOREROOM
Lever	5” Solid Zinc Diecast lever – 2-7/8“ total projection
Rose	3-3/8" Wrought Brass
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners	Wood, Machine & Self Tapping Machine Screws
Handing	Non Handed – Completely Reversible
Stile Type	Wide (Standard)
Minimum Stile Width	4" w/ Standard Roller Strike

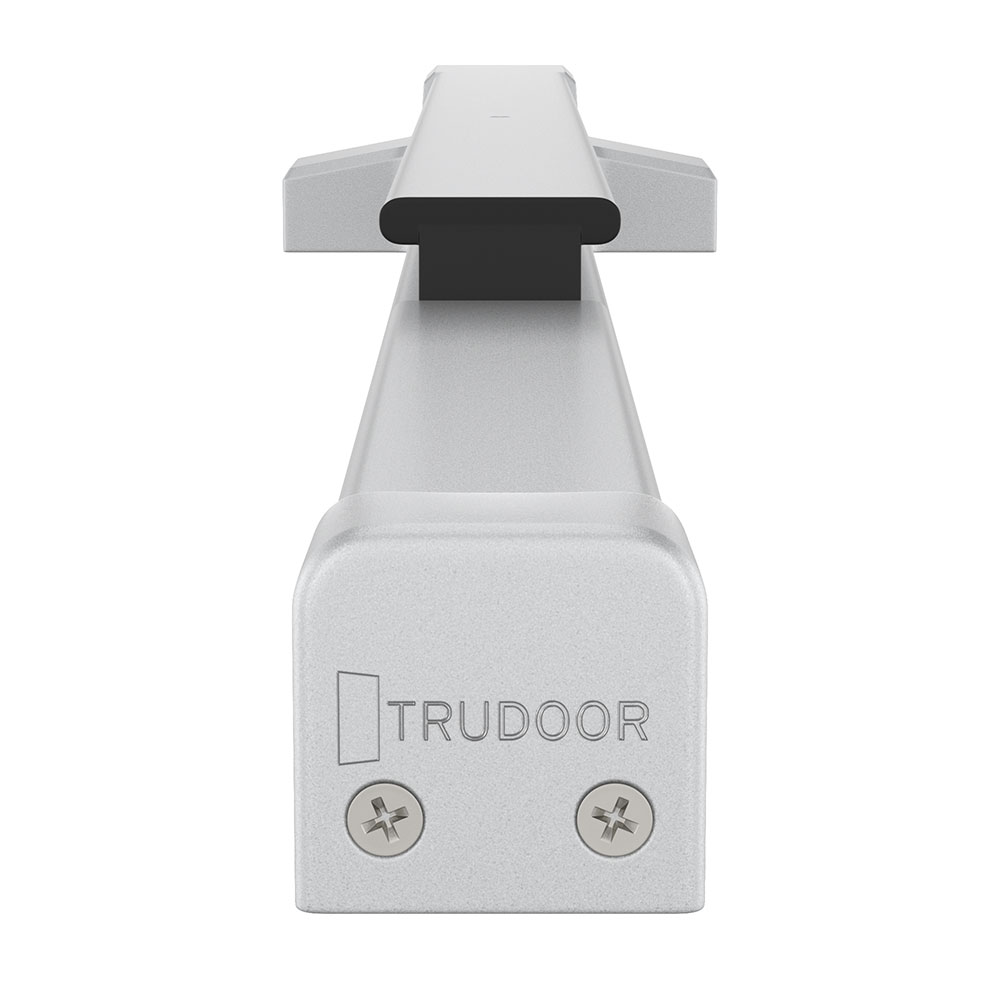

Center Case	6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case	1-5/8″ Height x 1-13/16″ Wide
Projections	2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
