Trudoor TDE-2000R-L-BE Rim Exit Device with Heavy-Duty Blank Escutcheon Lever

Usually Ships: Same Day

Meets ANSI/BHMA A156.3 Grade 1 standards
Includes TDE-14 blank escutcheon passage lever trim
ANSI Function 14, lever always free and open

Available Options:

Finish

Model

Length

Clear

Quantity:

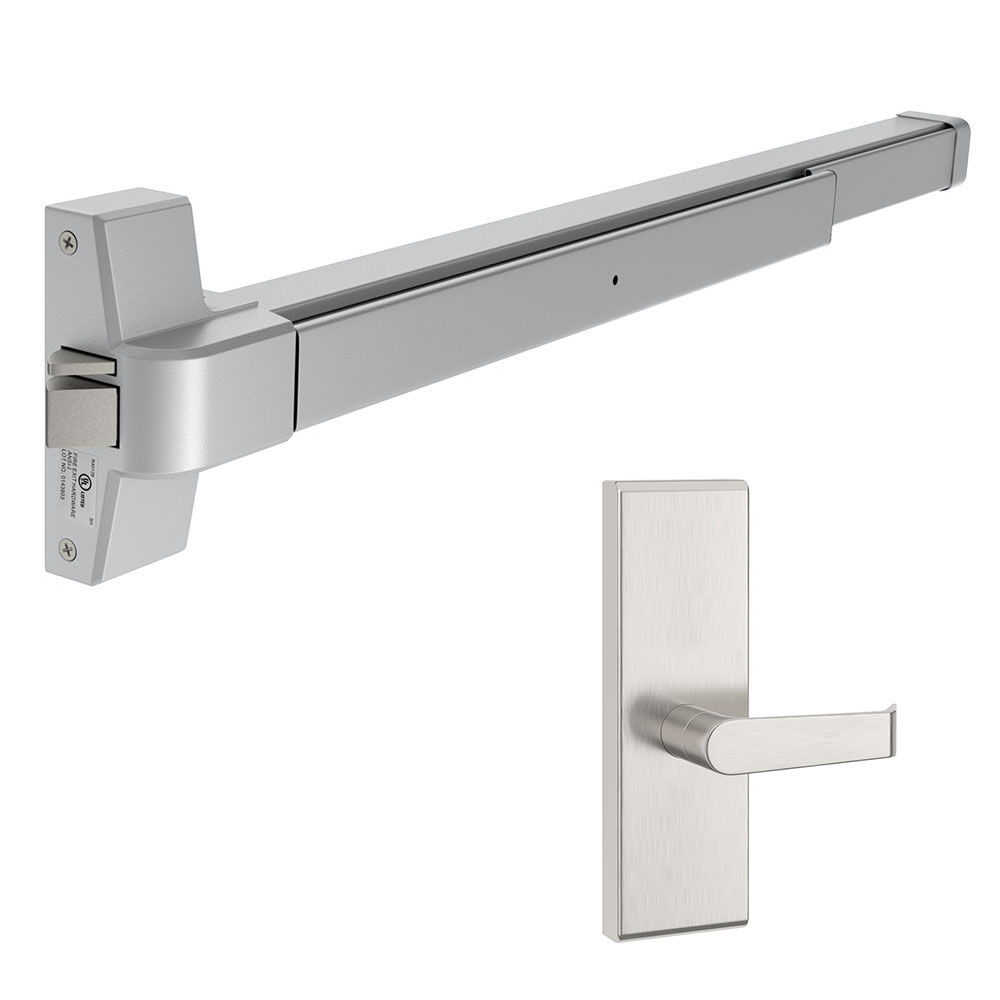

Trudoor TDE-2000R-L-BE Grade-1 Rim Exit Device with TDE-14 Blank Escutcheon Lever Trim, Passage Function

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

ANSI Function 14 (Passage) – lever always operable
TDE-2000R: UL Listed for Panic Exit Hardware
TDE-F2000R: UL Listed for “A” Label 3-Hour Fire Doors (no dogging on fire-rated devices)
Includes ASA strike (frame) filler plate and 161 door edge filler plate
ADA compliant lever trim and meets California code for 1/2″ lever return to door face

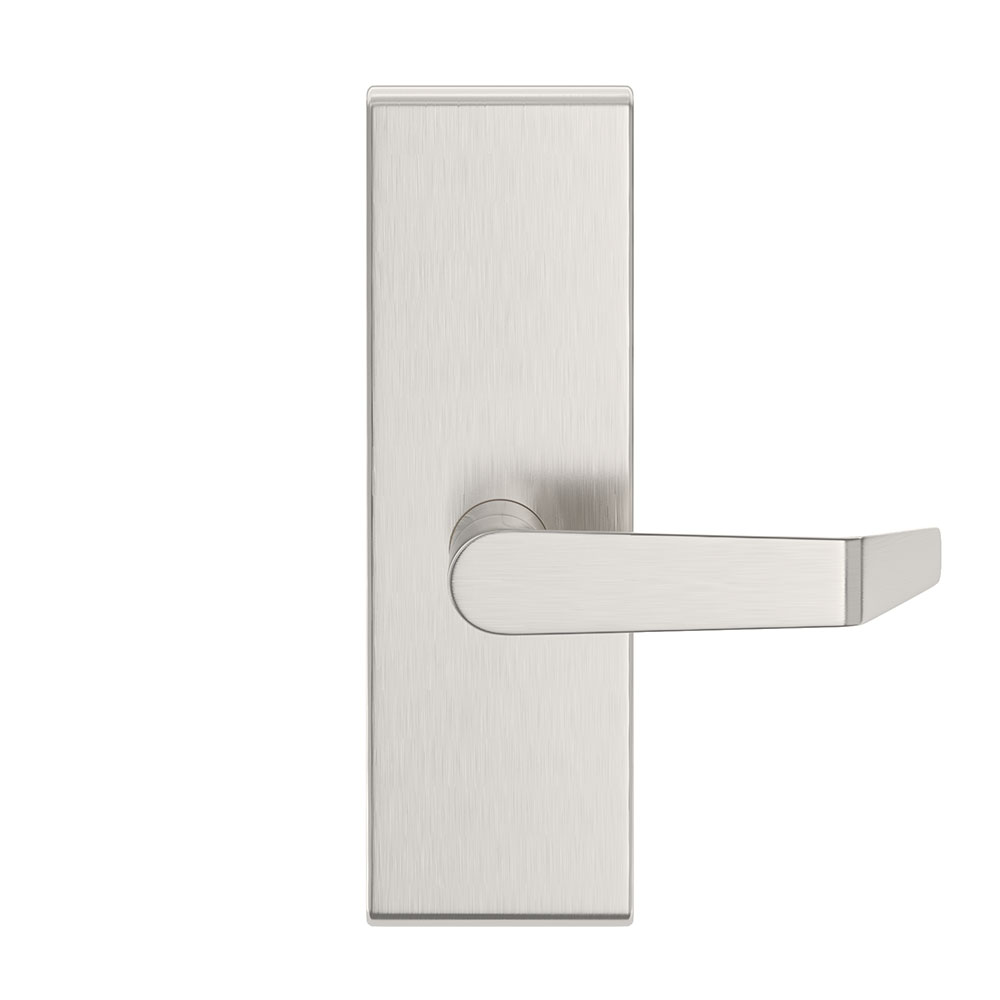

TDE-14 Blank Escutcheon Lever Trim, Keyless

Passage function, lever always free and open
Blank escutcheon, no cylinder hole
Steel, zinc dichromated chassis, stainless steel exterior housing
Thru-bolts to exit device for added strength
5″ solid stainless steel lever, 2-7/8″ total projection
Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
1-3/4″ door thickness standard
Includes thru bolt posts and 1/4″-20 machine screws for installation
Meets ADA requirements – A117.1 Accessibility code

Brand	Trudoor
Finishes	BLK – Matte Black, SP28/AL Aluminum Device – US32D/630 Satin Stainless Steel Lever
Length	3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
ANSI Grade	Meets ANSI A156.3 – Grade 1 Standards
Usage	Medium Duty
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
UL Listings	TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors
Fire Rating	TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Trim	TDE-14 Blank Escutcheon Passage Lever
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners	Wood, Machine & Self Tapping Machine Screws
Handing	Non-Handed, Field selected at the time of installation
Stile Type	Wide (Standard)
Minimum Stile Width	4" w/ Standard Roller Strike
Center Case	6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case	1-5/8″ Height x 1-13/16″ Wide
Projections	2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Warranty	Limited Lifetime Warranty
