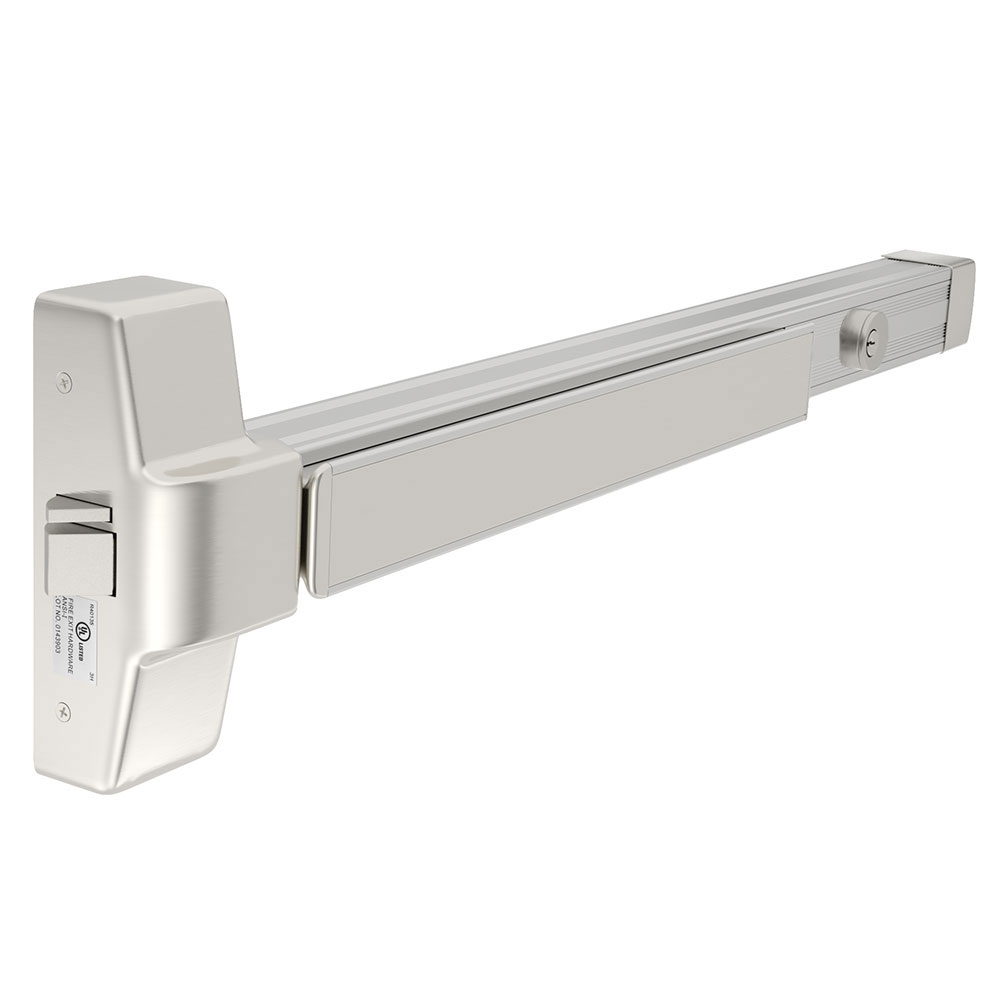

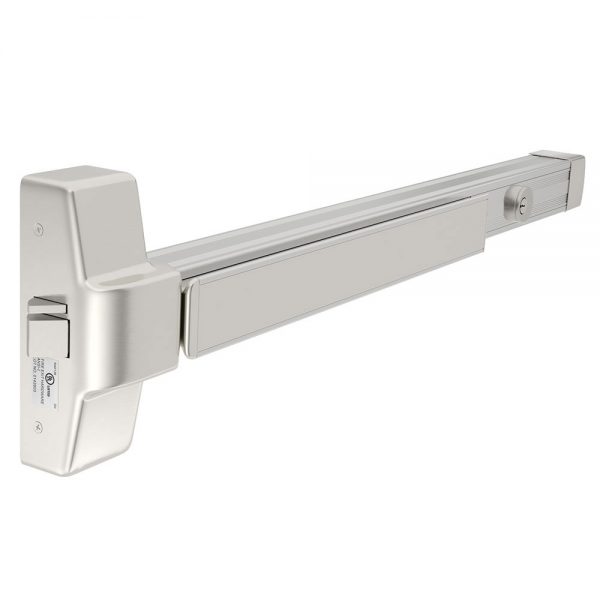

Trudoor TDE-CD-1000R-EO Heavy-Duty Panic Rim Exit Device with Cylinder Dogging Kit, Exit Only

Usually Ships: 45-60 Business Days
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes cylinder dogging kit (cylinder included)
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Product Overview

Trudoor TDE-CD-1000R Heavy-Duty Grade-1 Rim Exit Device, Cylinder Dogging Kit, Exit Only

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • Includes Design Hardware CD-1000 cylinder dogging kit (Field Installation Required)

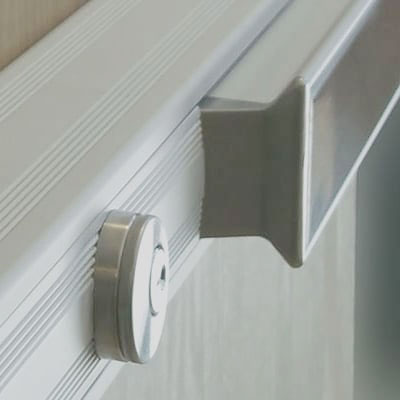

  • Cylinder dogging allows the push bar to be locked down using a key so the exit device can operate in push/pull mode to extend the life of the device

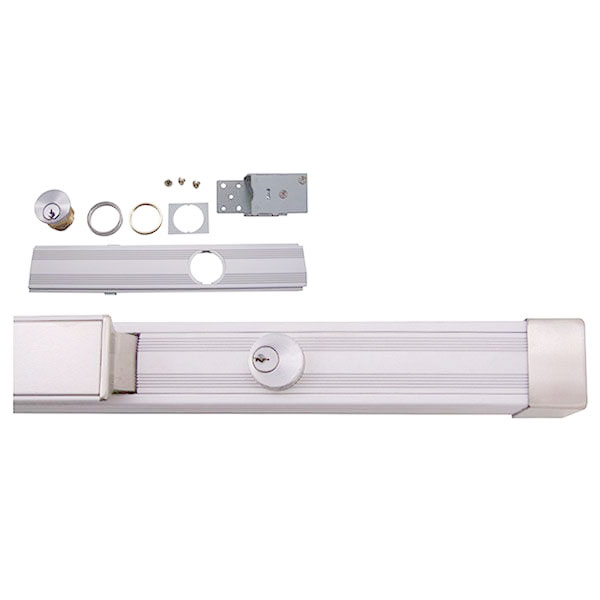

  • Included Parts: Exit Device, New Slide Cover, Cylinder Dogging Assembly, Mortise Cylinder (Schlage C Keyway), Cylinder Collar, Back Plate & Cylinder Retaining Ring
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
Brand

Finishes

US32D (630) Satin Stainless Steel
Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage

Heavy Duty
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
Fire Rating

Non Fire-Rated
Trim

None – Exit Only (Outside Trim Sold Separately)
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Dogging Feature

Cylinder Dogging (Mortise Cylinder Included)
Cylinder

1 1/8″ Mortise cylinder with std. cam (included) – 6 Pin Brass, C Kwy, with 2 Keys
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Non Handed – Completely Reversible
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Mechanism Case

2-3/16″ Height x 2-3/16″ Wide
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Warranty

Limited Lifetime Warranty
