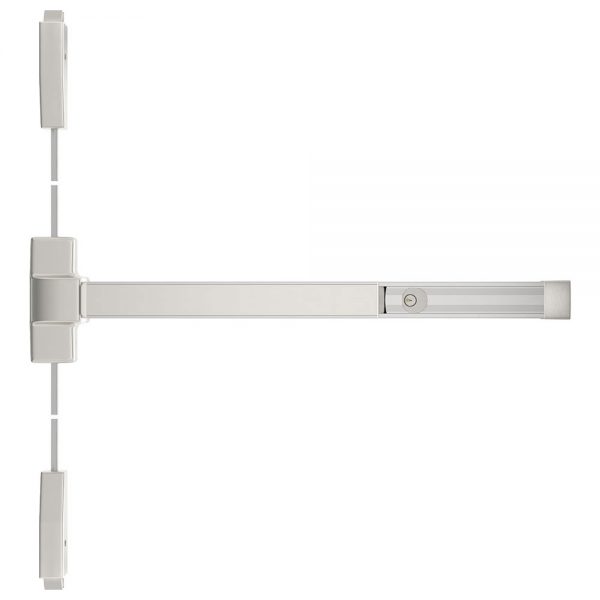

Trudoor TDE-CD-1000V-EO Heavy-Duty Surface Vertical Rod Exit Device with Cylinder Dogging Kit, Panic Rated, Exit Only

Trudoor TDE-CD-1000V Heavy-Duty Grade-1 Surface Vertical Rod Exit Device, Cylinder Dogging Kit, Panic Rated, Exit Only, Satin Stainless Steel

TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

• Exit Only (Trudoor Exit Device Trim sold separately)
• Includes Design Hardware CD-1000 cylinder dogging kit (Field Installation Required)
• Cylinder dogging allows the push bar to be locked down using a key so the exit device can operate in push/pull mode to extend the life of the device
• Included Parts: Exit Device, New Slide Cover, Cylinder Dogging Assembly, Mortise Cylinder (Schlage C Keyway), Cylinder Collar, Back Plate & Cylinder Retaining Ring
• UL Listed for Panic Exit Hardware
• Designed for heavy use
• Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
• Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
• Heavy-duty extruded anodized aluminum mechanism case and cover plate
• Steel chassis, center case cover, push pad, and end cap

Sizes

• 3’0″ x 7’0″ (for 2’4″ to 3’0″ wide door, 7’0″ height)
• 3’0″ x 8’0″ (for 2’4″ to 3’0″ wide door, 8’0″ height)
