Product Overview

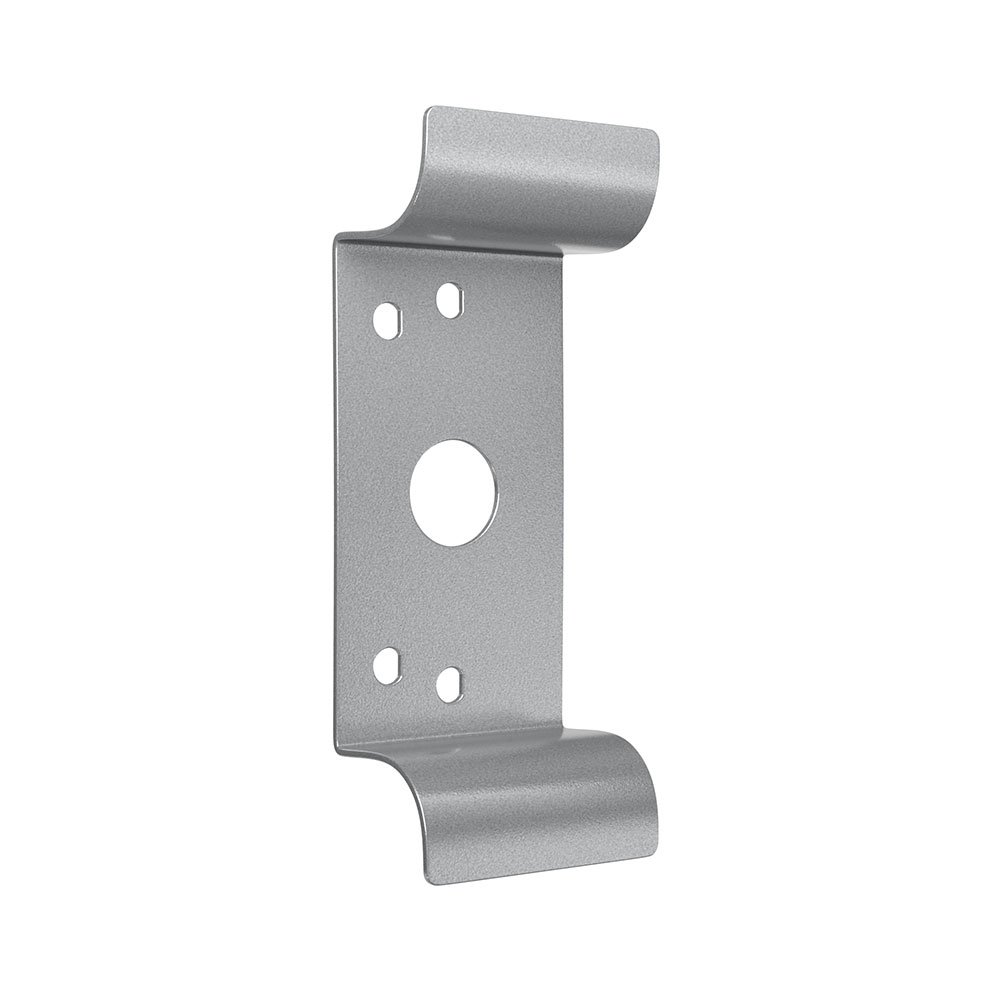

Trudoor TDE-DFP-NL Double Finger Pull with Cylinder Hole Exit Device Trim, Night Latch Function, Less Rim Cylinder
For use with Trudoor TDE-1000R and TDE-2000R Exit Devices
This trim is an ideal choice for doors that will be dogged down for push/pull applications.
- ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key – Rim cylinder sold separately)
- Thru bolts to head of exit device
- Pull Plate: 3″ wide x 8″ height x 1-11/16″ projection

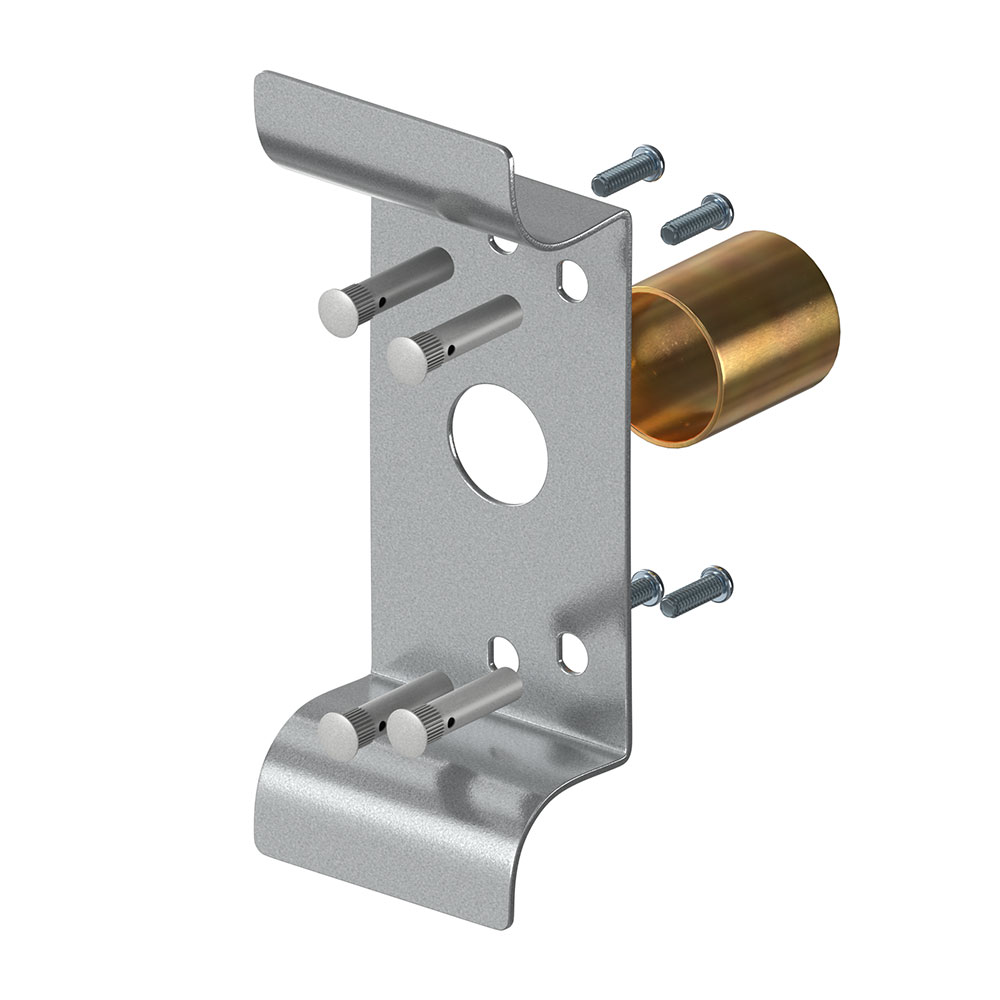

- Will cover 161 door prep – Includes cylinder sleeve for installation into 161 door prep
- Rim cylinder required (sold separately)
- Note: Not recommended for SVR devices as rods can be hard to lift with rim cylinder tailpiece
| Brand | |
|---|---|
| Finishes | 689 Aluminum (Powder Coated), BLK Black |
| Construction | Stainless steel construction |
| Function | Night Latch Pull |
| Usage | Medium Duty |
| Cylinder | 1-1/8" Rim Cylinder (Sold Separately) |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Fasteners | Includes (4) thru bolts and 1/4”-20 machine screws for installation |
| Warranty | Limited Lifetime Warranty |
