Trudoor TDE-NL Night Latch Exit Device Pull with Cylinder Hole

$58.85

Usually Ships: Same Day

For use with TDE-1000/2000 Series exit devices
Nightlatch: key retracts latchbolt
1-1/8″ rim cylinder required (sold separately)

Subtotal
Options
Total

Quantity:

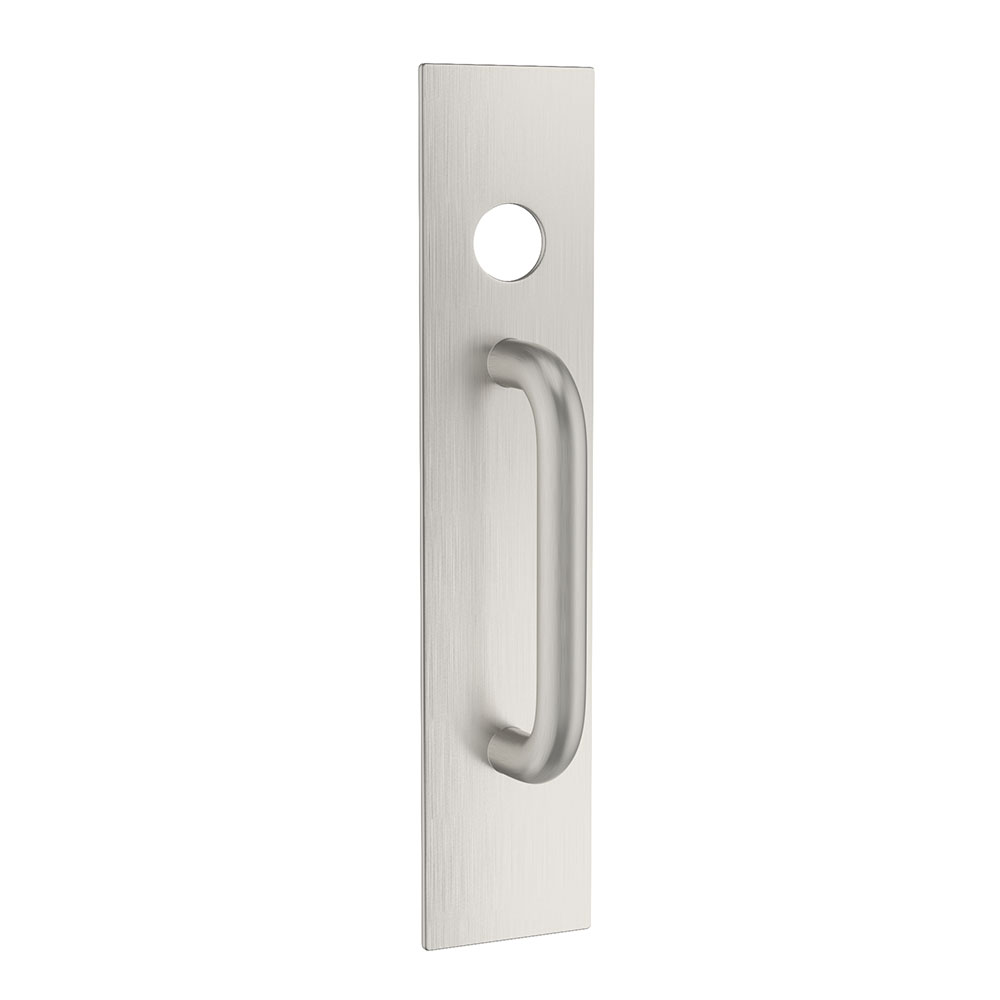

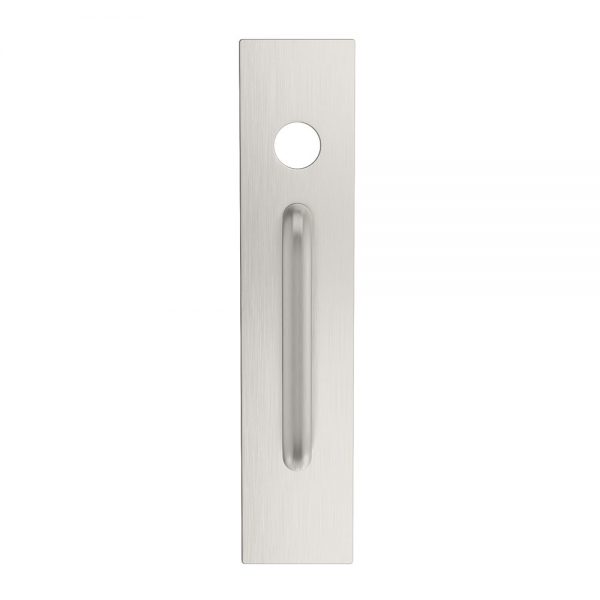

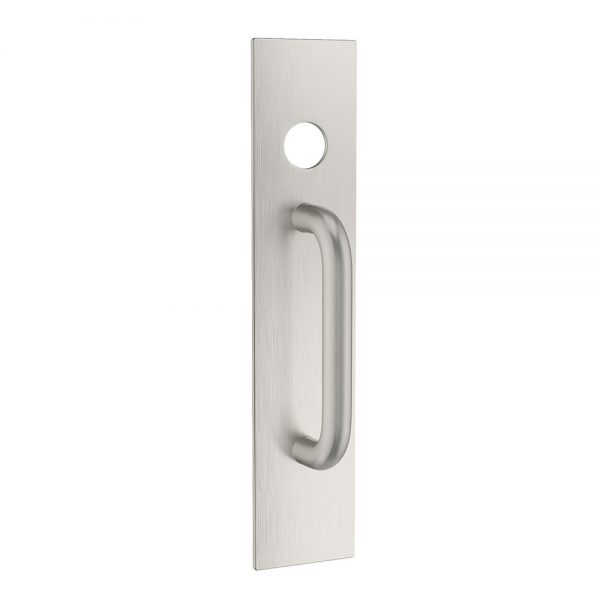

Trudoor TDE-NL Night Latch Pull Trim with Cylinder Hole, Less Cylinder, Satin Stainless Steel

For use with Trudoor TDE-1000R and TDE-2000R Exit Devices

This trim is an ideal choice for high use doors that will be dogged down for push/pull applications.

ANSI Function: 03 (Entrance by pull when latchbolt is retracted by key – Key is removable only when it’s locked)
Rim Cylinder Must be Ordered Separately
US32D/630 Stainless Steel Finish

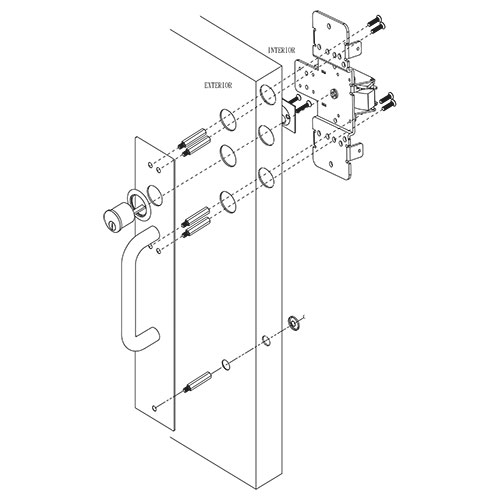

Thru Bolts to Head of Exit Device
Stainless Steel Construction

Brand	Trudoor
Finishes	US32D (630) Satin Stainless Steel
Function	Night Latch Pull
ANSI Grade	ANSI Grade 1
Usage	Heavy Duty
Escutcheon Plate Size	3″ Wide x 13-7/8″ Height x 1/16″ thick
Pull	3/4″ diameter hollow x 6-1/4″ CTC x 2-7/16″ projection
Cylinder	1-1/8" Rim Cylinder (Sold Separately)
Handing	Non-Handed
Warranty	Limited Lifetime Warranty
