Product Overview

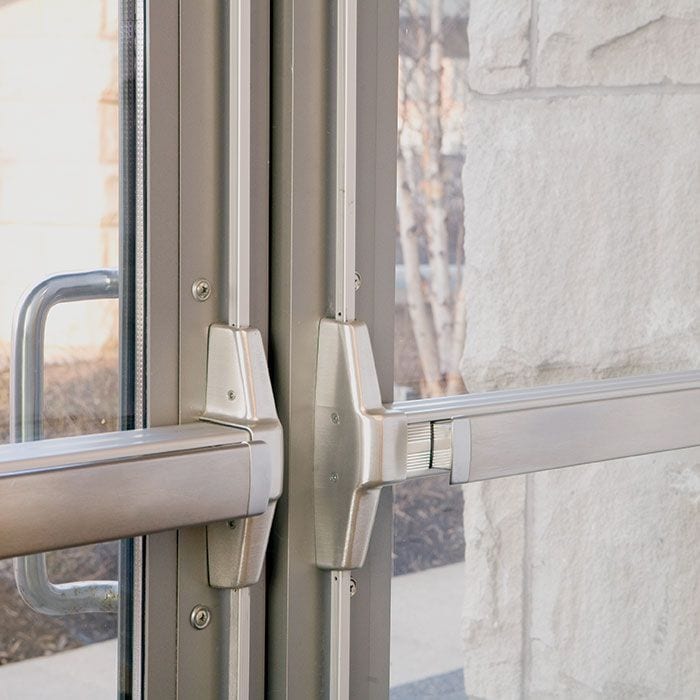

Von Duprin 3327AEO Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging
The 33 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.
- EO = Exit Only, ANSI Function 01 (33A/35A Series Outside Trim Sold Separately)
- Stock Sizes: 3′ and 4′ – can be cut to size in the field
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
| Brand | |
|---|---|
| Finishes | 313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum |
| Length | 3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| ANSI Grade | Certified ANSI A156.3-2001 Grade 1 standards |
| Usage | Heavy Duty |
| Fire Rating | Non-Fire-Rated |
| Hand | Non-handed |
| Door Height | Standard rods accommodate 7'0" |
| Latchbolt | Deadlocking |
| Dogging Feature | Half turn hex dogging standard |

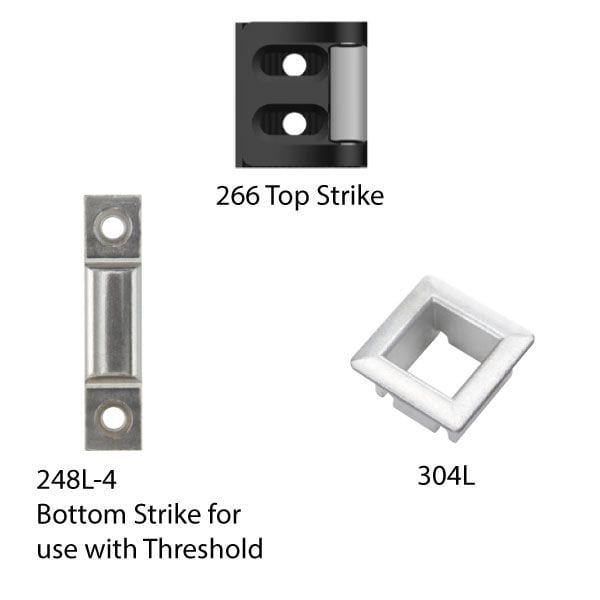

| Strikes | Device is furnished standard with 266, 248L-4 and 304L strikes |
| Stile | 1-3/4" Minimum |
| Stile Type | Narrow |
| Device Type | Surface Rod Device |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
