Product Overview
Von Duprin 35AEO Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging
The 33/35 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33/35 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.
- EO = Exit Only, ANSI Function 01 (33A/35A Series Outside Trim Sold Separately)
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3′ and 4′ – can be cut to size in the field

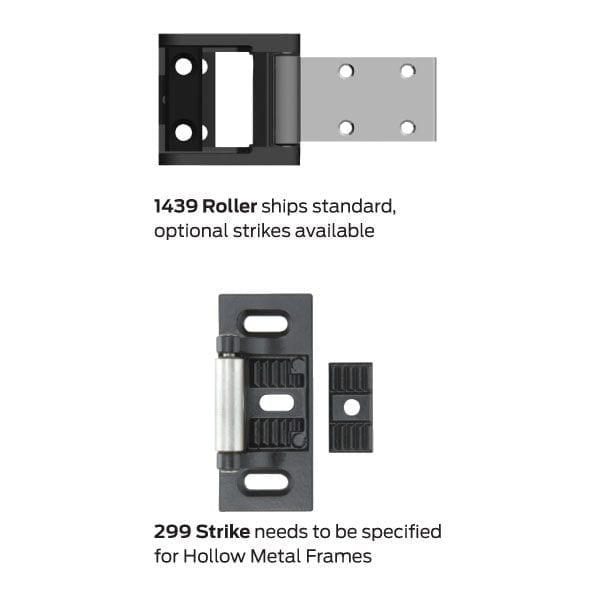

- 1439 Strike Standard
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
Brand | |
---|---|
Finishes | 313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum |
Length | 3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
Usage | Heavy Duty |
ANSI Grade | Certified ANSI A156.3-2001 Grade 1 standards |
Fire Rating | Non-Fire-Rated |
Hand | Non-handed |
Latchbolt | Deadlatching, 3/4" throw |
Dogging Feature | Half turn hex dogging standard |
Stile Type | Narrow |
Stile | 1-3/4" Minimum |
Strikes | 1439 Standard |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
