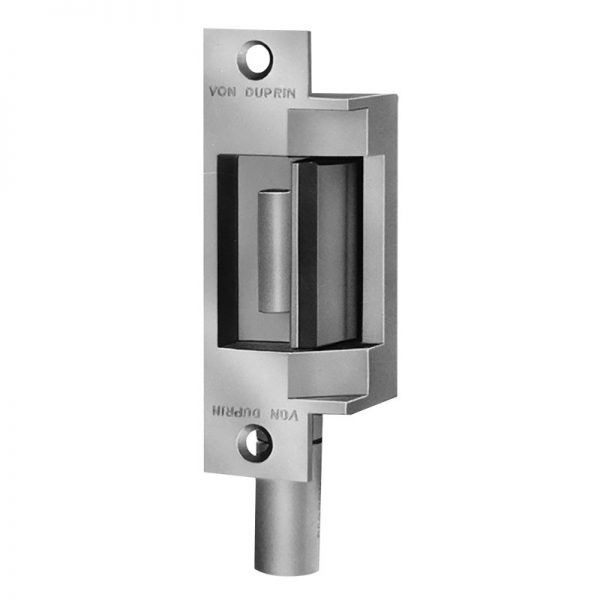

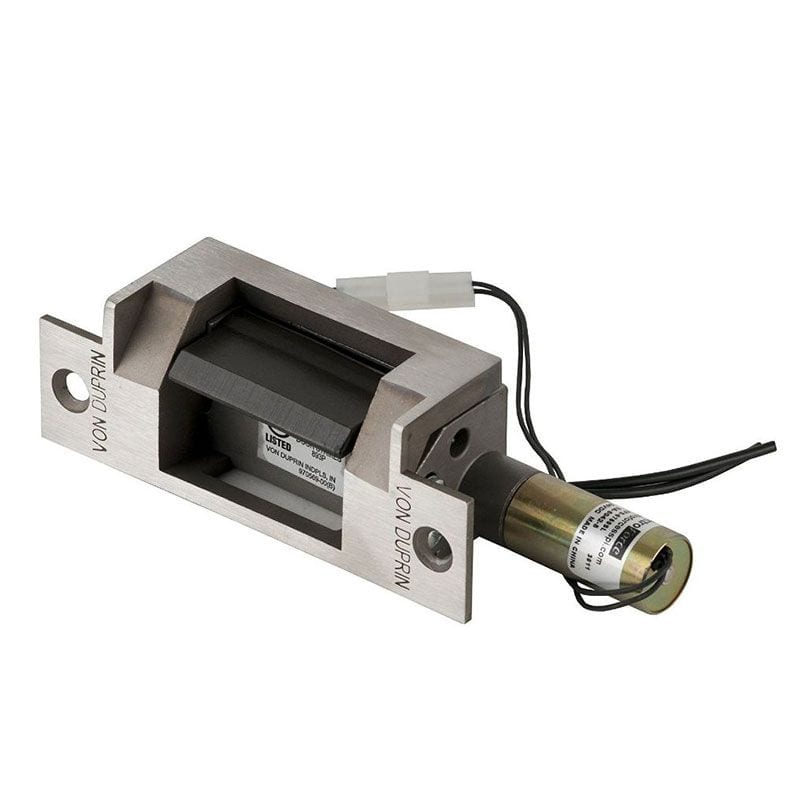

Von Duprin 6211 Electric Strike for Cylindrical or Mortise Locks

Usually Ships: 1-2 Business Days
  • For use with cylindrical and mortise locks with up to 3/4″ throw latch
  • For interior or exterior hollow metal or aluminum frames
  • UL 1034 listed for burglary-resistant electric door strikes

Available Options:

Von Duprin 6211 Electric Strike, 4-7/8″ x 1-1/4″ Faceplate, For use with Cylindrical or Mortise Locks Without Deadbolt, Satin Stainless Steel

Von Duprin electric strikes are known for their reliability, durability, and security. The 6211 strikes are made to withstand abuse and are designed to be used with mortise and cylindrical devices on single doors. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

  • For use in ANSI prep at standard height. Strike pocket inserts are provided to accommodate different manufacturers’ deadlocking trigger locations.
  • 24 VDC standard, 12 VDC option
  • Suitable for interior and exterior doors
  • Heavy-duty stainless steel construction
  • Accepts 3/4″ Throw Latchbolt
  • Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
  • Endurance 1,000,000 cycles
  • UL 10C 3-hour fire-rated (fail secure only)
  • UL 1034 listed for burglary-resistant electric door strikes
  • Static strength: 1500 lbs
  • Dynamic strength: 70 ft-lbs
  • UL 294 listed for access control system
  • Retrofits: VD 3140 / Folger Adam 712
  • FSE (Fail-Secure Standard): Requires power to be applied to unlock the strike lip. On loss of power, the strike lip is locked. Fire-rated.

Options

  • FS (Fail-Safe): Requires power to be applied to lock the strike lip. On loss of power, the strike lip is unlocked. Non-fire-rated.
  • DS: Monitors latch bolt and lock status. DS switches rated for 24 VDC at .050-2.0 amps.

Brand

Finishes

630 Satin Stainless Steel

ANSI/BHMA Standard

ANSI/BHMA 156.31, Grade 1

Usage

Heavy Duty

Fire Rating

UL 10C 3-hour fire-rated (fail secure only)

Part Type

Complete Electric Strike

Lock Type Compatibility

Cylindrical Lock, Mortise Lock

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
