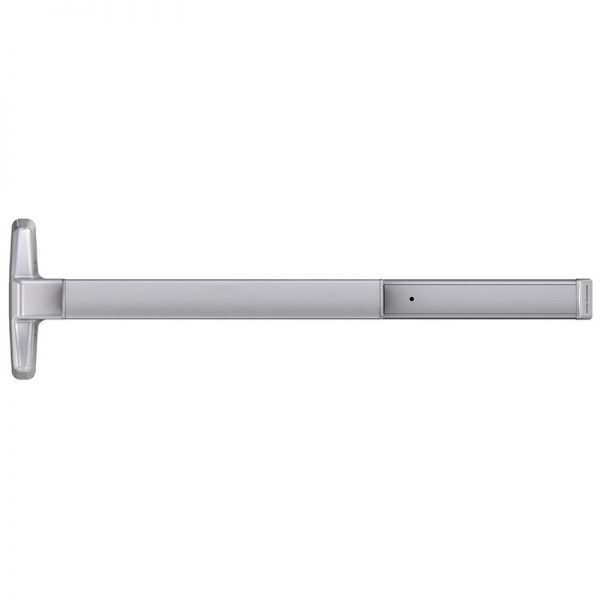

Von Duprin 7547EO Narrow Stile Concealed Vertical Rod Exit Device

Usually Ships: 20-30 Business Days

ANSI/BHMA Grade-1 Certified, Made in USA
For use with metal or aluminum doors
ANSI function 01, exit only (trim sold separately)

Available Options:

Finish

Length

Clear

Quantity:

Von Duprin 7547EO Grade 1 Concealed Vertical Rod Exit Bar, Narrow Stile Pushpad, Panic Device, 80″ to 100″ Door Height, Exit Only, Less Trim, Hex Key Dogging

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7547 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMAA156.3 2014, Grade 1.

EO = Exit Only, ANSI Function 01 (75 Series Outside Trim Sold Separately)
Standard Sizes: 3′ x 7′ (2′ 4″ to 3′ door width), 4′ x 7′ (2′ 10″ to 4′ door width)
Top rod adjustable from 6’8″ to 8’4″
ANSI/BHMA Certified, Grade-1
UL listed for panic exit hardware

Brand	Von Duprin
Finishes	313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Device Type	Concealed Rod Device
ANSI/BHMA Standard	ANSI/BHMA A156.3 2014, Grade 1 Certified
Usage	Heavy Duty
Fire Rating	Non-Fire-Rated
Vertical Rods	Round 2-piece adjustable rods – Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35 5/8" to 49 5/8". Extension rod kits available for doors over 8'4"
Hand	Field Reversible
Latchbolt	Deadlocking anti-friction top & bottom bolt, 5/8" throw

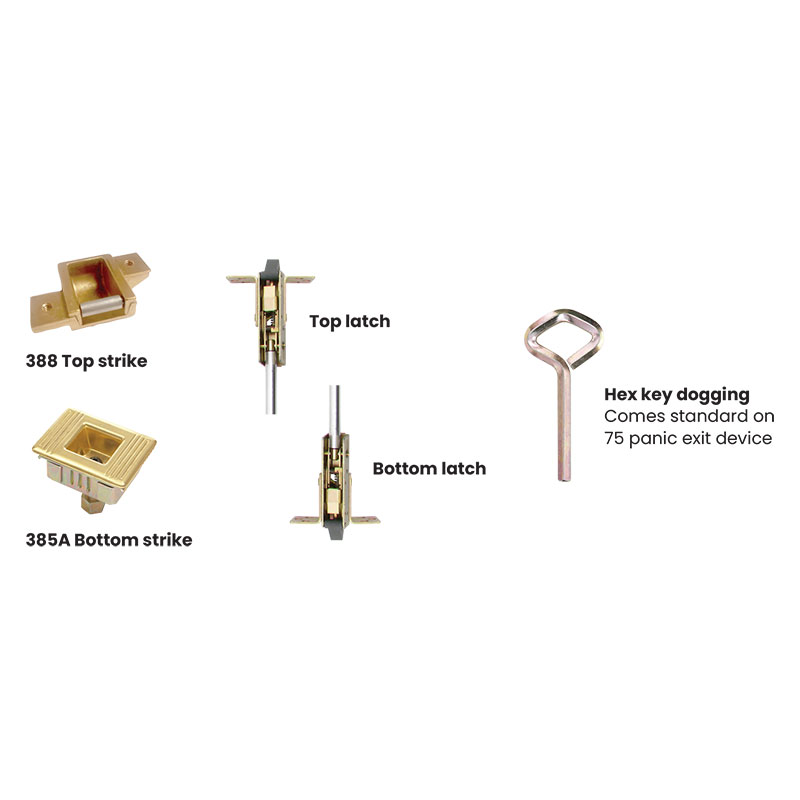

Strikes	Top: 338, Bottom: 385A
Dogging Feature	Half turn hex dogging standard
Stile Type	Narrow
Center Case	9" x 1-5/8" x 2-3/8"
Projections	Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners	Includes screws for metal and wood doors
Door Applications	1-3/4" Metal or Aluminum Doors
Warranty	3 Year
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
