Von Duprin 75EO Narrow Stile Panic Rim Exit Device

Usually Ships: 30-45 Business Days

ANSI/BHMA Grade-1 Certified, Made in USA
Typically used with aluminum doors
ANSI function 01, exit only (trim sold separately)

Available Options:

Finish
Length	Clear

Quantity:

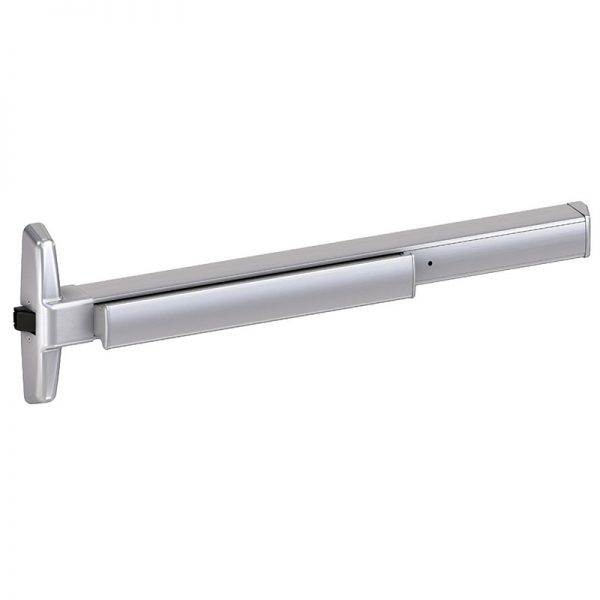

Von Duprin 75EO Grade-1 Rim Exit Device, Narrow Stile Pushpad, Panic Rated, Exit Only, Hex Key Dogging

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

75 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1.

EO = Exit Only, ANSI Function 01 (75 Series Outside Trim Sold Separately)
For use with single doors or double doors with mullions
Deadlocking latchbolt standard
Stock Sizes: 3′ (32-3/4″ actual width) and 4′ (45″ actual width) – can be cut to size in the field

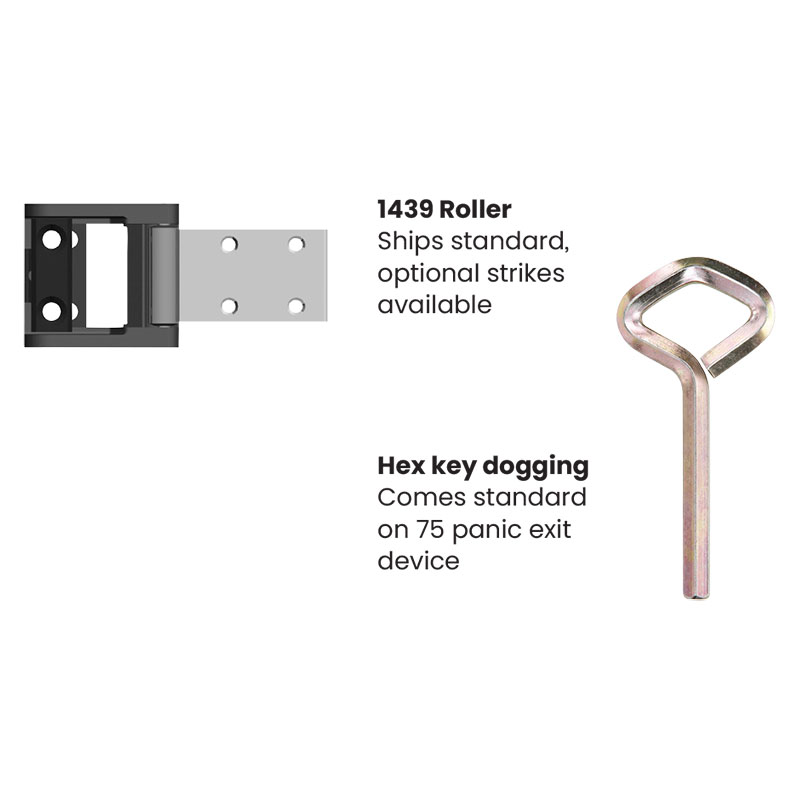

1439 Strike Standard (299 strike required for hollow metal frames)
Fits door stiles as narrow as 1-3/4″
ANSI/BHMA Certified, Grade-1
UL listed for panic exit hardware

Brand	Von Duprin
Finishes	313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
ANSI/BHMA Standard	ANSI/BHMA A156.3 2014, Grade 1 Certified
Usage	Heavy Duty
Fire Rating	Non-Fire-Rated
Hand	Non-handed
Latchbolt	Deadlocking, 5/8" throw
Dogging Feature	Half turn hex dogging standard
Strike	1439 Roller
Stile Type	Narrow
Center Case	9" x 1-5/8" x 2-3/8"
Projections	Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners	Includes screws for metal and wood doors
Door Applications	1-3/4″ Thick Doors
Warranty	3 Year
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
