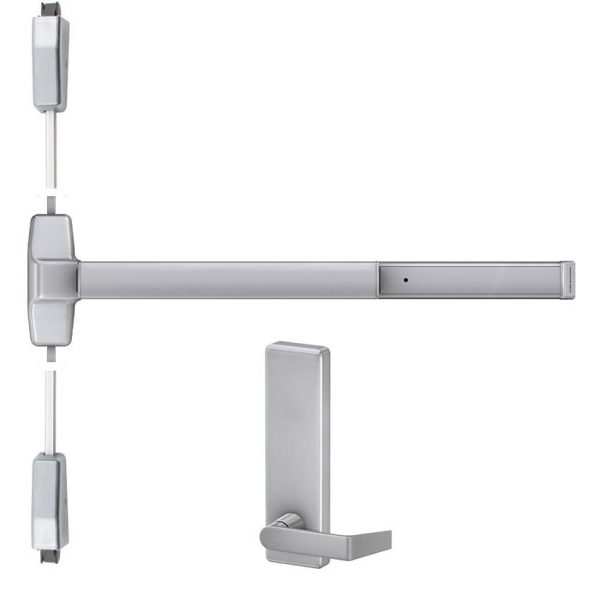

Von Duprin 7827L-BE Surface Vertical Rod Exit Device with Blank Escutcheon Lever

Usually Ships: 20-30 Business Days

ANSI/BHMA Grade-1 Certified, Made in USA
ANSI Function 14 (lever always unlocked and operable)
Includes 780L-BE-R/V-06 lever

Available Options:

Finish

Length

Fire-Rated

Clear

Quantity:

Von Duprin 7827L-BE Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 780L-BE-R/V-06 Blank Escutcheon Lever Trim, 84″ Door Height

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/ BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Standard Sizes: 3′ x 7′ (2′ 4″ to 3′ door width), 4′ x 7′ (2′ 10″ to 4′ door width)
Extension rod available for door up to 10’0″ (see part #051810)
ANSI/BHMA Certified, Grade-1
UL listed for panic exit hardware

780L-BE-R/V Lever Trim

ANSI Function: 14 – Lever always unlocked and operable (Passage)
Escutcheon plate size: 9-3/4″ x 2-3/4″ x 7/8″
Projection: 3-1/4″
#06 lever style furnished standard

Brand	Von Duprin
Finishes	313 Duranodic Dark Bronze, 711 Black Anodized Aluminum, US4 (606) Satin Brass, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Length	3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Vertical Rods	Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
Trim	780L-BE-R/V-06
ANSI/BHMA Standard	ANSI/BHMA A156.3 2014, Grade 1 Certified
Usage	Heavy Duty
Fire Rating	7827: None – 7827-F: UL/cUL Listed for use on fire doors up to 3 hours
Hand	Device Non-Handed – Lever Ships as RHR (Field Reversible)
Latchbolt	Deadlocking anti-friction top & bottom bolt, 5/8" throw
Strikes	7827: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold – 7827F: 299F Top Strike, 304L Bottom Strike
Fasteners	Includes screws for metal and wood doors
Projections	Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Center Case	7-7/8" x 2-3/4" x 2-3/8"
Stile Type	Wide (Standard)
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Device Type	Surface Rod Device
Door Applications	1-3/4″ Thick Doors
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
