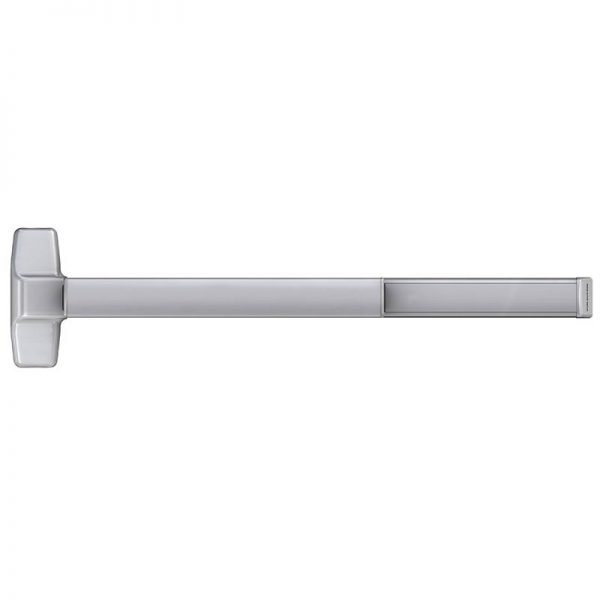

Von Duprin 7847WDCEO-F Fire-Rated Concealed Vertical Rod Exit Device for Wood Doors

Usually Ships: 30-45 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • For use with wood doors only
  • ANSI function 01, exit only (trim sold separately)

Available Options:
Clear

Product Overview

Von Duprin 7847WDCEO-F Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, Fire Rated, 80″ to 100″ Door Height, Exit Only, Less Trim, Hex Key Dogging

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7847-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware.

  • EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′ (2′ 4″ to 3′ door width), 4′ x 7′ (2′ 10″ to 4′ door width)
  • Top rod adjustable from 6’8″ to 8’4″
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware and fire hardware

Brand

Finishes

313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel
Device Type

Concealed Rod Device
ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified
Usage

Heavy Duty
Fire Rating

UL and cUL Listed – up to 3 Hours
Vertical Rods

Round 2-piece adjustable rods – Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35 5/8" to 49 5/8". Extension rod kits available for doors over 8'4"
Hand

Field Reversible
Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw
Strikes

Top: 338, Bottom: 385A
Dogging Feature

None
Stile Type

Wide (Standard)
Center Case

7-7/8" x 2-3/4" x 2-3/8"
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners

Includes screws for metal and wood doors
Door Applications

1-3/4" Thick Wood Doors
Warranty

3 Year
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
