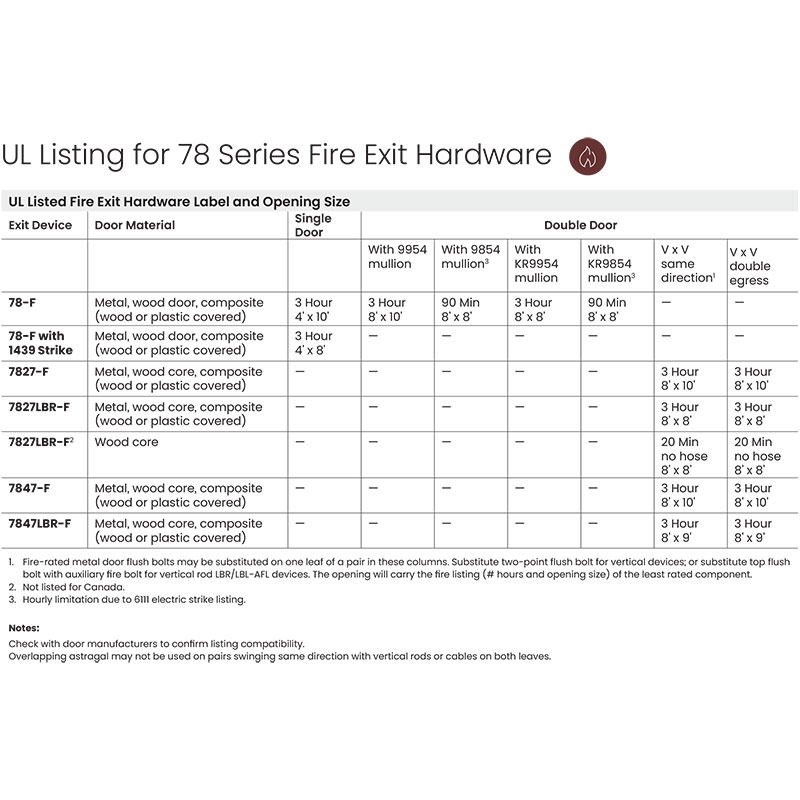

UL-Listing-for-78-Series-Fire-Exit-Hardware
78EO-F-628
299F
UL-Listing-for-78-Series-Fire-Exit-Hardware

Von Duprin 78EO-F Fire-Rated Rim Exit Device

Usually Ships: 30-45 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • UL listed fire exit hardware, up to 3 hours
  • ANSI function 01, exit only (trim sold separately)

Available Options:
Clear

Product Overview

Von Duprin 78EO-F Grade-1 Rim Exit Device, Wide Stile Pushpad, Fire Rated, Exit Only

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

78-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware.

  • EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
  • For use with single doors or double doors with mullions
  • Deadlocking latchbolt standard
  • Stock Sizes: 3′ (32-3/4″ actual width) and 4′ (45″ actual width) – can be cut to size in the field

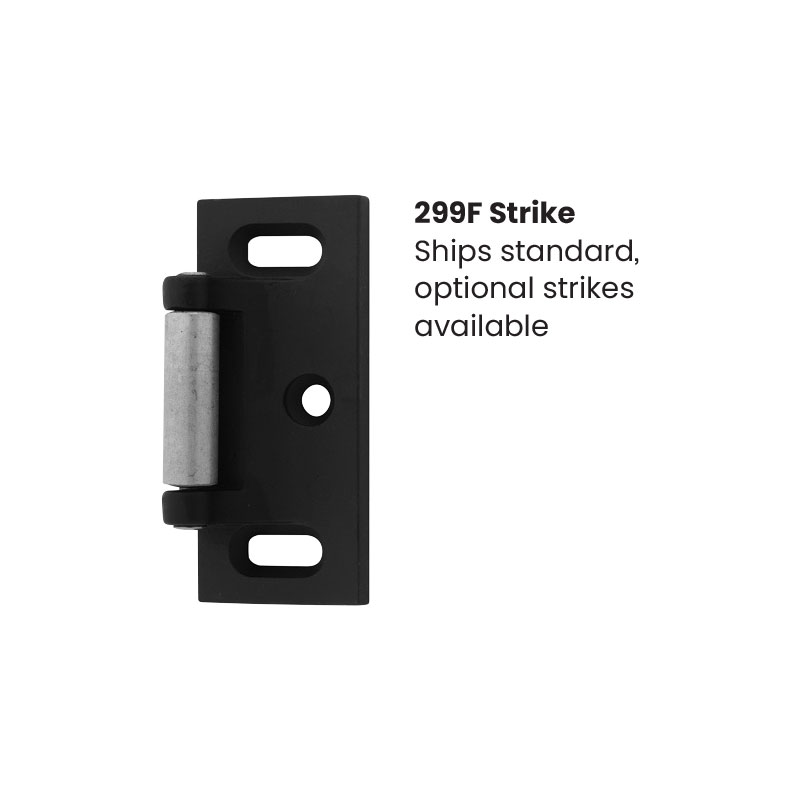

  • 299F Roller Strike Standard
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware and fire exit hardware

Brand

Finishes

313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel
ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified
Usage

Heavy Duty
Fire Rating

UL/cUL Listed for use on fire doors up to 3 hours
Hand

Non-handed
Latchbolt

Deadlocking, 5/8" throw
Dogging Feature

None
Strike

299F fire-rated roller strike
Stile Type

Wide (Standard)
Center Case

7-7/8" x 2-3/4" x 2-3/8"
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners

Includes screws for metal and wood doors
Door Applications

1-3/4″ Thick Doors
Warranty

3 Year
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
