Product Overview

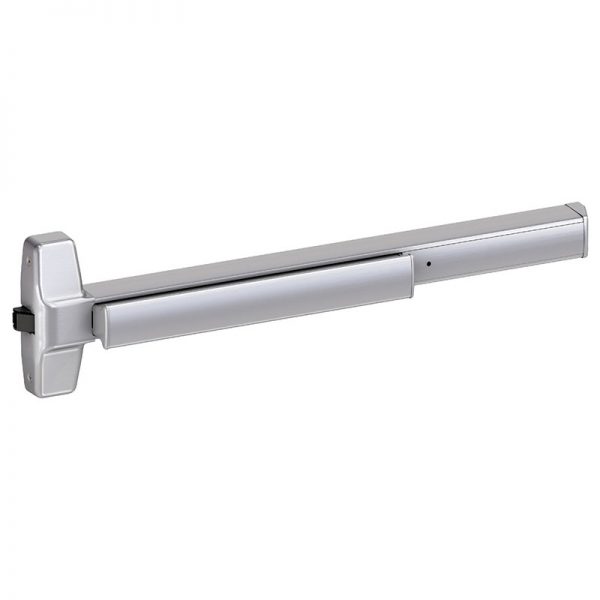

Von Duprin 78EO Grade-1 Rim Exit Device, Wide Stile Pushpad, Panic Rated, Exit Only, Hex Key Dogging
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.
78 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
- EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3′ (32-3/4″ actual width) and 4′ (45″ actual width) – can be cut to size in the field

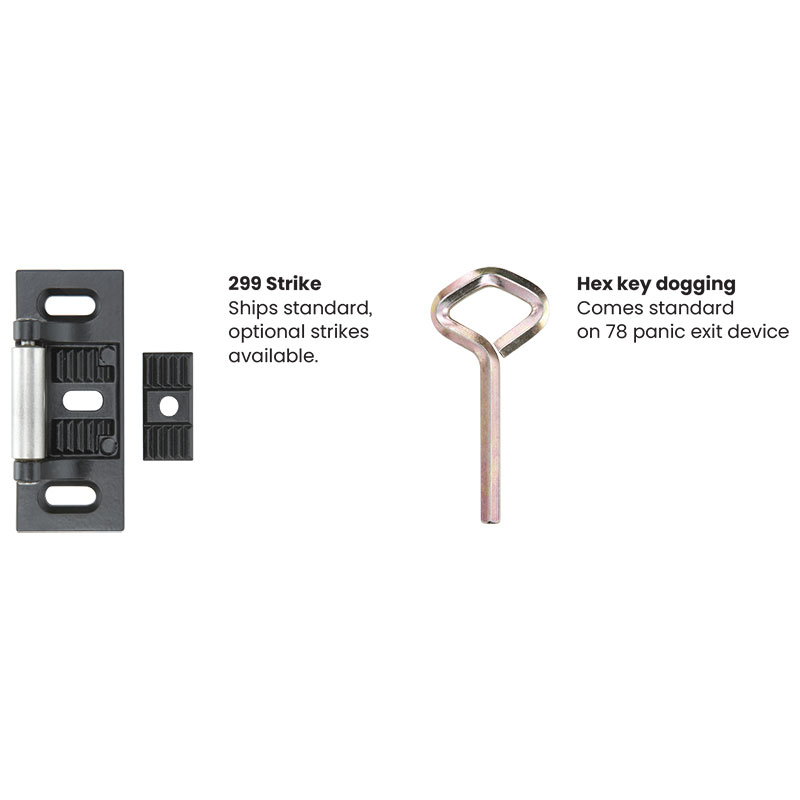

- 299 Roller Strike Standard
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
| Brand | |
|---|---|
| Finishes | 313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel |
| ANSI/BHMA Standard | ANSI/BHMA A156.3 2014, Grade 1 Certified |
| Usage | Heavy Duty |
| Fire Rating | Non-Fire-Rated |
| Hand | Non-handed |
| Latchbolt | Deadlocking, 5/8" throw |
| Dogging Feature | Half turn hex dogging standard |
| Strike | 299 roller strike standard |
| Stile Type | Wide (Standard) |
| Center Case | 7-7/8" x 2-3/4" x 2-3/8" |
| Projections | Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16" |
| Fasteners | Includes screws for metal and wood doors |
| Door Applications | 1-3/4″ Thick Doors |
| Warranty | 3 Year |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
