Product Overview

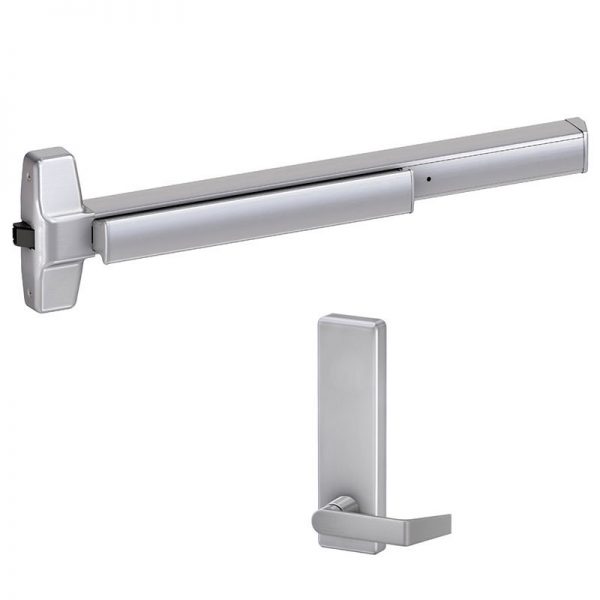

Von Duprin 78L-BE Grade-1 Rim Exit Device, Wide Stile Pushpad, Includes 780L-BE-R/V-06 Blank Escutcheon Lever Trim
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.
78 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
- Includes 780L-BE Trim, 06 Lever Design
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3′ (32-3/4″ actual width) and 4′ (45″ actual width) – can be cut to size in the field
- 299 Roller Strike Standard
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware (-F Model listed for fire exit hardware)
780L-BE-R/V Lever Trim
- ANSI Function: 14 – Lever always unlocked and operable (Passage)
- Escutcheon plate size: 9-3/4″ x 2-3/4″ x 7/8″
- Projection: 3-1/4″
- #06 lever style furnished standard
| Brand | |
|---|---|
| Finishes | 313 Duranodic Dark Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum |
| ANSI/BHMA Standard | ANSI/BHMA A156.3 2014, Grade 1 Certified |
| Usage | Heavy Duty |
| Fire Rating | 78L-BE: Non-Fire-Rated – 78L-BE-F: UL Listed A or B label Fire-Rated (3 Hours) |
| Hand | Device Non-Handed – Lever Ships as RHR (Field Reversible) |
| Latchbolt | Deadlocking, 5/8" throw |
| Dogging Feature | Hex key dogging standard on non-fired-rated devices |
| Strike | 299 roller strike standard, 299F strike with fire-rated device |
| Stile Type | Wide (Standard) |
| Center Case | 7-7/8" x 2-3/4" x 2-3/8" |
| Projections | Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16" |
| Fasteners | Includes screws for metal and wood doors |
| Door Applications | 1-3/4″ Thick Doors |
| Warranty | 3 Year |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
