Von Duprin 78NL Rim Exit Device with Night Latch Pull

Usually Ships: 20-30 Business Days

ANSI/BHMA Grade-1 Certified, Made in USA
ANSI Function 03 (night latch – key retracts latchbolt)
Includes 785NL-R/V pull (cylinder sold separately)

Available Options:

Finish

Length

Fire-Rated

Clear

Subtotal
Options
Total

Quantity:

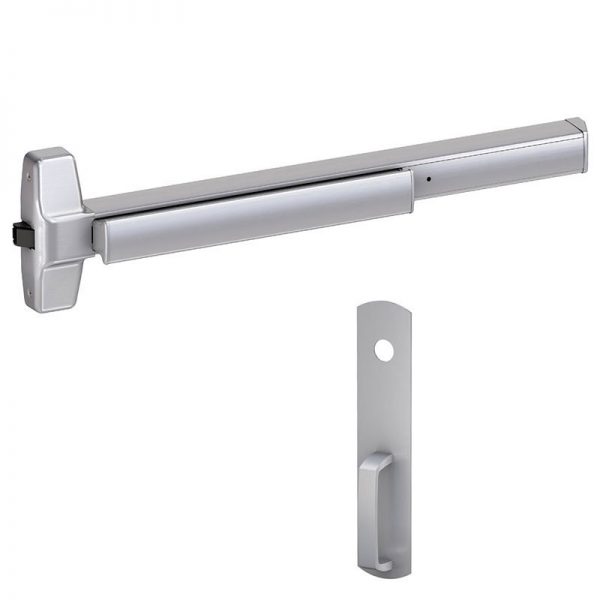

Von Duprin 78NL Grade-1 Rim Exit Device, Wide Stile Pushpad, Includes 785NL Night Latch Pull Trim, Less Cylinder

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

78 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Includes 785NL Pull Trim
For use with single doors or double doors with mullions
Deadlocking latchbolt standard
Stock Sizes: 3′ (32-3/4″ actual width) and 4′ (45″ actual width) – can be cut to size in the field
299 Roller Strike Standard
ANSI/BHMA Certified, Grade-1
UL listed for panic exit hardware (-F Model listed for fire exit hardware)

785NL Pull Trim

ANSI Function: 03 – Pull-night latch – Key retracts latch bolt
Escutcheon plate size: 3″ x 14-3/16″ x 3/32″
Pull CTC: 5-1/2″
Projection: 2″
Cylinder must be ordered separately – Requires rim cylinder

Brand	Von Duprin
Finishes	313 Duranodic Dark Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
ANSI/BHMA Standard	ANSI/BHMA A156.3 2014, Grade 1 Certified
Usage	Heavy Duty
Fire Rating	78NL: Non-Fire-Rated – 78NL-F: UL Listed A or B label Fire-Rated (3 Hours)
Cylinder	Requires rim cylinder (sold separately)
Hand	Non-handed
Latchbolt	Deadlocking, 5/8" throw
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Strike	299 roller strike standard, 299F strike with fire-rated device
Stile Type	Wide (Standard)
Center Case	7-7/8" x 2-3/4" x 2-3/8"
Projections	Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Fasteners	Includes screws for metal and wood doors
Door Applications	1-3/4″ Thick Doors
Warranty	3 Year
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
