Product Overview

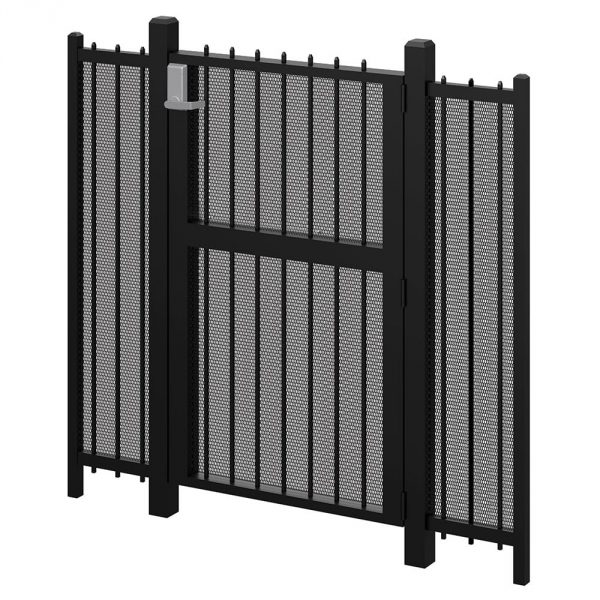

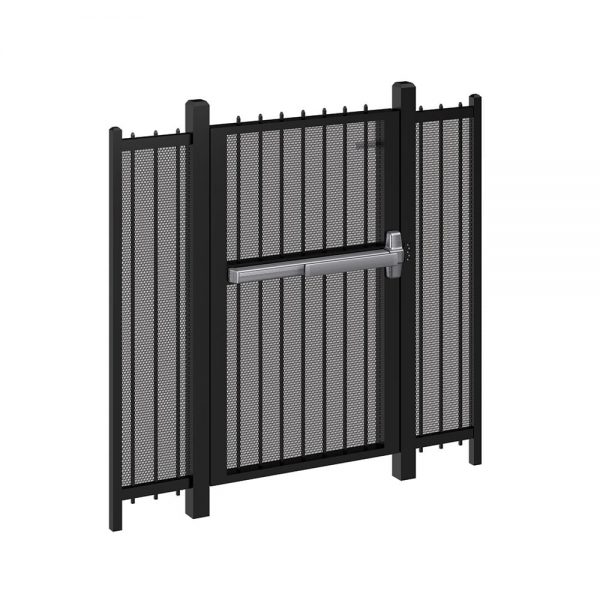

Von Duprin Grade 1 Exit Device for Pool Gate with 252L-BE Lever, Weather Resistant
Von Duprin’s pool gate hardware is designed and built to meet the very specific needs of pool enclosures. This customized hardware solution from Von Duprin features an exit device paired with special trim to address the specific application need for pool enclosures with self-closing/self-latching gates.
- Designed to meet specific needs of pool enclosures
- Weather-resistant components ideal for outdoor applications
- Stock Sizes: 3′ and 4′ – Cut to size in field
- Gates must swing away from the pool – Outside lever must be at least 54” from finished floor or concrete
- Mounting height requirement for panic hardware – 34-48” above the floor
- Exit device and lever only (gate/fence not included)
252L-BE Lever Trim
- ANSI Function: 14 – Lever always operable (no cylinder)
- Field reversible – ships as RHR
- Sprayed finishes: SP28 (689) Aluminum or SP313 (695) Dark Bronze
| Brand | |
|---|---|
| Finishes | 313 Duranodic Dark Bronze, US26D (626) Satin Chrome |
| Model | 9852L-BE (Smooth Case & Cover Plates), 9952L-BE (Grooved Case & Cover Plates) |
| Length | 3'0", 4'0" |
| Trim | 252L-BE (Passage – Lever Always Operable, No Cylinder) |
| Hand | Device Non-Handed – Lever Ships as RHR (Field Reversible) |
| Latchbolt | Deadlatching, 3/4" throw |
| Strike | 699 Roller Strike |
| Dogging Feature | None |
| ANSI Grade | ANSI/BHMA 156.3 – 2014, Grade 1 |
| Usage | Heavy Duty |
| Fire Rating | None |
| UL Listing | UL Listed for panic exit hardware (UL 305) |
| ADA Compliance | Compliant to ADA 1010.1.9 Door Operations |
| Pool Code Compliance | Meets International Building Code for Pool Enclosures |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
