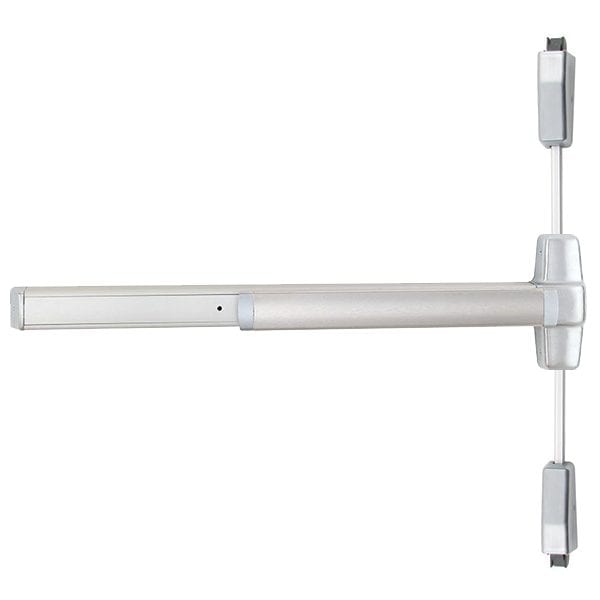

Von Duprin 9827EO/9827EO-F Surface Vertical Rod Exit Device

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Designed for high use and abuse applications
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Product Overview

Von Duprin 9827EO Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 84″ Door Height, Exit Only

The 9827 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827-F model is fire-rated for pairs of doors up to 8′ x 10′ – UL listed for fire exit hardware.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″ – See part # 051810)
  • Designed for high use and abuse in institutional applications
  • 9827F Model UL listed for fire exit hardware

Brand

Finishes

313 Duranodic Dark Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel
Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Hand

Non-handed
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

9827-EO: Non-Fire-Rated – 9827-EO-F: UL Listed A or B label Fire-Rated (3 Hours)
Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
Strikes

9827: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold – 9827F: 299F Top Strike, 304L Bottom Strike
Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw
Fasteners

Includes screws for metal and wood doors
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Center Case

8" x 2-3/4" x 2-3/8"
Stile Type

Wide (Standard)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Device Type

Surface Rod Device
Door Applications

1-3/4″ Thick Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Von_Duprin_98_9927_Surface_Vertical_Rod_Exit_Device_Installation_Instructions
