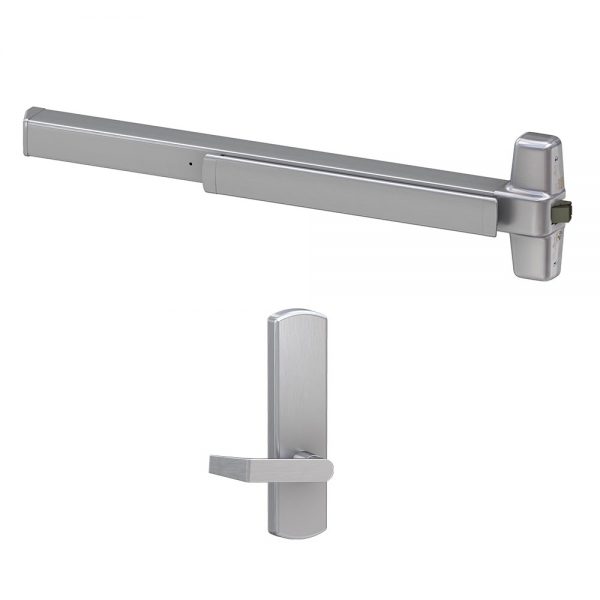

Von Duprin 98L-BE Rim Exit Device with Passage Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 14 (lever always unlocked and operable)
  • Includes 996L-BE-R/V-06 lever

Available Options:

Product Overview

Von Duprin 98L-BE Grade 1 Rim Exit Device with Lever Trim, Wide Stile Pushpad, Passage Function, 06 Lever with Escutcheon, Field Reversible

High-performance, wide stile rim exit device with heavy-duty lever trim for high use and abuse applications

The 98 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings.

  • The 98 Series features a smooth mechanism case
  • Designed for high use in commercial and institutional applications
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

996L-BE Blank Escutcheon Lever Trim

  • ANSI Function: 14 – Lever always operable (no cylinder)
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard
  • Field reversible – ships as RHR

Brand

Finishes

US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel
Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Stile Type

Wide (Standard)
Trim

996L-BE (Passage – Lever Always Operable, No Cylinder)
ANSI Function

F14
Hand

Device Non-Handed – Lever Ships as RHR (Field Reversible)
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

98L-BE: Non-Fire-Rated – 98L-BE-F: UL Listed A or B label Fire-Rated (3 Hours)
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Latchbolt

Deadlatching, 3/4" throw
Strike

299 roller strike standard, 299F strike with fire-rated device
Fasteners

Includes screws for metal and wood doors
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Center Case

8" x 2-3/4" x 2-3/8"
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Door Applications

1-3/4″ Thick Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions Von_Duprin_994_996L_L-BE_Breakaway_Trim_for_Rim_and_Vertical_Rod_Device_Installation_Instructions
