Product Overview

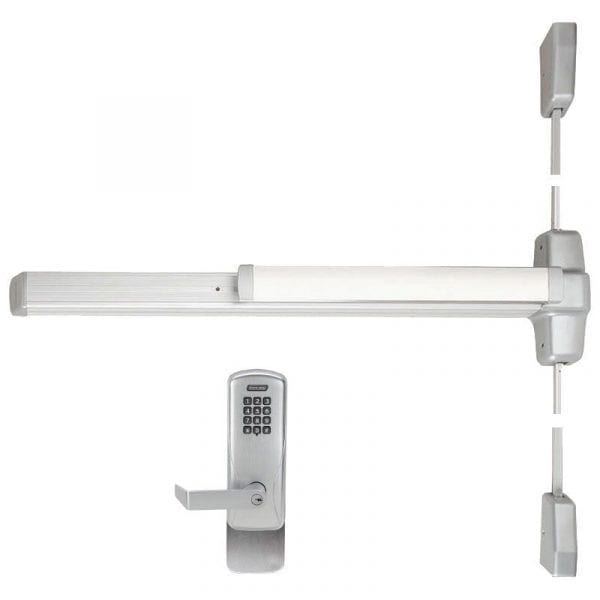

Von Duprin 9927 Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, CO-100-993S-70-KP Trim, Rhodes Lever, 84″ Door Height
The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1.
- Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities

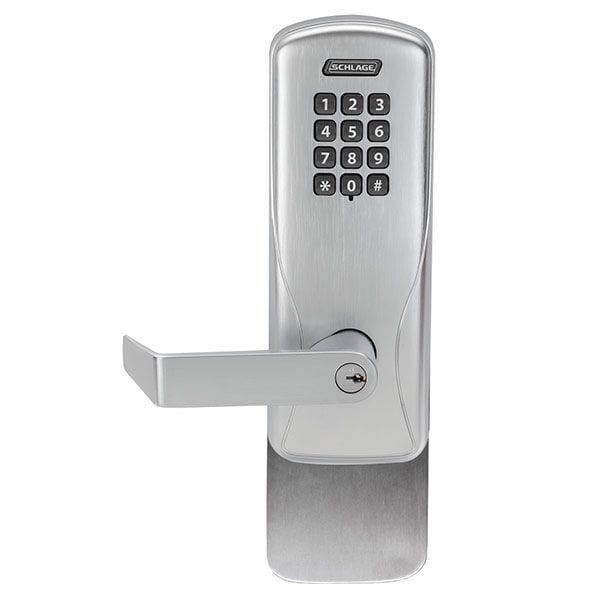

Schlage CO-100-993S-70-KP-RHO-626 Keypad Electronic SVR Exit Device Trim
The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to 9927 Series exit devices.
- 626 Satin Chrome Finish
- 4 AA batteries included – up to 2 year battery life
- Helps to minimize key distribution to ensure the integrity of the key system over time
- Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
- UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
- Key Override (Schlage C Keyway)
Brand | |
---|---|
Finishes | US26D (626) Satin Chrome, US28 (628) Anodized Aluminum |
Stile Type | Wide (Standard) |
Trim | Schlage CO-100-993S-70-KP-RHO – US26D |
Keyway | Schlage C Keyway |
Hand | Device Non-Handed – Lever Field Reversible |
ANSI Grade | Certified ANSI A156.3-2001 Grade 1 standards |
Usage | Heavy Duty |
Fire Rating | Non Rated |
Fasteners | Includes screws for metal and wood doors |
Projections | Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16" |
Center Case | 8" x 2-3/4" x 2-3/8" |
Vertical Rods | Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available) |
Length | 3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
Latchbolt | Deadlocking anti-friction top & bottom bolt, 5/8" throw |

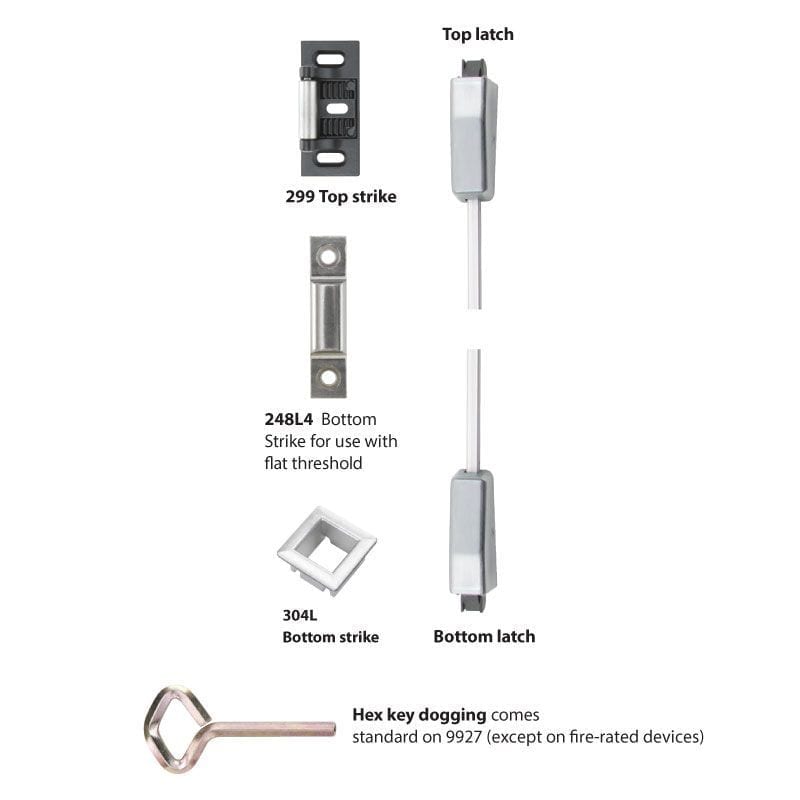

Strikes | 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold |
Dogging Feature | Half turn hex dogging standard |
Device Type | Surface Rod Device |
Door Applications | 1-3/4″ Thick Doors |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
