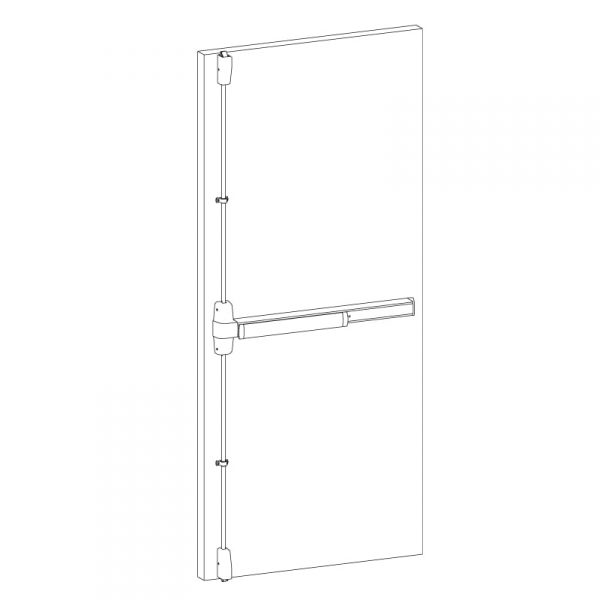

Von Duprin 9927L-NL Surface Vertical Rod Exit Device with Nightlatch Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 09 (Key Retracts Latchbolt)
  • Includes 996L-NL-06 Night Latch Lever (cylinder sold separately)

Available Options:

  • Total

Product Overview

Von Duprin 9927L-NL Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 996L-NL-R/V Trim, 06 Lever, 84″ Door Height

The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9927-F model is fire-rated for pairs of doors up to 8′ x 10′ – UL listed for fire exit hardware.

  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
  • Designed for high use and abuse in institutional applications like schools, hospitals and government facilities

996L-NL Night Latch Lever Trim

  • ANSI Function: 09
  • Rim cylinder required (sold separately)
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
Trim

996L-NL (Night Latch – Key Retracts Latchbolt)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Hand

Device Non-Handed – Lever Ships as RHR (Field Reversible)
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

9927L-NL: Non-Fire-Rated – 9927L-NL-F: UL Listed A or B label Fire-Rated (3 Hours)
Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw
Strikes

9927: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold – 9927F: 299F Top Strike, 304L Bottom Strike
Fasteners

Includes screws for metal and wood doors
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Center Case

8" x 2-3/4" x 2-3/8"
Stile Type

Wide (Standard)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Device Type

Surface Rod Device
Door Applications

1-3/4″ Thick Doors
Finishes

313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
