996L-07-US26D
996L-07-US26D

Von Duprin 996L-R/V-07 Breakaway Lever Trim for 98/99 Series Exit Device

Usually Ships: 1-2 Business Days
  • For use with 98/99 Series rim or vertical rod device
  • Key locks/unlocks lever
  • Rim cylinder required (sold separately)

Available Options:

  • Total

Product Overview

Von Duprin 996L Lever Trim, Classroom Function, Rim/Vertical Rod Devices, 07 Lever Style

The 996L Breakaway trim has become the standard lever trim offering on the 98L/99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.

  • ANSI Function: 08
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″

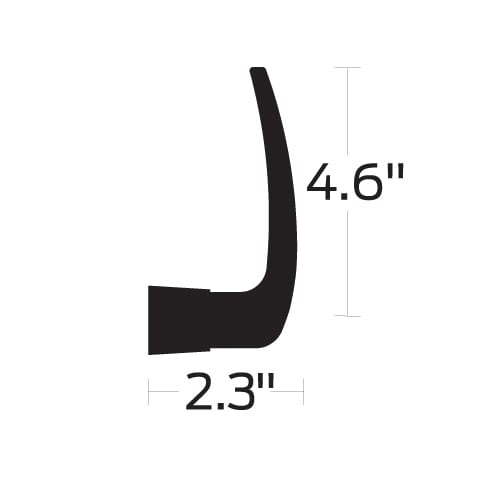

  • #07 lever style
  • Cylinder must be ordered separately – Requires 1-1/8″ Rim Cylinder

Brand

Finishes

US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US26 (625) Bright Chrome, US26D (626) Satin Chrome, SP313 (695) Dark Bronze, SPBLK (693) Black
Function

Entry / Classroom
Usage

Heavy Duty
Lever Design

07
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Hand

Field reversible-shipped RHR
ANSI Grade

ANSI Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
