Product Overview

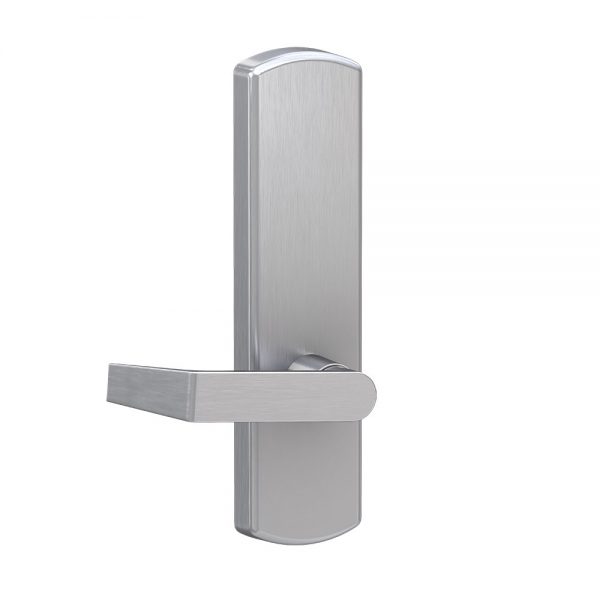

Von Duprin 996L-DT-06 Lever Trim, Dummy, 06 Lever Style
- ANSI Function: 02 – Pull When Dogged (not recommended with fire-rated devices)
- Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
- Projection: 2-7/8″
- #06 lever style furnished standard
Brand | |
---|---|
Finishes | US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US26 (625) Bright Chrome, US26D (626) Satin Chrome, SP313 (695) Dark Bronze, SPBLK (693) Black |
Function | Dummy Lever |
Hand | Field reversible-shipped RHR |
Lever Design | 06 |
ANSI Grade | ANSI Grade 1 |
Usage | Heavy Duty |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
