Von Duprin 9975L Mortise Lock Exit Device with Lever Trim

Usually Ships: 1-2 Business Days
  • Heavy Duty – BHMA/ANSI Grade-1 Certified
  • ANSI function 08 (key locks & unlocks lever)
  • Includes 996L-M-06 lever (cylinder sold separately)

Available Options:

  • Total

Product Overview

Von Duprin 9975L/9975L-F Mortise Lock Exit Device, 996L-06-M 26D Lever Trim, Classroom Function, 06 Lever Style, Satin Chrome Finish

9975 Mortise lock device for all types of single or double doors, UL listed for Panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4″.

The 7500 Mortise lock is equipped with a 3/4″ anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

  • Includes 996L lever trim
  • UL listed for panic exit hardware
  • 9975L-F UL listed for fire exit hardware
  • Fits stock hollow metal doors with 86 edge cutout

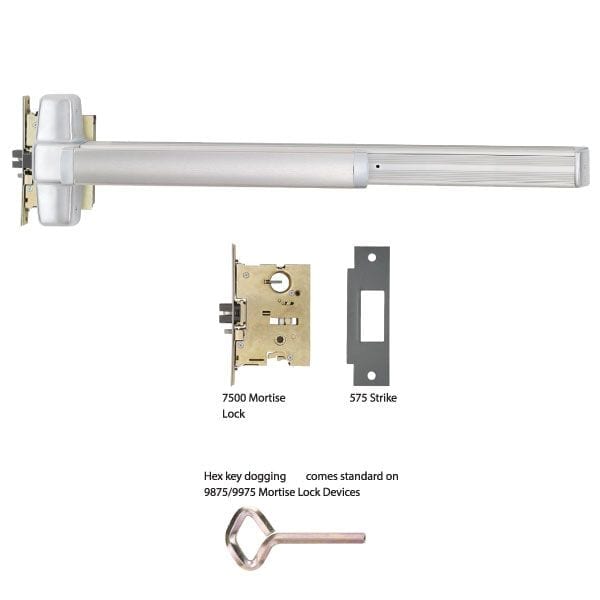

  • Includes 7500 lock body and 575 strike
  • Field reversible

996L Breakaway Lever Trim

  • ANSI Function: 08 – Key locks/unlocks lever
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard
  • Field reversible – ships as RHR
  • Requires mortise cylinder (sold separately)

Brand

Finishes

US26D (626) Satin Chrome
Trim

996L (Entry – Key Locks & Unlock Lever)
ANSI Function

F08
Cylinder

1-1/4" Mortise Cylinder (sold separately)
ANSI/BHMA Standard

ANSI A156.3 – 2008 Grade 1
Usage

Heavy Duty
Fire Rating

9975: Non-Fire-Rated – 9975-F: 3 Hour Fire-Rated
Strike

575 Strike
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Stile

4-3/4" Mimimum
Handing

Easily Re-handed in the field – Shipped as RHR
Door Applications

Metal or Wood Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
